Nokia 202 Service Schematics

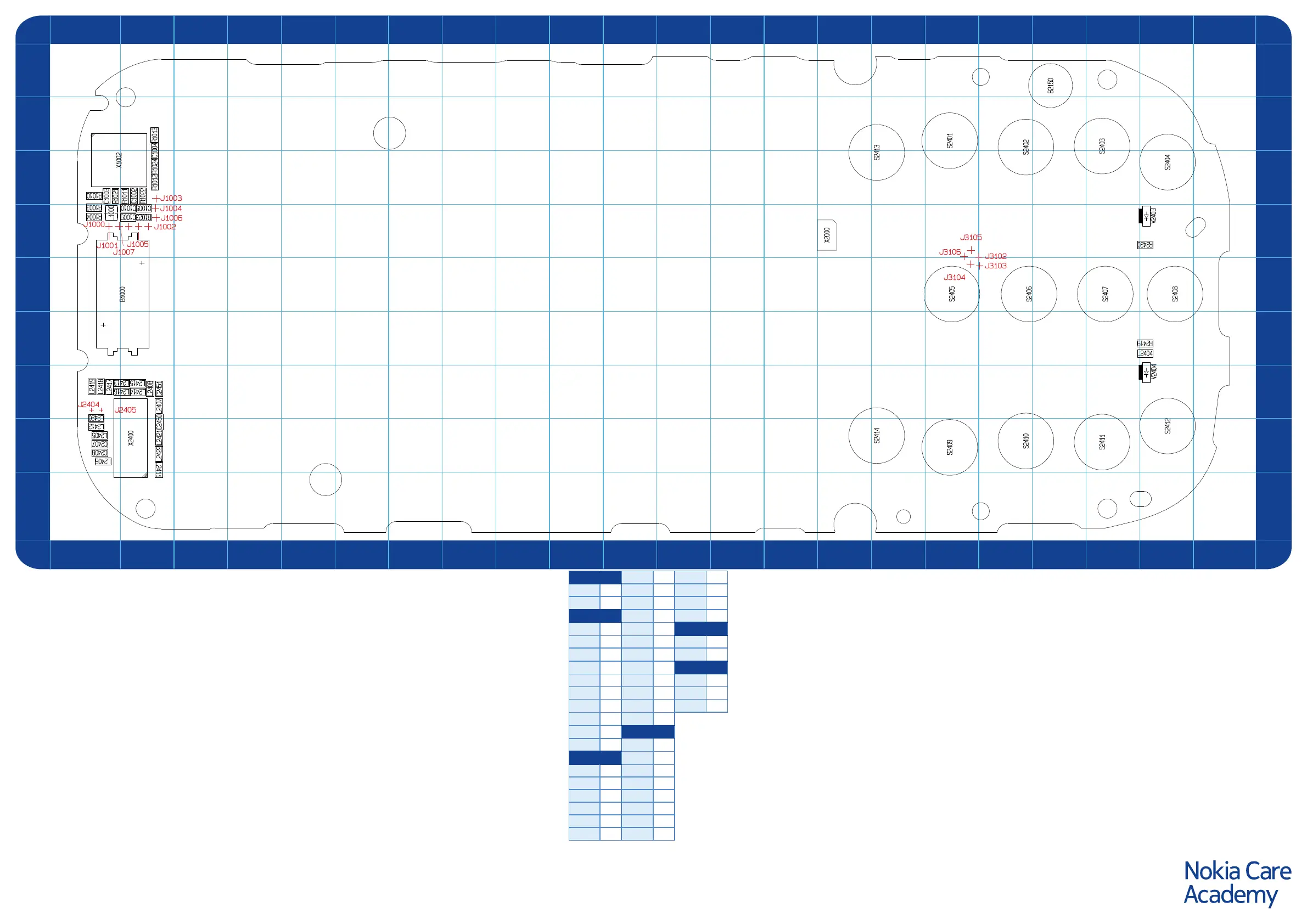

6 (7) | Component finder top
202 RM-834 | Board: 3uq_20a | v1.0 | 20.02.2012
Nokia Internal Use only | Copyright © 2012 Nokia, Only for training and service purposes
C
D
E
F
H
G
I
J
K
C
D
E
F
H
G
I
J
K
3 24568 791012 111315 141617181921 202223
3 24568 791012 111315 141617181921 202223
L2411 D22 R1023 H22
B1000 G22 L2412 D23 R1024 I22
B2150 K5 L2413 E22 R2419 F3
L2414 E22 R2420 H3
C1002 I22 L2415 E22
C1003 I23 L2416 E22 V2403 H3
C1004 J22 L2417 E23 V2404 E3
C1005 H22 L2418 E23
C1009 H22 L2419 E23 X1002 I23
C1010 H22 L2420 E23 X2000 H9
C2407 D23 L2421 D22 X2400 D22
C2408 D23 L2422 D22
C2450 D22
C2451 E22 R1003 H23
R1004 H23
L1000 H23 R1010 I23
L2404 F3 R1011 I22
L2405 D23 R1012 I22
L2406 D23 R1013 J22
L2407 E22 R1021 I23
L2408 E22 R1022 I22
B
C
L
R
V
X
