446F
6

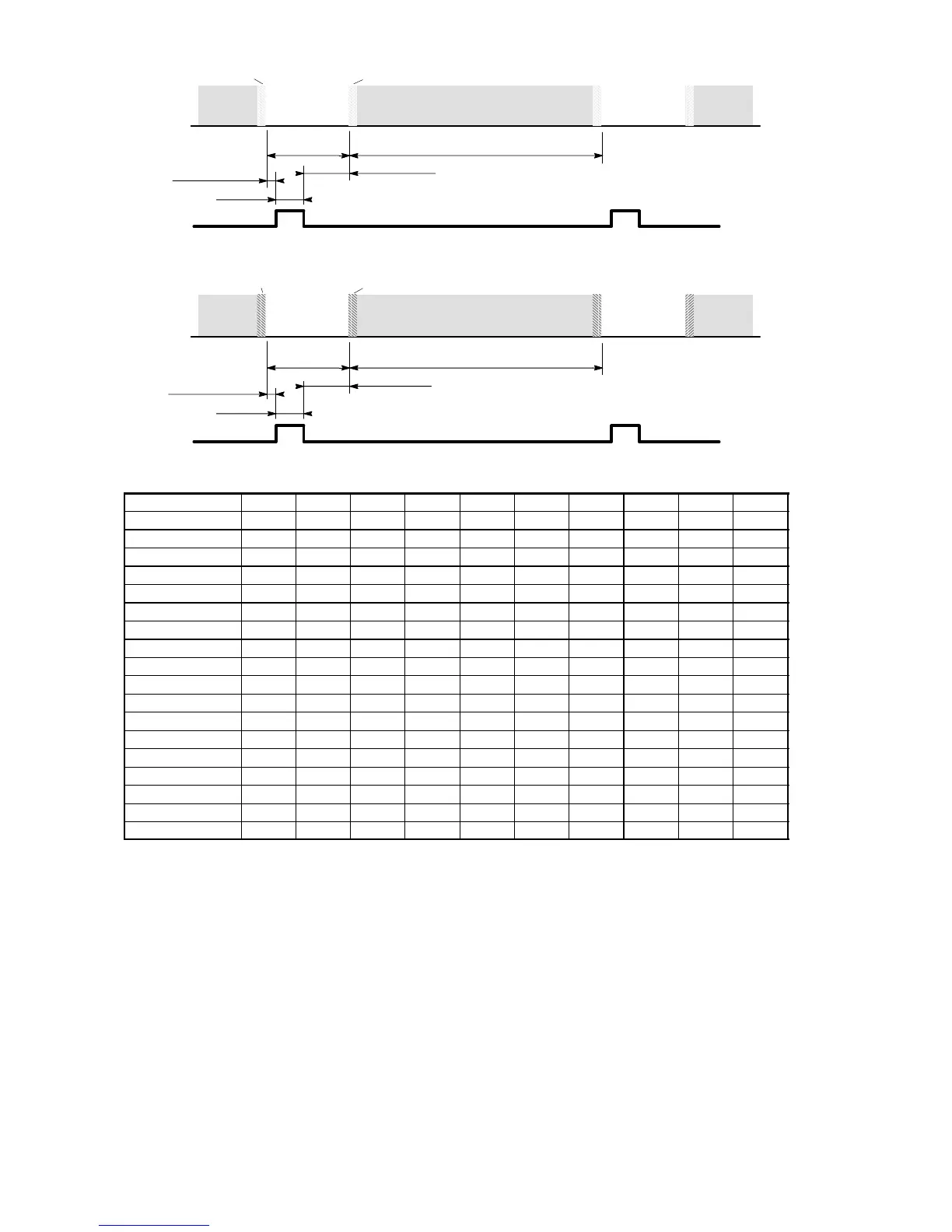

H Front Porch
Video
Full
intensity
0.7 V
Blanking 0 V
H Active Video
HSync
HBlanking
Left BorderRight Border
HBackporch
HSync.
Signal
V Front Porch
VBackPorch
Video
Full
intensity
0.7 V
Blanking 0 V
V Active Video
VSync
VBlanking
Bottom Border
Upper Border
VSync.
Signal
Display Mode no 09 10 11 12 13 14 15 16 17 18
NCE NCE300 NCE306 NCE30A NCE200D NCE012 NCE011 NCE603 NCE605 NCE700 NCE70X
VFrequency/Hz 59.9 75.0 85.0 70.1 75.0 75.1 60.0 75.0 60.0 75.0
HFrequency/kHz 31.472 37.500 43.269 31.467 67.500 68.681 63.981 79.976 74.995 93.755
HPeriod/us 31.774 26.667 23.111 31.780 14.815 14.560 15.630 12.504 13.334 10.666
Active Video/us 25.420 20.317 17.778 25.423 10.667 11.520 11.852 9.481 9.877 7.901
HResolution 640 640 640 1440 1152 1152 1280 1286 1600 1600
HSync/us 3.81 2.032 1.56 3.814 1.185 1.280 1.037 1.06 1.185 0.948
HBackPorch/us 1.91 3.810 2.22 1.907 2.370 1.440 2.296 1.84 1.883 1.501
VPeriod/lines 525 500 509 449 900 915 1066 1066 1250 1250
VResolution 480 480 480 400 864 870 1024 1024 1200 1200
VSync/lines 2 3 3 2 3 3 3 3 3 3
VBackPorch/lines 33 16 25 34 32 39 38 38 46 46
HSyncPolarity --- --- --- --- + --- + + + +
VSyncPolarity --- --- --- + + --- + + + +
H Front Porch/us 0.64 0.51 1.56 0.64 0.59 0.32 0.44 0.12 0.39 0.32
V Front Porch/lines 10 1 1 13 1 3 1 1 1 1
Dot Frequency/MHz 25.177 31.500 36.000 56.640 108.000 100.000 108.000 135.640 161.990 202.510
Interlacing no no no no no no no no no no
