Nokia ASHA 303 RM-763 User Manual

Nokia Asha 303
RM-763
Service Manual Level 1&2
9
Co nf id e nt ial | Cop yright © 2011 Nokia | A ll rights reserved
V e rs io n 1 .0

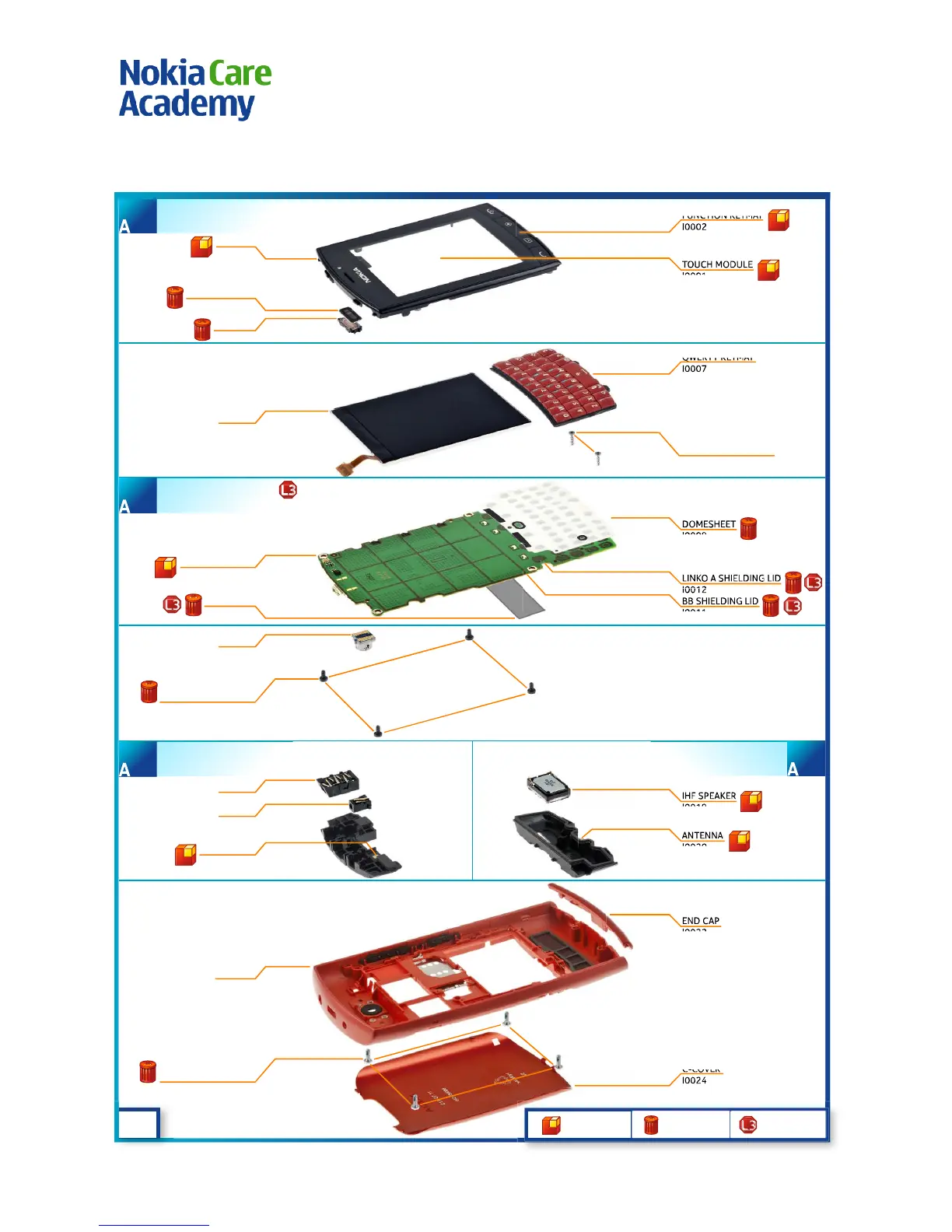

6. EXPLODED VIEW
A-COVER
I0003
EARPIECE MESH
I0004
TYPE LABEL
I0013
EARPIECE
I0005
DISPLAY
I0006
LIGHT SWAP PWB
I0010
CAMERA
I0014
DC JACK
I0016
AV JACK
I0017
B-COVER
I0021
BT/GPS FLEX
I0018
FUNCTION KEYMAT
I0002
C-COVER
I0024
QWERTY KEYMAT
I0007
TOUCH MODULE
I0001
DOMESHEET
I0009
IHF SPEAKER
I0019
END CAP
I0022
ANTENNA
I0020
BB SHIELDING LID
I0011
LINKO A SHIELDING LID
I0012
SCREW TORX+ SIZE 6
M1.4 X 1.7
I0015
SCREW TORX+ SIZE 6
M1.4 X 1.7
I0023
SCREW TORX+ SIZE 4
M1.4 X 3.6
I0008
3
3
3
3
3
3
L
L
3
3
3
3
L
L
3
3
3
L
A-COVER TOUCH ASSEMBLY
(I0001 - I0005)
1
LIGHT SWAP PACKAGE
(I0009 - I0013)
2
BT/WLAN ANTENNA MODULE
(I00016- I0018)
3
ANTENNA MODULE
(I0019, I0020)
4
v1.0
3
3
L3L3
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
