Nokia C7-00 Service Schematics

Confidential Copyright © 2011 Nokia Only for training and service purposes
Page 11 (12) |

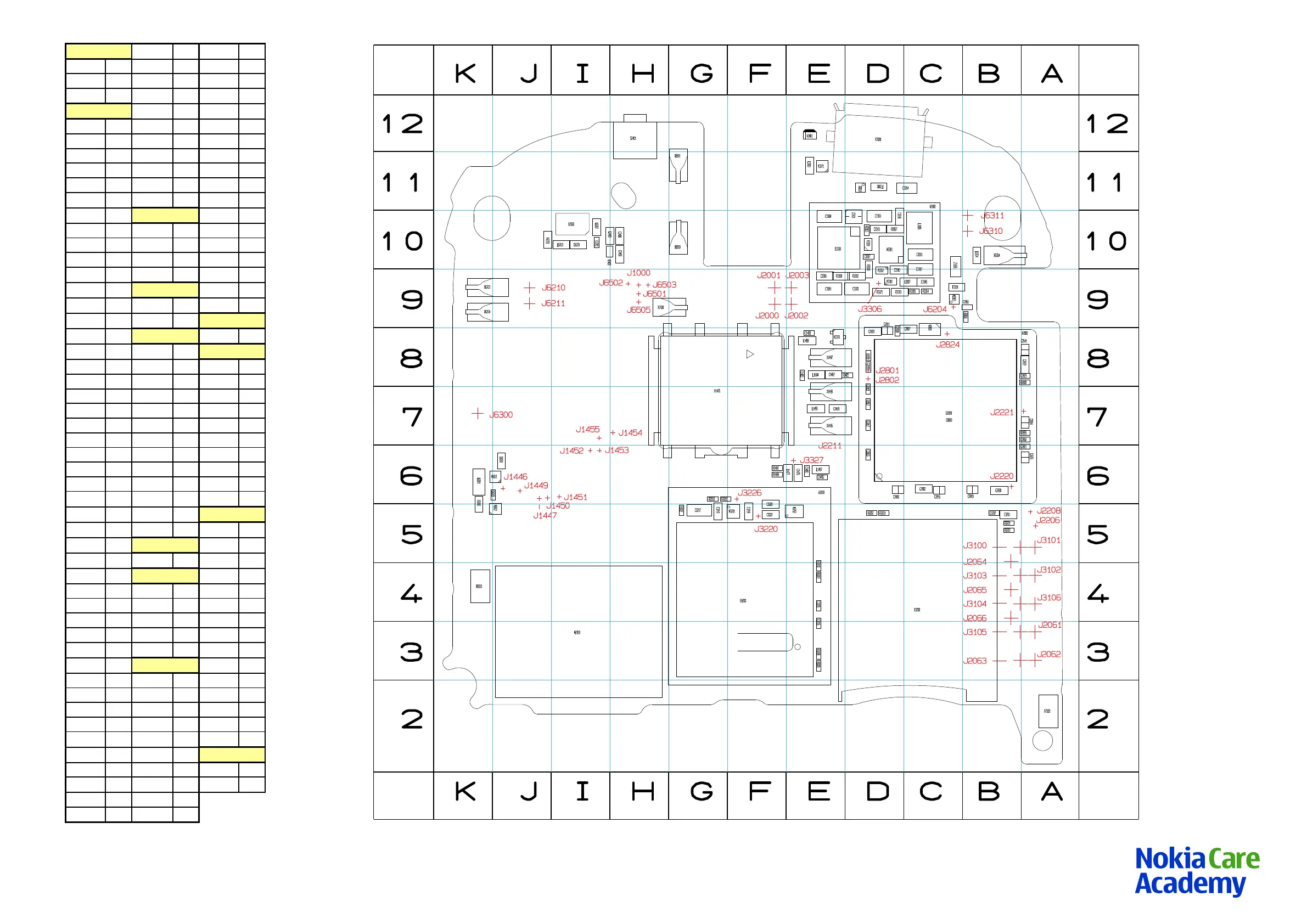

Component finder bottom | C7-00 RM-691 | Board: 3MW_02a | v1.0 | 25.02.2011
C3314 C11 R3002 G5
A2800 C7 C3318 D10 R3200 B5
A3000 F4 C334 5 C9 R3201 B5
A3100 D10 C3365 D10 R3202 D5
C3370 D9 R320 3 D5
C1479 E6 C6000 J6 R3207 E 4
C1480 E6 C6002 K6 R3208 E3
C1482 E8 C6003 J6 R3209 E 3
C1483 E8 C6213 I10 R3210 E4
C1496 E6 C6214 J10 R3300 E9
C1499 E8 C6220 I10 R3303 D10
C2400 H10 R3304 C9
C2419 E7 D2800 C7 R3305 C9
C2450 H10 D3000 C7 R3310 D9
C2802 C6 D3200 F4 R33 12 D9
C2806 D6 D3300 E10 R3367 D10
C2807 C8 R3370 D9
C2808 D8 F3300 D11 R3371 D9
C2810 B6 F3 301 C9
C2811 D8 S2401 H12
C2814 A7 L1477 E6
C2816 C6 L1497 E6 V2400 H10
C2817 D7 L1498 E8 V 2401 E12
C2818 D7 L1499 E7 V 3300 D11
C2819 D8 L1604 E8 V 3301 D10
C2820 D8 L2410 H10 V3302 D9
C2821 A6 L3300 E11 V3310 D9
C2822 A8 L3305 C10 V3370 E8
C2823 A8 L3307 C9 V3371 E11
C2825 A6 L6001 K6 V6001 J6
C2826 D6 L6202 I10 V6002 J5
C2830 B6 L6203 I10
C2841 A8 L6304 B10 X1476 G7
C2852 A7 X1496 E7
C2861 B9 M2100 I3 X1 497 E8
C3201 B5 X1498 E7
C3202 B5 N280 0 C8 X2060 I10
C3216 E3 N3201 F5 X3200 C4
C3217 G5 N3252 E5 X3300 D12
C3218 F5 N3301 D10 X6000 K4
C3
219 G5 N3303 C9 X620 3 K9
C3220 F6 X6204 K9
C3222 F5 R 1487 F6 X6304 B10
C3225 E4 R1488 F6 X6500 G10
C3301 E9 R2425 D8 X6501 G11
C3304 E10 R2800 A8 X7500 G9
C3306 E9 R2852 G6 X7503 A2
C3307 D10 R2853 G6
C3310 D9 R2855 A7 Z3301 D10
C3311 C10 R2861 B9 Z3326 C10
C3312 C9 R2867 D7
C3313 D10 R2870 D8
V
X
Z
A
C
D
F
L
M
N
R
S
