Nokia N93 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
05.Nov.2007
25
Service Manual N93 RM-55 / RM-153 Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 7.0
MGR
Page (50)

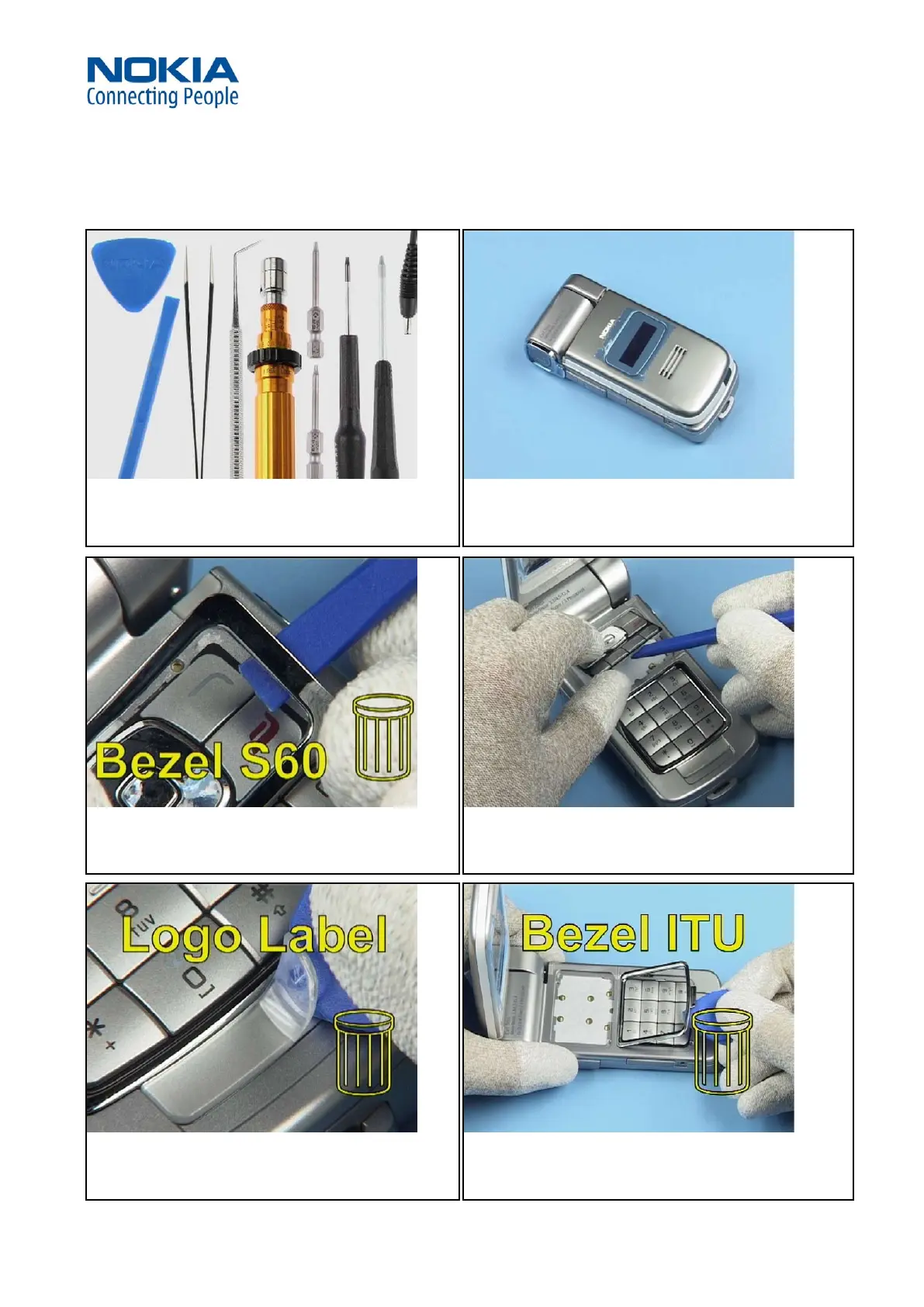

LOWER BLOCK - DISASSEMBLY9.
1. Needed tools: The SRT-6, the SS-93, metal tweezers, a dental
pic, the torque driver with a torx plus and a torx size 6 bit, a
torx plus and a torx driver size 6 and a DC plug.
2. Cover all windows with a plastic lm. Remove the battery if it
is inserted.
3. Carefully pry open the Bezel S60 with the SRT-6 and remove
it. Do not use it again.
4. Lever out the Keymat S60.
5. Release the adhered Logo Label with the SRT-6.
6. Carefully lift up the glued in Bezel ITU. Do not use it again.
