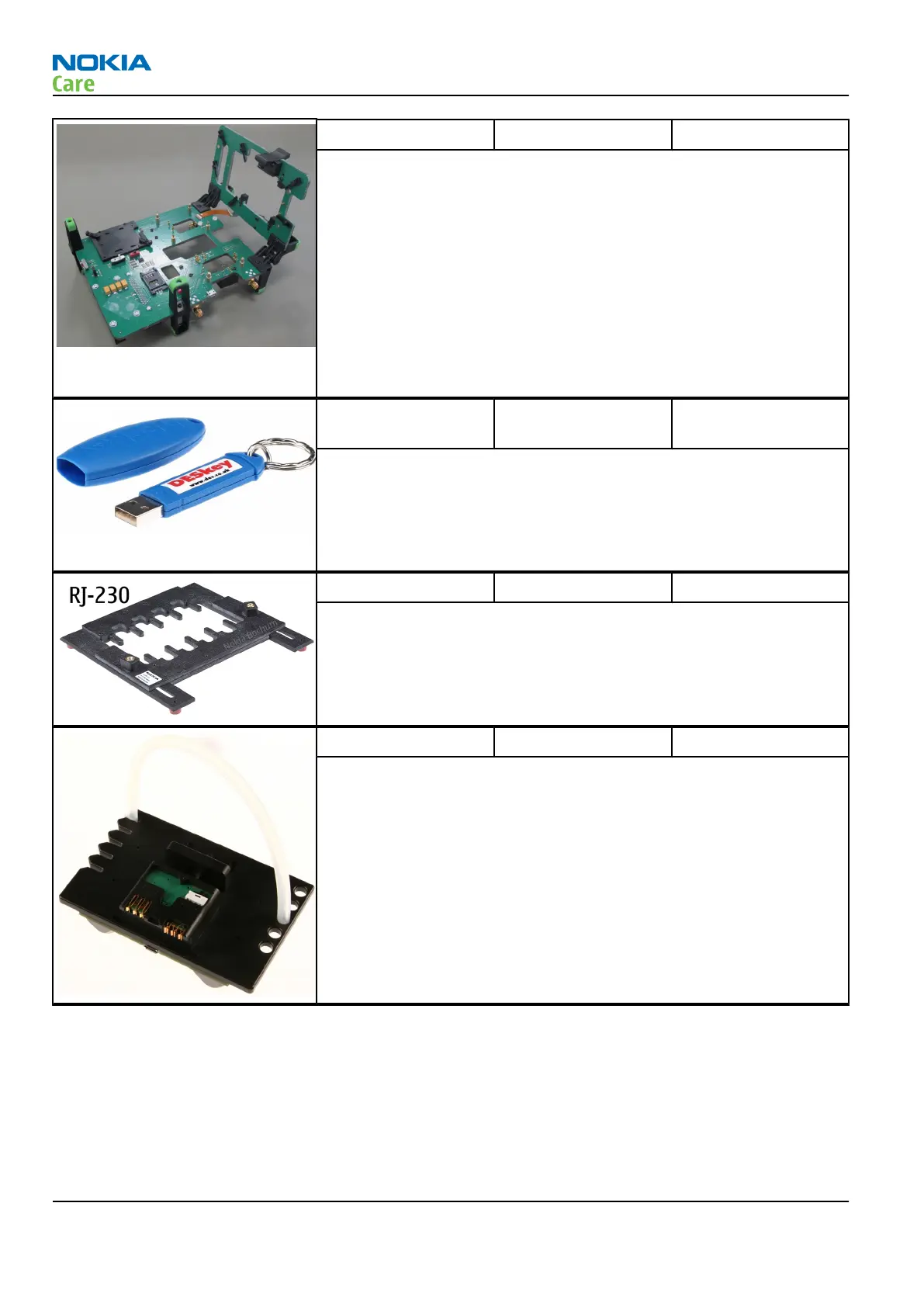

MJ-345 Module jig
Module jig MJ-345 can be used for flashing via USB and RF, battery and
system testing.
The main functions are:
•
Powering with external power
•
CU-4 interface
•
GSM/WCDMA RF-interfaces with probes
•
BSI mode selector (Tabby and Lynx interface, selected with battery
cable)
•
VBATT interface (Tabby and Lynx interface, selected with battery
cable)
PK-1 Software protection
key
PK-1 is a hardware protection key with a USB interface. It has the same
functionality as the PKD-1 series dongle.
PK-1 is meant for use with a PC that does not have a series interface.
To use this USB dongle for security service functions please register
the dongle in the same way as the PKD-1 series dongle.
RJ-230 Soldering jig
RJ-230 is a soldering jig used for soldering and as a rework jig for the
engine module.
SD-63 Dummy battery
SD-63 is designed to support mass SW flashing which enables local
mode while connecting the phone.
RM-839; RM-840; RM-841
Service Tools and Service Concepts
Page 2 – 8 NOKIA INTERNAL USE ONLY Issue 1
Copyright © 2013 Nokia. All rights reserved.
