Service Manual N610 N616 N810 Level 1&2&3 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.
12. BLUETOOTH TEST
N810
You need another Bluetooth device (e.g. 6310i) to do a GoNoGo test.
Make sure that Bluetooth is activated in the reference unit. The distance of the devices should be not more than
5m from each other.

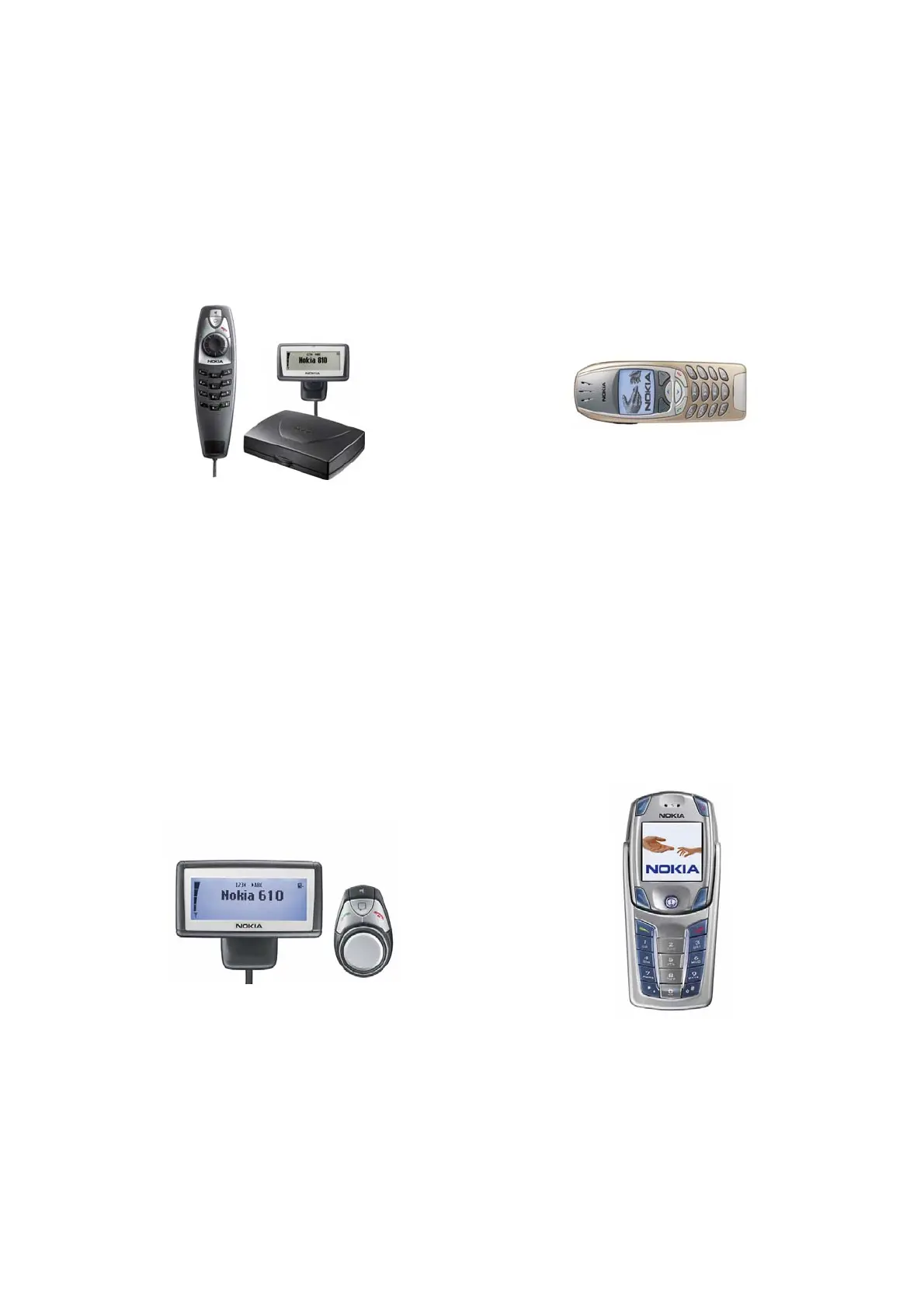

Test unit Reference unit, Bluetooth
Settings on the test unit:
• From Home Menu, push the Navi™ wheel down.
• Select Bluetooth menu by rotating the Navi™ wheel and pushing them down.
• Select Search for Bluetooth devices
Search window appears, if all Bluetooth devices in range will be displayed, the test is
successful!
Press red receiver button for Home Menu
N610/616
This device detects Bluetooth audio enhancement only. Make sure that Bluetooth is activated in the reference unit.
The distance of the devices should be not more than 5m from each other.
Test unit Reference unit, Bluetooth
Settings on the test unit:
• From Home Menu, push the Navi™ wheel down.
• Select Bluetooth menu by rotating the Navi™ wheel and pushing them down.
• Select Search for audio enhancement
Search window appears, if all audio Bluetooth devices in range will be displayed, the test is
successful!
Press red receiver button for Home Menu
