ASSEMBLY
M
ake sure that the power cord is unplugged. Assembly requires two persons.
S
et the treadmill in a cleared
area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note:
The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small
amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal con-
dition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the
lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver and
adjustable wrench .

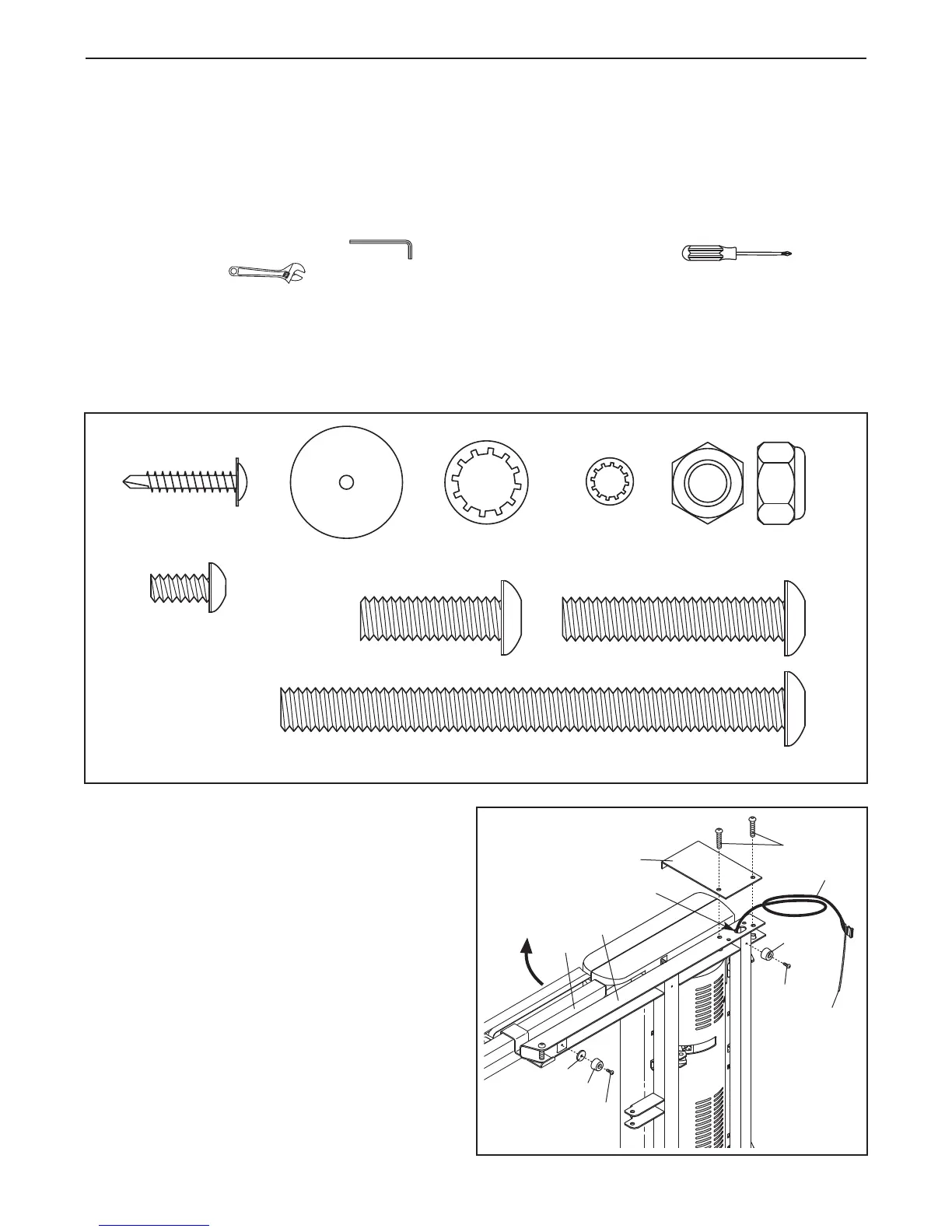

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST on page 30. The number after the parentheses is the quantity
needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to one of the parts to
be assembled.
To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may
be included.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Cut the tie securing the Upright Wire (38) to the
Base (83). Locate the tie in the indicated hole in
the Base, and use the tie to pull the Upright Wire
out of the hole.
Attach a Base Pad (81) to the Base (83) in the
location shown with a Base Pad Spacer (13) and
a 1" Tek Screw (56). Then, attach another Base
Pad (81) with only a 1" Tek Screw (56) .
83
2
56
B
A
81
3/8" Nut (8)–4
1" Tek Screw (2)–4
Base Pad Spacer
(13)–2
3
3/8" Star
Washer (9)–7
1/4" Star
Washer (10)–6
3/8" x 4 1/2" Bolt (6)–4
5
3/8" x 2" Bolt (4)–2
1/4" x 1/2"
Bolt (7)–6
3/8" x 1 1/4" Bolt (5)–3
1
81
2
38
Tie
Hole
13
To Next Page
