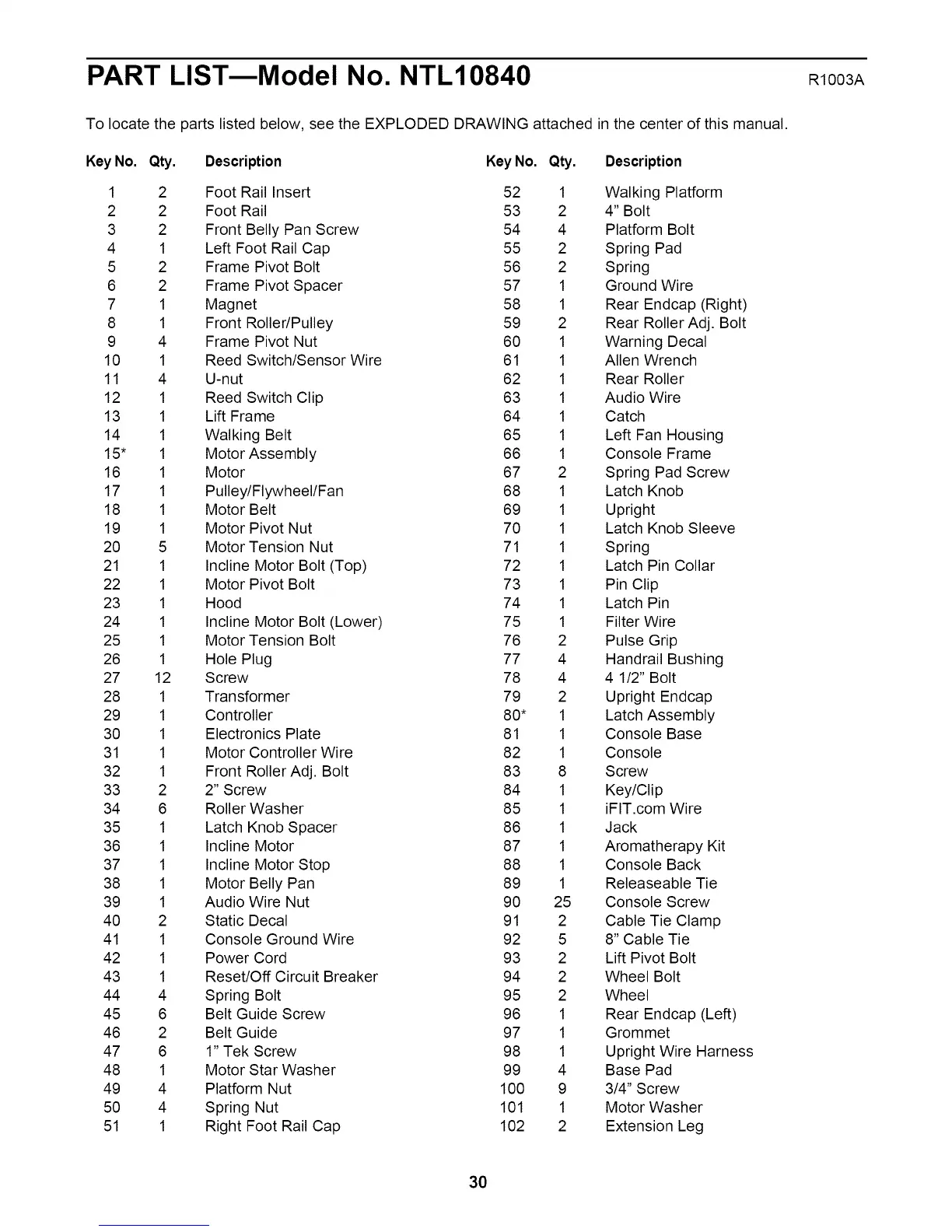

PART LISTmModel No. NTL10840 R OO3A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 2 Foot Rail Insert 52 1 Walking Platform
2 2 Foot Rail 53 2 4" Bolt
3 2 Front Belly Pan Screw 54 4 Platform Bolt
4 1 Left Foot Rail Cap 55 2 Spring Pad
5 2 Frame Pivot Bolt 56 2 Spring
6 2 Frame Pivot Spacer 57 1 Ground Wire
7 1 Magnet 58 1 Rear Endcap (Right)
8 1 Front Roller/Pulley 59 2 Rear Roller Adj. Bolt
9 4 Frame Pivot Nut 60 1 Warning Decal
10 1 Reed Switch/Sensor Wire 61 1 Allen Wrench
11 4 U-nut 62 1 Rear Roller
12 1 Reed Switch Clip 63 1 Audio Wire
13 1 Lift Frame 64 1 Catch
14 1 Walking Belt 65 1 Left Fan Housing
15" 1 Motor Assembly 66 1 Console Frame
16 1 Motor 67 2 Spring Pad Screw
17 1 Pulley/Flywheel/Fan 68 1 Latch Knob
18 1 Motor Belt 69 1 Upright
19 1 Motor Pivot Nut 70 1 Latch Knob Sleeve
20 5 Motor Tension Nut 71 1 Spring
21 1 Incline Motor Bolt (Top) 72 1 Latch Pin Collar
22 1 Motor Pivot Bolt 73 1 Pin Clip
23 1 Hood 74 1 Latch Pin
24 1 Incline Motor Bolt (Lower) 75 1 Filter Wire
25 1 Motor Tension Bolt 76 2 Pulse Grip
26 1 Hole Plug 77 4 Handrail Bushing
27 12 Screw 78 4 4 1/2" Bolt
28 1 Transformer 79 2 Upright Endcap
29 1 Controller 80* 1 Latch Assembly
30 1 Electronics Plate 81 1 Console Base
31 1 Motor Controller Wire 82 1 Console
32 1 Front Roller Adj. Bolt 83 8 Screw
33 2 2" Screw 84 1 Key/Clip
34 6 Roller Washer 85 1 iFIT.com Wire
35 1 Latch Knob Spacer 86 1 Jack
36 1 Incline Motor 87 1 Aromatherapy Kit
37 1 Incline Motor Stop 88 1 Console Back
38 1 Motor Belly Pan 89 1 Releaseable Tie
39 1 Audio Wire Nut 90 25 Console Screw
40 2 Static Decal 91 2 Cable Tie Clamp
41 1 Console Ground Wire 92 5 8" Cable Tie
42 1 Power Cord 93 2 Lift Pivot Bolt
43 1 Reset/Off Circuit Breaker 94 2 Wheel Bolt
44 4 Spring Bolt 95 2 Wheel
45 6 Belt Guide Screw 96 1 Rear Endcap (Left)
46 2 Belt Guide 97 1 Grommet
47 6 1" Tek Screw 98 1 Upright Wire Harness
48 1 Motor Star Washer 99 4 Base Pad
49 4 Platform Nut 100 9 3/4" Screw
50 4 Spring Nut 101 1 Motor Washer
51 1 Right Foot Rail Cap 102 2 Extension Leg
30
To Next Page
