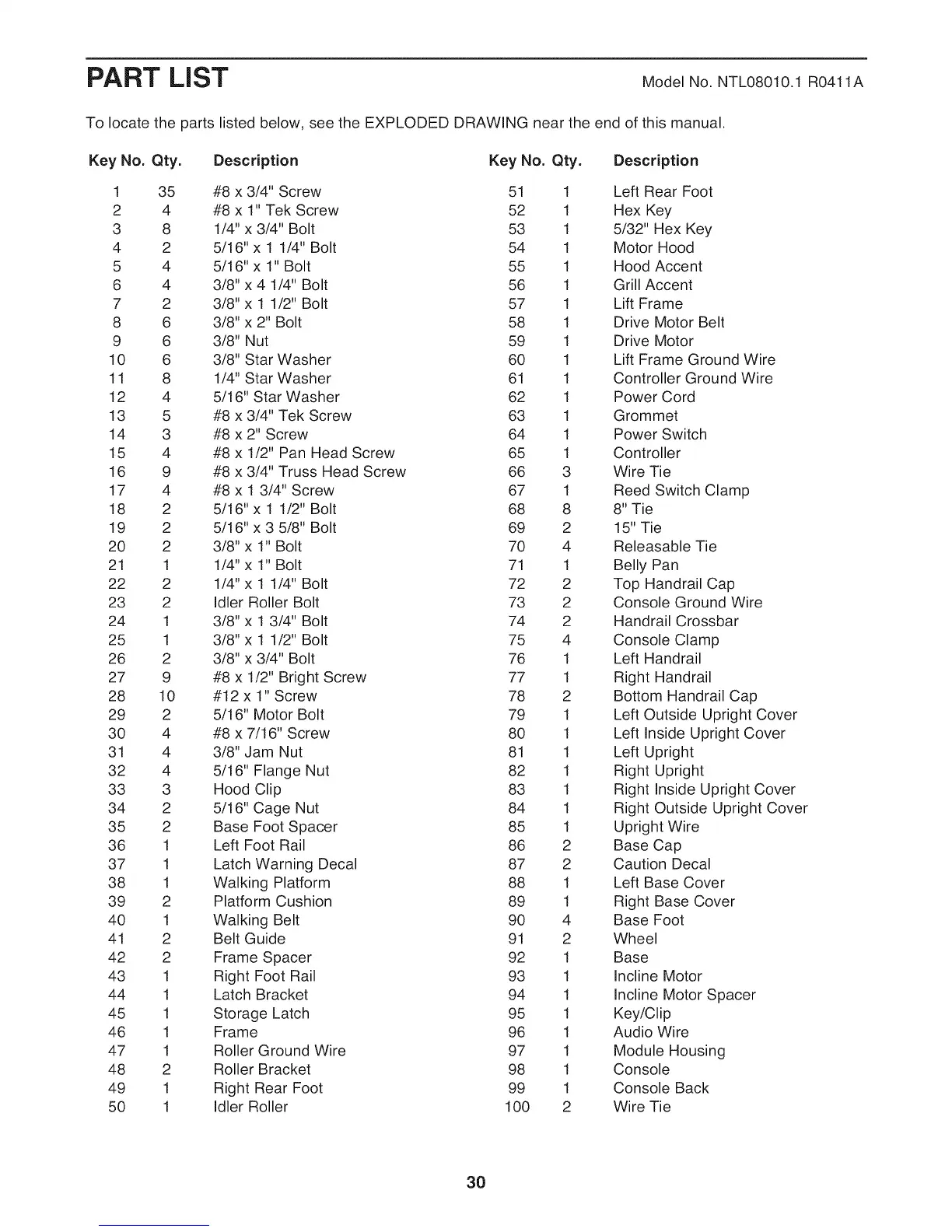

PART LIST Model No. NTL08010.1 R0411A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
1 35 #8 x 3/4" Screw 51 1 Left Rear Foot
2 4 #8 x 1" Tek Screw 52 1 Hex Key
3 8 1/4" x 3/4" Bolt 53 1 5/32" Hex Key
4 2 5/16" x 1 1/4" Bolt 54 1 Motor Hood
5 4 5/16"x 1" Bolt 55 1 Hood Accent
6 4 3/8" x 4 1/4" Bolt 56 1 Grill Accent
7 2 3/8" x 1 1/2" Bolt 57 1 Lift Frame
8 6 3/8" x 2" Bolt 58 1 Drive Motor Belt
9 6 3/8" Nut 59 1 Drive Motor
10 6 3/8" Star Washer 60 1 Lift Frame Ground Wire
11 8 1/4" Star Washer 61 1 Controller Ground Wire
12 4 5/16" Star Washer 62 1 Power Cord
13 5 #8 x 3/4" Tek Screw 63 1 Grommet
14 3 #8 x 2" Screw 64 1 Power Switch
15 4 #8 x 1/2" Pan Head Screw 65 1 Controller
16 9 #8 x 3/4" Truss Head Screw 66 3 Wire Tie
17 4 #8 x 1 3/4" Screw 67 1 Reed Switch Clamp
18 2 5/16" x 1 1/2" Bolt 68 8 8" Tie
19 2 5/16" x 3 5/8" Bolt 69 2 15" Tie
20 2 3/8" x 1" Bolt 70 4 Releasable Tie
21 1 1/4" x 1" Bolt 71 1 Belly Pan
22 2 1/4" x 1 1/4" Bolt 72 2 Top Handrail Cap
23 2 Idler Roller Bolt 73 2 Console Ground Wire
24 1 3/8" x 1 3/4" Bolt 74 2 Handrail Crossbar
25 1 3/8" x 1 1/2" Bolt 75 4 Console Clamp
26 2 3/8" x 3/4" Bolt 76 1 Left Handrail
27 9 #8 x 1/2" Bright Screw 77 1 Right Handrail
28 10 #12 x 1" Screw 78 2 Bottom Handrail Cap
29 2 5/16" Motor Bolt 79 1 Left Outside Upright Cover
30 4 #8 x 7/16" Screw 80 1 Left Inside Upright Cover
31 4 3/8" Jam Nut 81 1 Left Upright
32 4 5/16" Flange Nut 82 1 Right Upright
33 3 Hood Clip 83 1 Right Inside Upright Cover
34 2 5/16" Cage Nut 84 1 Right Outside Upright Cover
35 2 Base Foot Spacer 85 1 Upright Wire
36 1 Left Foot Rail 86 2 Base Cap
37 1 Latch Warning Decal 87 2 Caution Decal
38 1 Walking Platform 88 1 Left Base Cover
39 2 Platform Cushion 89 1 Right Base Cover
40 1 Walking Belt 90 4 Base Foot
41 2 Belt Guide 91 2 Wheel
42 2 Frame Spacer 92 1 Base
43 1 Right Foot Rail 93 1 Incline Motor
44 1 Latch Bracket 94 1 Incline Motor Spacer
45 1 Storage Latch 95 1 Key/Clip
46 1 Frame 96 1 Audio Wire
47 1 Roller Ground Wire 97 1 Module Housing
48 2 Roller Bracket 98 1 Console
49 1 Right Rear Foot 99 1 Console Back
50 1 Idler Roller 100 2 Wire Tie
30
