Noritz EZ98DV User Manual

8

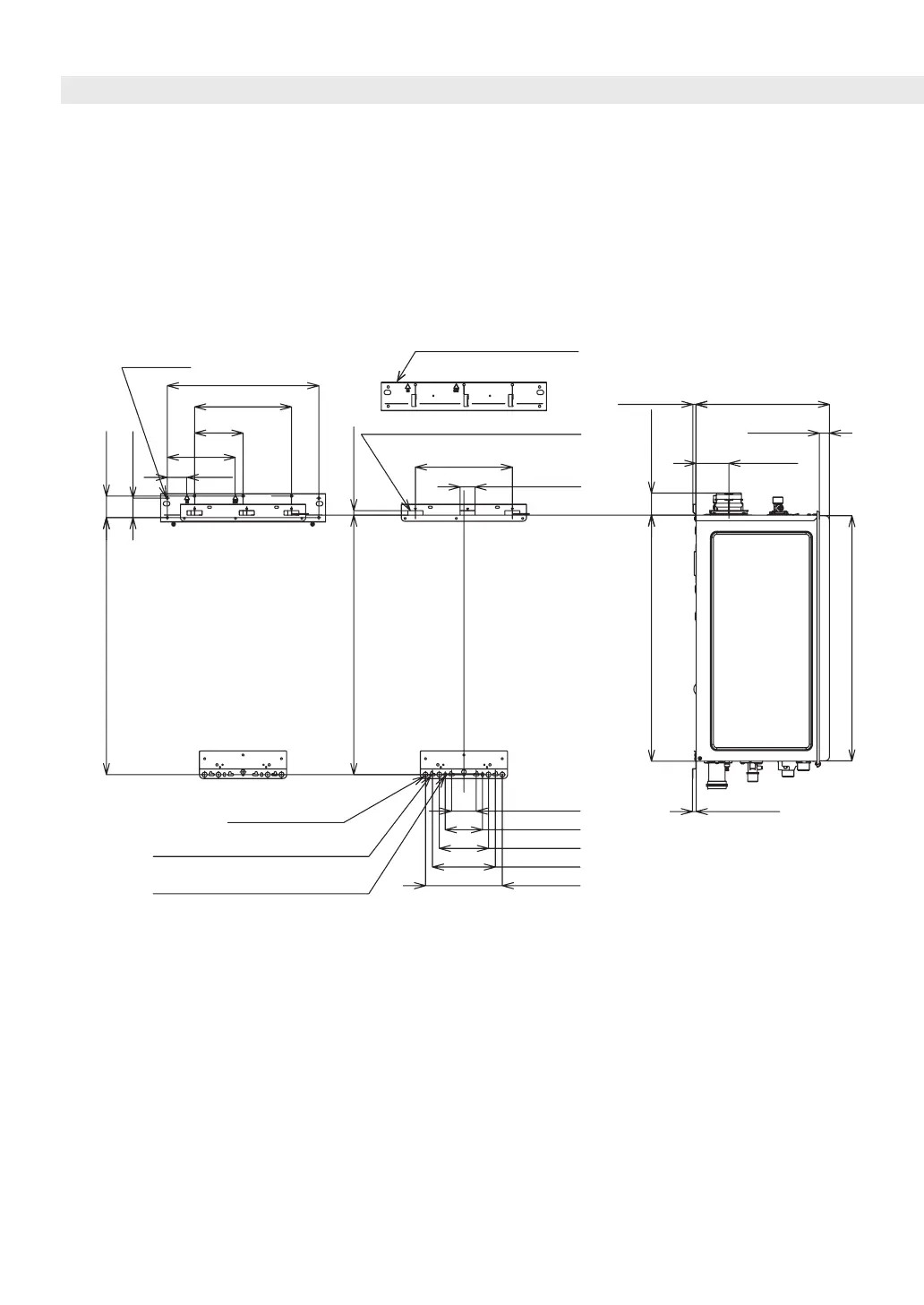

2.4 Dimensions
11.2”[284]
0.3”[8] 14.1”[359]
27.4”[696]
2.3”[59]
(VIEW FROM BOTTOM)
(AC120V)
16.0”[406]
10.2”[260]
5.1”[130]
2.3”[58]
2.0”[52]
27.1”[690]
0.5”[12]
3×0.5”[12]×1.6”[40]RECTANGLE HOLE
10.2”[260]
1.6”[40]
2.2”[56]
3.9”[100]
5.2”[132]
6.7”[169]
8.1”[206]
4×Φ0.5”[Φ13]
2×0.4”×0.24”[10×6]OBLONG HOLE
4×0.24”×0.6”[6×15]OBLONG HOLE
0.4”[10]
26.0”[661] 25.9”[658]
1.1”[27]
3.5”[89]
HOT WATER OUTLET(3/4”)
WATER DRAIN VALVE
(WATER FILTER)
COLD WATER INLET(3/4”)
WATER DRAIN VALVE
17.8”[452]
14.2”[362]
8.7”[220]
2.4”[60]
27.0”[687]
AIR INLET FLUE COLLAR
I.DΦ2.4”[Φ61]I.DΦ2.4”[Φ61]
10.5”[266]5.1”[130]
18.5”[471]
17.8”[451]
WIRING THROUGHWAY
CONDENSATE DRAIN(1/2”)
GAS INLET(3/4”)
WATER DRAIN VALVE
WIRING THROUGHWAY
9.7”[246]
11.3”[288]
1.7”[42]
5.7”[144]
2.2”[56] 3.3”[83] 6.0”[152]
15.4”[392]
15.6”[397]
WALL MOUNTING BRACKET
(INCLUDED ACCESSORY)
7.2”[183]
2.1”[5.3]
7×Φ0.2”[Φ6]
