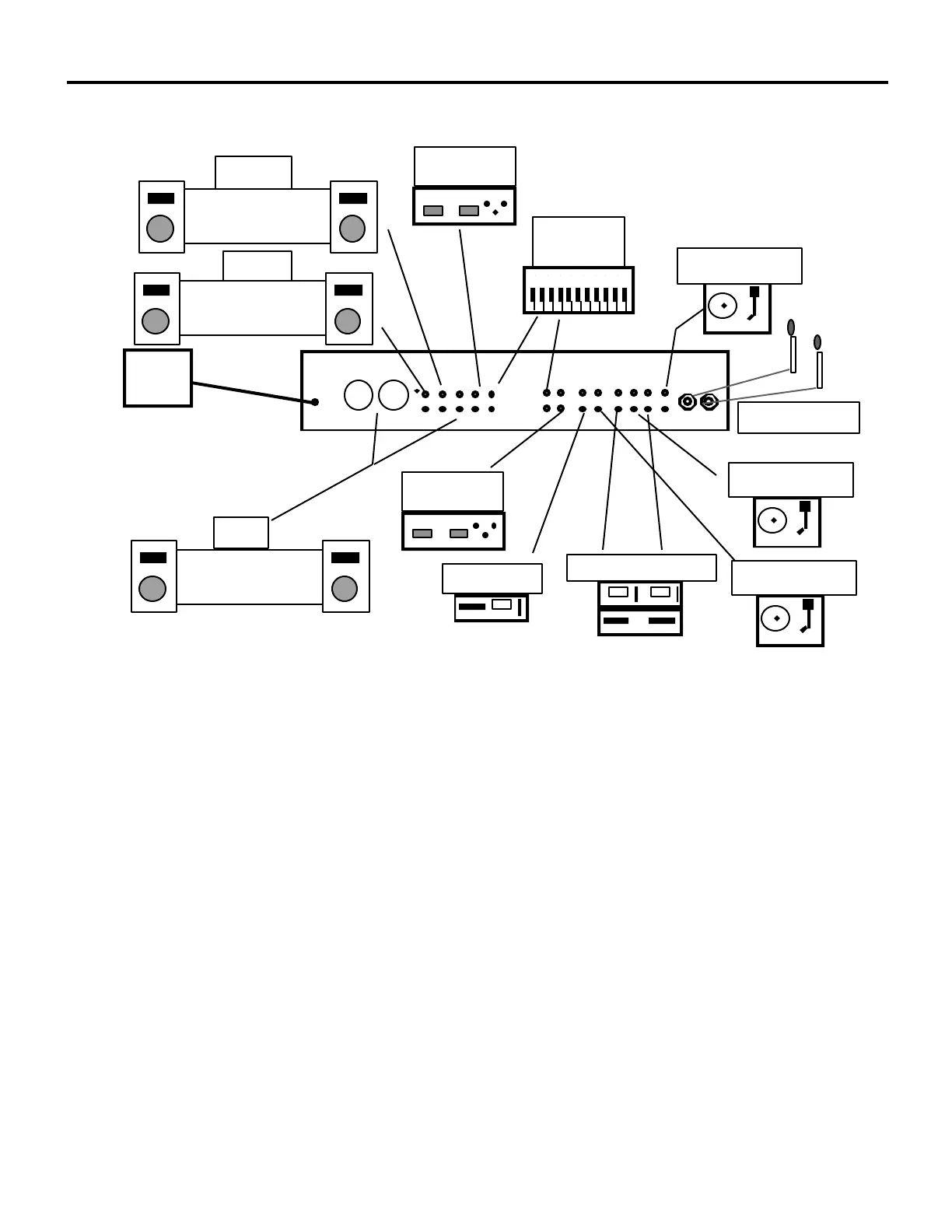

DM1835X Instructions for Connection and DIAGRAM...
CD Player
Turntable 2
Sound System
w/ Amplifier
Tape Deck
Sound System
w/ Amplifier
AC
Outlet
Zone 1
Main
Sampling
Keyboard
Turntable 1
Tape Deck
Microphones
Turntable 3
Sound System
w/ Amplifier
Zone 2
Dual CD Player
1. Be sure the POWER (22) is OFF. All connections should be made before the unit is turned on. Always remember
“Turn Amps on last and off first!”
2. Use appropriate cables throughout your system: quality shielded audio cables, low capacitance preferred. Speaker
cable must be 14-gauge minimum; 12- or 10-gauge is better.
3. Connect your music sources on the rear of the unit. Up to 3 phono and 8 line sources (CD players, cassette decks,
tuners, etc.) can be connected. When connecting to an input with a phono/line option switch remember to set the
switch accordingly.
4. Connect the ground wire from your turntables (and any other sources that come with a ground) to the ground post on
the rear panel. This will eliminate most common hum and feedback problems.
5.
Connect your DJ mic on the front left side of the unit (23) or on the back of the unit at Mic 1. Connect your second mic at
Mic 2 on the back of the unit.
6. Connect your headphones on the front right side of the unit at (14).
7. The OUTPUT MASTER jacks on the rear of the unit are for connecting to the amplifier. Use the balanced outputs if
possible. Make sure you correctly attach the right and left cables to avoid phasing problems.
Numark - The Proven Leader in DJ Technology
©1997 Numark Industries 17 http://www.numark.com
