DM1200/DM1235/DM1285
1
4
5
3
2
7
8
9
9 9
7 7
7
7
8
10
11

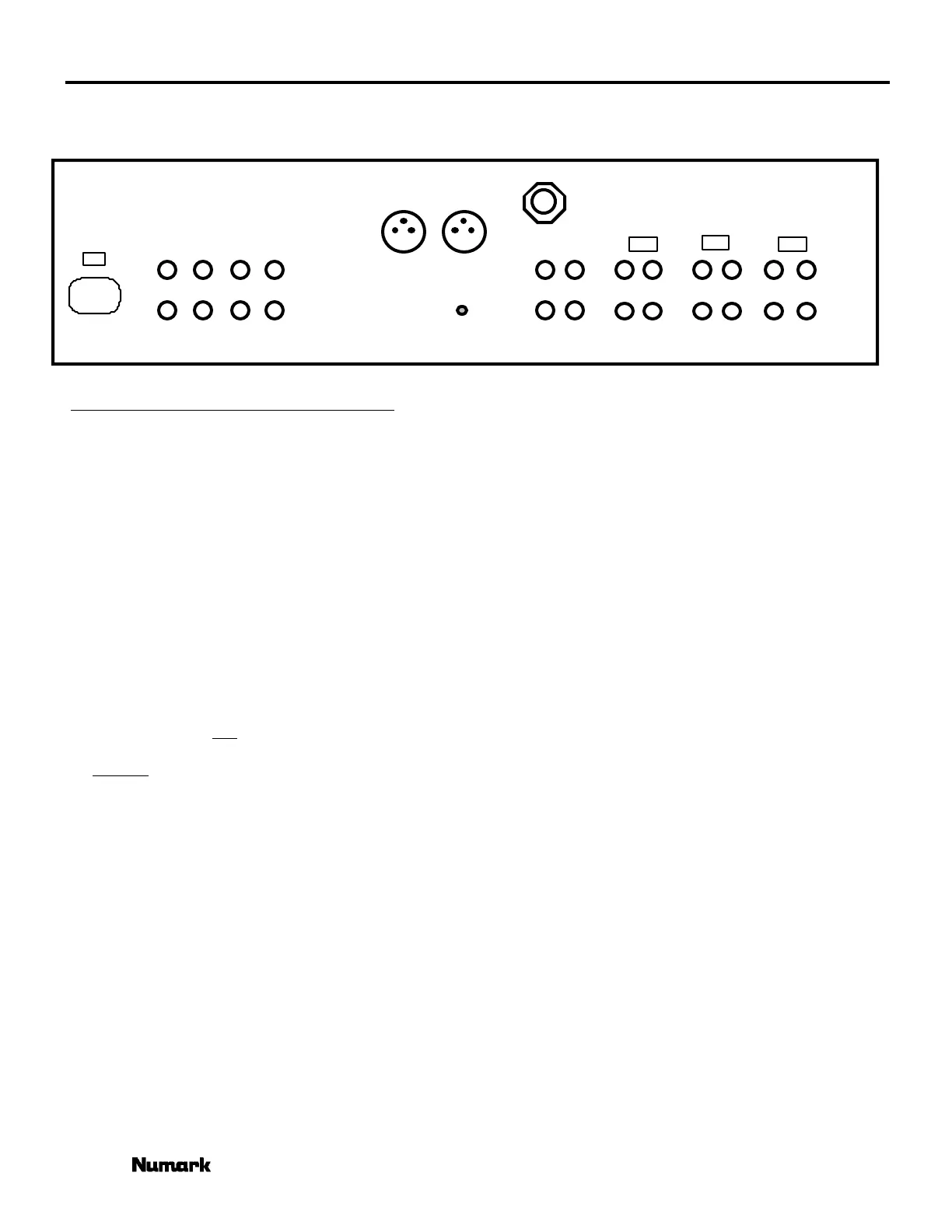

DM1200/DM1235/DM1285 REAR PANEL DIAGRAM ...
REAR PANEL: INPUTS AND OUTPUTS
1. Power Connector. Plug in power cord here and check the voltage level to match your country’s standard.
2. GND is the grounding lug for turntables 1, 2 and 3 (phono inputs on Channels 1, 2 and 3). Always use this
connection (your turntable cable should have a grounding wire).
3. The Stereo Main Outputs are low-impedance RCA connectors controlled by the Master fader.
4. The Stereo Zone Outputs are low-impedance unbalanced RCA jacks controlled by the Zone Level control.
5. The Tape Outputs are low-impedance unbalanced RCA jacks which output the program mix and allow you to
connect any recording device.
6. The Send can be attached to an external effects processor such as a sampler.
7. Channels 1-5 Line Inputs are unbalanced RCA jacks. The Line Input is selected with the toggle switch on the
front panel. You can connect stereo audio from HiFi VCRs, cassette and reel-to-reel tape decks, DAT machines, CD
players, laser discs, tuners, even synthesizers or other mixing consoles.
NOTE: Plug mono audio sources into both Left and Right inputs using a “Y” cable connector.
8. Line/Phono Input switch. Use this to allow line level equipment to be plugged into your phono inputs giving
you a total of 8 line input options.
9. Phono Inputs on Channels 1, 2 and 3 use unbalanced RCA jacks. Your input signal is fed directly to the
DM1200's high-quality RIAA phono pre-amplifiers so use this position only for moving magnet cartridges. Line level
sources will overload the sensitive phono pre-amps and will sound very bad, so always be sure to toggle the
line/phono switch over to line before connection of line sources.
10. The Balanced Main Outputs are low-impedance XLR type connectors controlled by the Master fader.
11. Mic 2 is the mic input for Channel 4.
Numark - The Leader in DJ Technology
©1998 Industries 16 http://www.numark.com
