Numark MIXTRACK3 Service Manual

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
D D
C C
B B
A A
Check REV Description
Title:
Size
A2
Number Revision
Date :
File Name:
Sheet of
Design By :
DATEDesignApproval
WHEEL+3.3V
WHEEL+3.3V WHEEL+3.3V
SEN300
DIPH574
SEN301
DIPH574
Q304
2SC2412KSM
Q305
2SC2412KSM
7 1
84
IC300A
ICSN74LVC3G14
26
IC300B
ICSN74LVC3G14
53
IC300C
ICSN74LVC3G14
JOGL-1 JOGL-2
C312
10uF
D302
1N4148
D303
1N4148
1
2 3
Q302
2SK1828
Q300
MBT4403
1
2 3
Q303
2SK1828
Q301
MBT4403
DGND
DGND
WHEEL+3.3V
C305
10uF
D+5V
DGND DGND
DGND
PGND
C306
0.1uF
C308
0.1uF
R337
10K
R336
100K
R340
10K
R339
10K
C313
0.1uF
R333
100
R334
100
R342
75
R343
75
R341
560
R338
560
R344
22K
R345
22K
R332
68K
C314
47pF

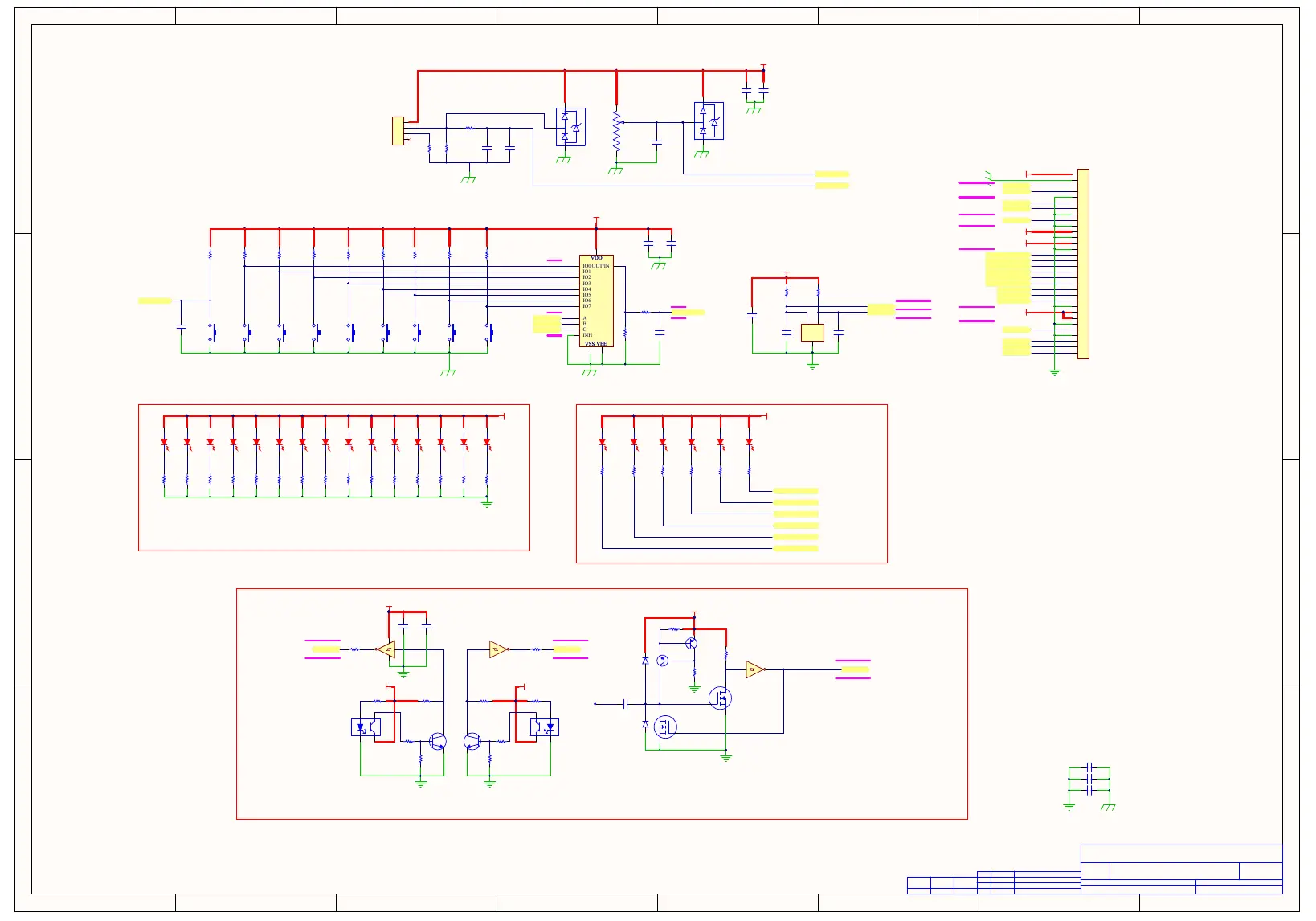

WHEEL CIRCUIT
Fun-Key CIRCUIT
VR CIRCUIT
KEY LED
MT300
TOUCH-L
A
1
B
2
C
3 ENC300
BEAT
VR+3.3V
PGND
C301
10uF
PGND
PGND
D+5V
DGND
WHEEL LED
C302
0.1uFC304
0.1uF
PITCH-L
FSR-L
KEY-L
LED-WHEEL-L
LED-BEAT-L
LED-FX3-L
LED-FX2-L
LED-FX1-L
R304
10K
R305
10K
C300
0.1uF
DGND
BEAT-L-1
BEAT-L-2
SW+3.3V
C309
0.01uF
C310
0.01uF
VR+3.3V
PGND
C307
0.1uF
TOUCH-L
LED300
1
2
3
VR300
10KB
1
2
3
4
FCN300
TO FSR
Vn
3
Vp
2
CH1
1
D301
PGND
Vn
3
Vp
2
CH1
1
D300
PGND
LED312
SAMPLE
LED-SAMPLE-L
R302
47K
R301
390
R300
1K
C303
47nF
SW300
SHIFT
SW301
SAMPLE
SW302
PITCH-
SW303
PITCH+
SW304
BEAT
SW305
FX3
SW306
FX2
SW307
FX1
SW308
WHEEL
LED301 LED302 LED303 LED304 LED305 LED306 LED307 LED308 LED309 LED310 LED311 LED313
FX1
LED314
FX2
LED315
FX3
LED316
BEAT
LED317
WHEEL
1 1
NKCD\NKCE L-Fun
2015.01.21
PC14C031A
VR+3.3V
D+5V
PGND
DGND
PITCH-L
LED-BEAT-L
LED-FX3-L
LED-FX2-L
LED-FX1-L
JOGL-1
JOGL-2
TOUCH-L
BEAT-L-1
BEAT-L-2
SW+3.3V
FSR-L
WHEEL+3.3V
LED-WHEEL-L
LED-SAMPLE-L
R320
750
R321
750
R322
750
R323
750
R324
750
R325
750
R326
750
R327
750
R328
750
R329
750
R330
750
R331
750
R314
1K
R315
1K
R316
1K
R317
1K
R318
1K
R319
1K
CC301 0.1uF
CC302 0.1uF
CC303 0.1uF
DGND PGND
SHIFT-L
ADDR_A1
ADDR_A2
ADDR_A0
KEY-L
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
FCN301
TO L-FUN PCB FCN4
PGND
ADDR_A1
ADDR_A2
ADDR_A0
AGND
AGND
AGND
AGND
AGND
IO4
1
IO6
2
OUT/IN
3
IO7
4
IO5
5
INH
6
7
VEEVEE
8
VSSVSS
C
9
B
10
A
11
IO3
12
IO0
13
IO1
14
IO2
15
16
VDDVDD
IC301
74HC4051
R335
0
R346
1M
R306
10K
R307
10K
R308
10K
R309
10K
R310
10K
R311
10K
R312
10K
R313
10K
R303
10K
C311
10pF
SHIFT-L
0
LED318
R347
750
LED319
R348
750
LED320
R349
750
