NuTone 770F User Manual

2
3
9
770F
Rev.
MAY
2002
EFFECTIVE
DATE
PRODUCT
GROUP
FAN
MODEL NUMBER
PARTS LIST
CURRENT
ORIGINAL
REPLACEMENT
REF.
PART NO.
PART DESCRIPTION MODEL USED ON
PART NO.
1 0684B POWER UNIT ASSEMBLY 770F 0684B-000
2 87547 MOTOR 770F 87547-000
3 68739 BLOWER WHEEL 770F 68739-000
4 88730 REFLECTOR ASSEMBLY 770F 88730-000
5 30652 DUCT ADAPTER ASSEMBLY 770F 30652-000
6 85315 GRILLE AND LENS ASSEMBLY 770F 85315-000
7 16133 WING NUT 770F 16133-000
8 10034 FAN RECEPTACLE 770F 10034-000
9 82304 LIGHT RECEPTACLE 770F 82304-000
10 89108 LENS 770F 891 08-000
11 85316 GRILLE 770F 85316-000
12 85978 LAMPHOLDER 770F 85978-000
13 89378 BALLAST 770F 89378-000
14 88555 REFLECTOR 770F 88555-206
NOTE: Always order by
current part number
NuTone
Attn: Parts Department
4820 Red Bank Road
Cincinnati, OH 45227-1599
Phone: (513) 527-5426
Fax: (513) 527-5173

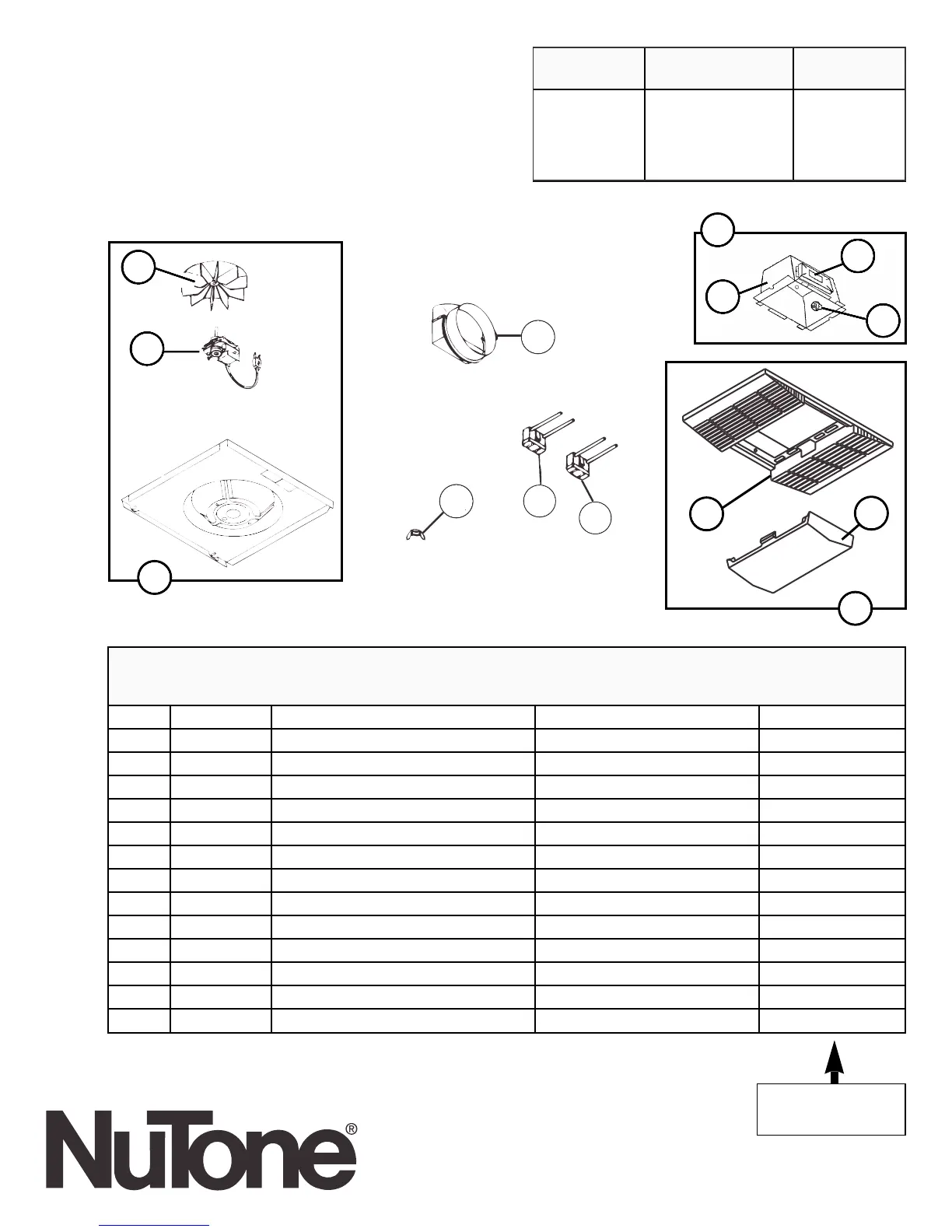

770F I.I.
8
8
5
7
3
6
1
2
3
12
7
4
14
12
13
11
10
