Overview
Tesla K10 GPU Accelerator BD-06280-001_v05 | 2
External Connectors
None
Internal Connectors and Headers
One 6-pin PCI Express power connector
One 8-pin PCI Express power connector
Memory
Memory clock: 2.5 GHz
Interface: 256-bit
● Total board memory: 8 GB (4 GB per GPU)
● 32 pieces of 128M × 16 GDDR5, SDRAM (per GPU)
BIOS
2Mbit Serial ROM
TESLA K10 BLOCK DIAGRAM

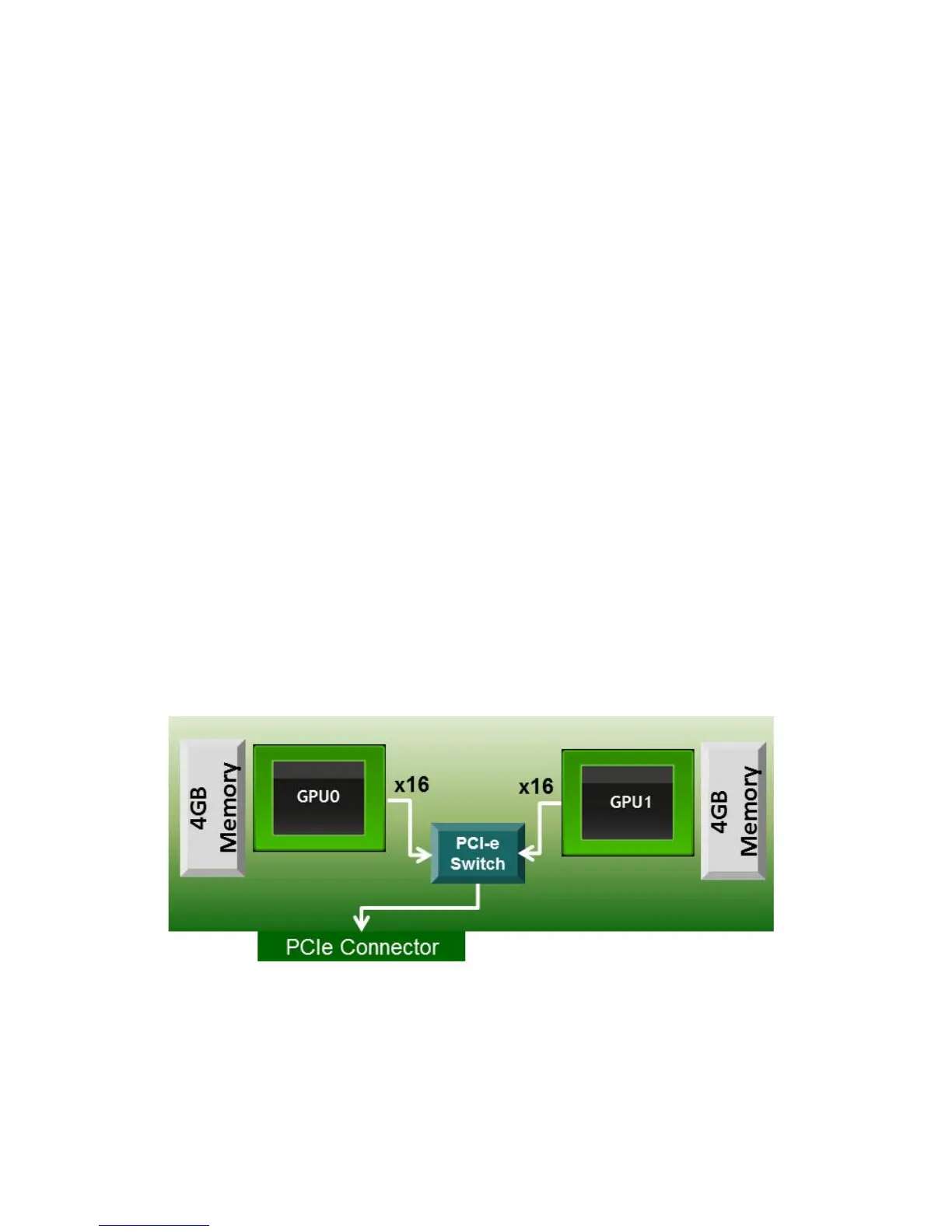

Figure 1 is the block diagram for Tesla K10 GPU accelerator. It comprises two identical
GK104 GPUs, each with 4 GB of GDDR5 memory. The GPUs are connected via a PCI
Express switch. The board supports PCI Express Gen3.
Figure 1. Tesla K10 Block Diagram
