Replacing consumable items> 89
R
EPLACING
THE
BELT
UNIT
The belt unit is located under the four image drums. This unit
requires replacement approximately every 60,000 pages.
Switch off the printer and allow the fuser to cool for about
10 minutes before opening the cover.
1. Press the cover release and open the printer’s top cover
fully.

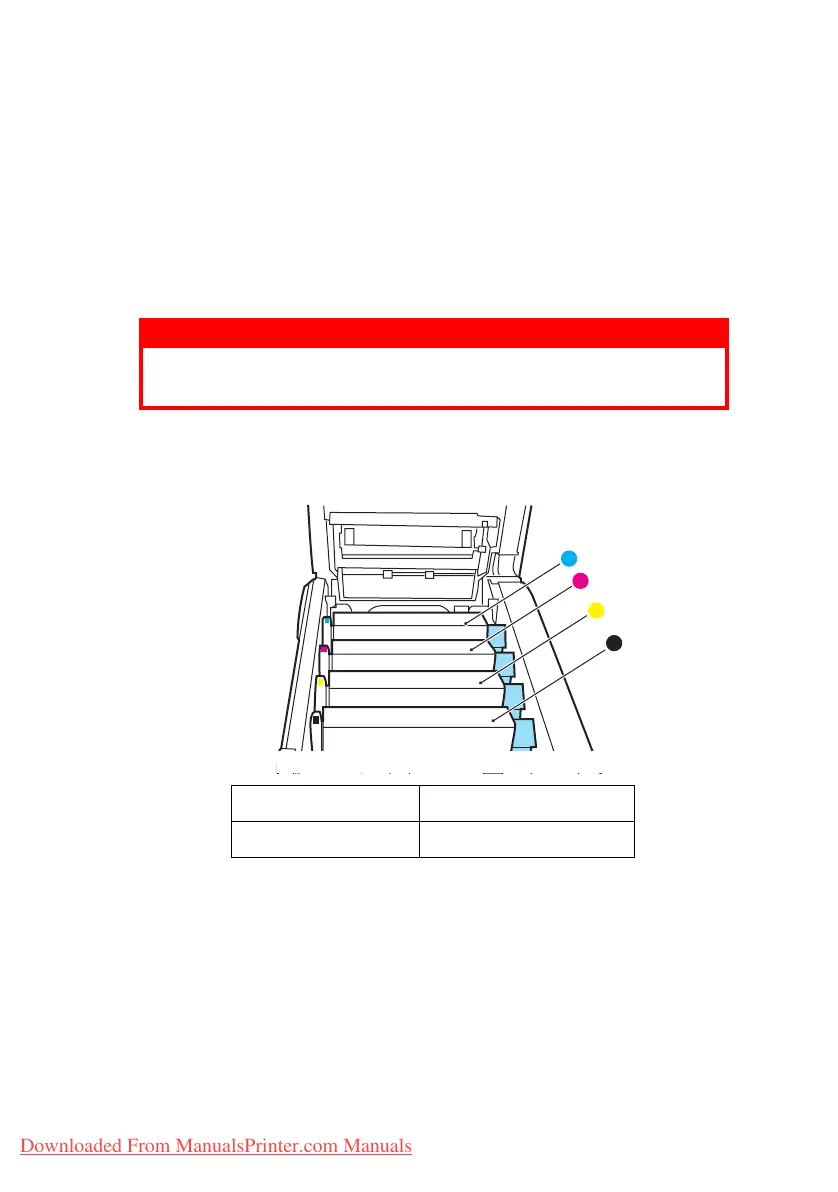

2. Note the positions of the four cartridges. It is essential
that they go back in the same order
WARNING!
If the printer has been powered on, the fuser will be hot.
This area is clearly labelled. Do not touch.
1
2
3
4
1. Cyan cartridge 2. Magenta cartridge
3. Yellow cartridge 4. Black cartridge
