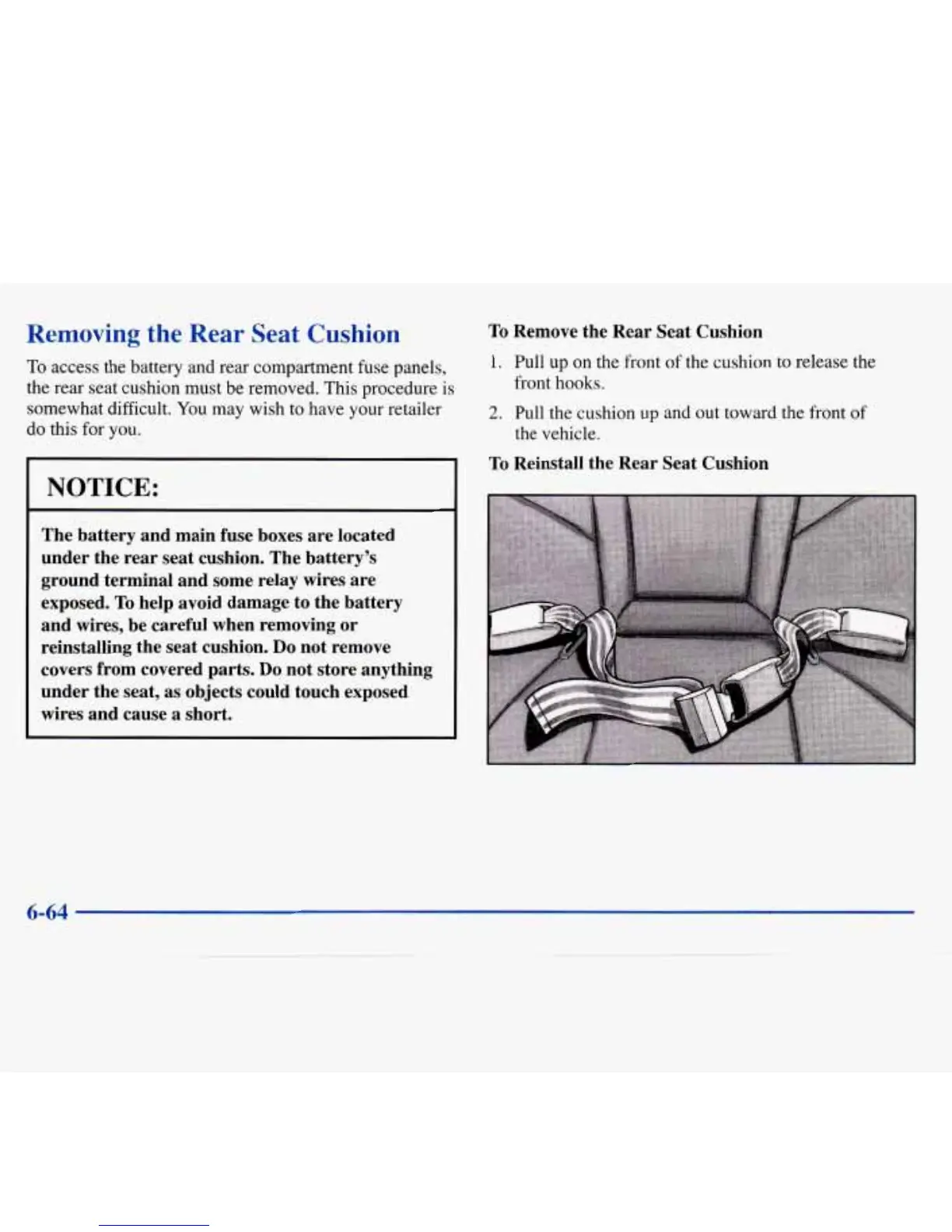

Removing
the
Rear
Seat
Cushion
To
access the battery and rear compartment fuse panels,
the rear seat cushion must be removed. This procedure is
somewhat difficult. You may wish to have your retailer
do this for you.
NOTICE:
The battery and main fuse boxes are located
under the rear seat cushion. The battery’s
ground terminal and some relay wires are
exposed.
To
help avoid damage
to
the battery
and wires, be careful when removing or
reinstalling the seat cushion.
Do
not remove
covers from covered parts.
Do
not store anything
under the seat, as objects could touch exposed
wires and cause a short.
To
Remove the Rear Seat Cushion
1.
Pull up on the front
of
the cushion to release the
front hooks.
2.
Pull the cushion
up
and
out
toward the front of
To
Reinstall
the
Rear Seat Cushion
the vehicle.
6-64
