App.
84

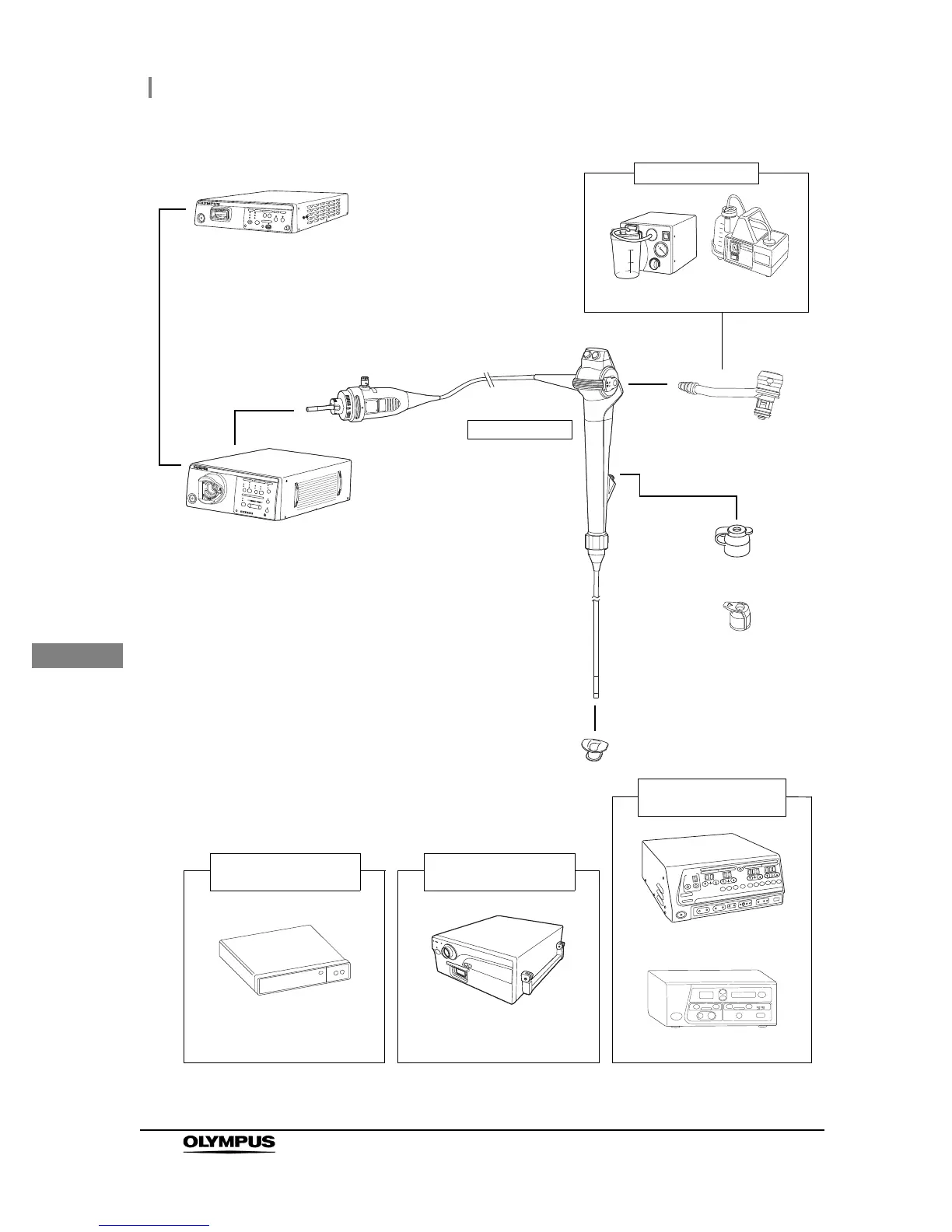

Combination equipment
BF-190 Series OPERA
TION MANUAL
Suction valve (MAJ-207
*2
),
Single use suction valve
(MAJ-209)
Suction pump
s
SSU-2
KV
-5
Electrosurgical units
*1
EVIS EXERA III
video system center (CV
-190)
EVIS EXERA III
xenon light source (C
L
V
-190)
Endoscopic
ultrasound center
*1
EU-M30S, EU-M60, EU-MA,
EU-ME1, EU-M2000
*2
Argon plasma
coagulati
on unit
*1
UES-30
*2
, UES-40
*2
PSD-30, PSD-60, ESG-100
ENDOPLASMA
*2
Mouthpiece (MA-651)
Biopsy valve (MD-495
*2
)
*1
Except BF-XP190
*2
These products may not be available in some areas.
Single use bi
ops
y valve
(MAJ-210)
Endoscope
BF-XP190,
BF-P190,
BF-Q190,
BF-H190,
BF-1TH190
89
91
Table of Contents
Default Chapter
3
Default Chapter
3
Table of Contents
3
Symbols
7
Important Information - Please Read before Use
8
Intended Use
8
Applicability of Endoscopy and Endoscopic Treatment
8
Instruction Manual
9
User Qualifications
9
Instrument Compatibility
10
Reprocessing before the First Use/Reprocessing and Storage after Use
10
Spare Equipment
10
Maintenance Management
10
Prohibition of Improper Repair and Modification
11
Signal Words
11
Warnings and Cautions
12
Warnings and Cautions: Disappeared or Frozen Endoscopic Image
17
Examples of Inappropriate Handling
18
Chapter 1 Checking the Package Contents
19
Checking the Package Contents
19
Packaged Items for the Americas, Europe, Australasia, Middle East, and Africa
20
Packaged Items for Countries Other than the Americas, Europe, Australasia, Middle East, and Africa
21
Chapter 2 Instrument Nomenclature and Specifications
23
Nomenclature and Functions
23
Control Section, Insertion Section
24
Endoscope Connector
27
Specifications
28
Environment
28
Specifications
29
Chapter 3 Preparation and Inspection
33
The Workflow of Preparation and Inspection
33
Preparation of the Equipment
35
Inspection of the Endoscope
36
Inspection of the Bending Mechanism
39
Inspection of the Insertion Tube Rotation Mechanism
41
Inspection of Accessories
42
Inspection of the Suction Valve (MAJ-207) or Single Use Suction Valve (MAJ-209)
42
Inspection of the Biopsy Valve (MD-495)
43
Inspection of the Single Use Biopsy Valve (MAJ-210)
44
Inspection of the Mouthpiece (MA-651)
45
Series OPERATION MANUAL
46
Attaching Accessories to the Endoscope
46
Attaching the Suction Valve (MAJ-207) or the Single Use Suction Valve (MAJ-209)
46
Attaching the Biopsy Valve (MD-495) or Single Use Biopsy Valve (MAJ-210)
47
Inspection of Ancillary Equipment
48
Connection of the Endoscope and Ancillary Equipment
48
Connection to the Light Source
48
Connection of the Suction Tube
49
Inspection of the Endoscopic System
50
Inspection Summary
50
Inspection of the Ancillary Equipment
50
Inspection of the Endoscopic Image
50
Inspection of the Remote Switches
52
Inspection of the Water Feeding Function
53
Inspection of the Suction Function
54
Inspection of the Instrument Channel
55
Chapter 4 Operation
57
Warnings and Cautions: Operation
57
Insertion
59
Holding and Manipulating the Endoscope
59
Insertion of the Endoscope
60
Observation of the Endoscopic Image
62
Angulation of the Distal End
62
Operation of the Insertion Tube Rotation
63
Feeding Fluids
64
Suction
65
Using Endotherapy Accessories
66
Insertion of Endotherapy Accessories into the Endoscope
67
Operation of Endotherapy Accessories
70
Withdrawal of Endotherapy Accessories
70
High-Frequency Cauterization Treatment
71
Argon Plasma Coagulation (APC)
73
Laser Cauterization
75
Ultrasonic Observation
76
Bronchoalveolar Lavage
77
Withdrawal of the Endoscope
78
Transportation of the Endoscope
79
Transporting Within the Hospital
79
Transporting Outside the Hospital
79
Chapter 5 Troubleshooting
81
Troubleshooting
81
Troubleshooting Guide
82
Image Quality or Brightness
82
Water Feeding
83
Suction
83
Endotherapy Accessories
84
Others
84
Withdrawal of the Endoscope with an Irregularity
85
Withdrawal When the WLI and NBI Endoscopic Images Appear on the Monitor
85
Withdrawal When Either the WLI or the NBI Endoscopic Image Does Not Appear on the Monitor
86
Withdrawal When no Endoscopic Image Appears on the Monitor or a Frozen Image Cannot be Restored
86
Returning the Endoscope for Repair
87
Appendix
89
Combination Equipment
89
System Chart
89
Reprocessing Equipment
91
Compatible Endotherapy Accessories
92
EMC Information
98
