30

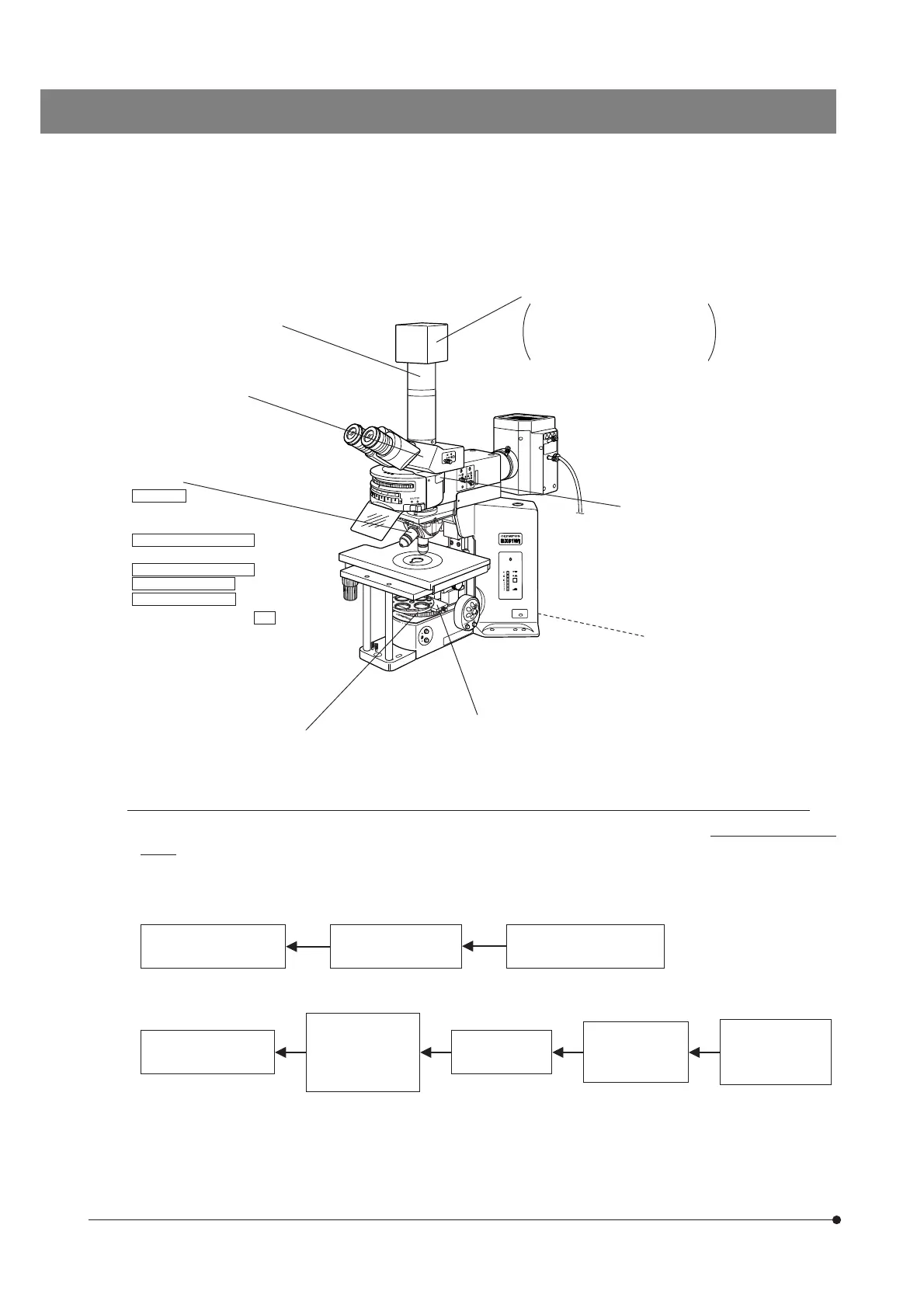

3. To enable IR observation, the following modules should be replaced with those based on the IR specifications.
TV adapter
(Note)
Analyzer
WI-ANIR or
WI-ANTIR
(to be used together with the U-KPA)
(Note) Notes for combination of the TV adapter, intermediate attachment and observation tube
When an observation tube other than the U-TR30IR is used, select the TV adapter by referring to combinations a) to d)
below.
# With IR observation, the combination with the U-PMTVC or U-DPT cannot manifest full performance.
a) Combination for observing a wide field (direct image 1X)
Direct image adapter
U-TV1X
Mount adapter
One of 5 models*
TV camera
(IR specification model)
b) Combination for magnified observation of objective image (2X, 2.5X or 3.3X) ** The PE4X and PE5X cannot be used.
Straight photo tube
U-SPT
PE photo lens
One of PE2X,
PE2.5X and
PE3.3X**
1X TV adapter
U-PMTV1X
Mount adapter
One of 5
models*
TV camera
(IR specification
model)
* The mount adapter should be one of: 1) U-CMAD3 mount adapter; 2) U-BMAD bayonet mount adapter; 3) U-IMAD
Ikegami camera mount adapter; 4) U-SMAD Sony camera mount adapter; 5) combination of U-FMT F/T mount + U-TMAD
T-mount adapter.
Note) When the contrast is enhanced rather excessively by an image processor, the central area of the monitored image
may be made bright and noticeable.
Trinocular tune
U-TR30IR
U-ETR3
U-TR30-2
Objectives
· MPlan5X
· LMPlanFl10XW/20XW
· LUMPlanFl40XW
· LUMPlanFl40XW/IR-2
· LUMPlanFl60XW
· LUMPlanFl60XW/IR-2
· LUMPlanFl100XW
· XLUMPlanFl20XW
Objectives enclosed in are
usable with 900 nm IR rays.
(Note) The LUMPlanFl40XW/IR
and LUMPlanFl60XW/IR
cannot be used.
Polarizer
32POIR
IR filter
32BP775 or 32IR900
Lamp housing
U-LH100IR
Thermal reflection filter
45SCF
IR TV camera
Video contrast device such as
the ARGUS10.20 by Hamamatsu
Photonics, monochrome video
monitor
To Next Page
