9-2 Assembly procedures
1

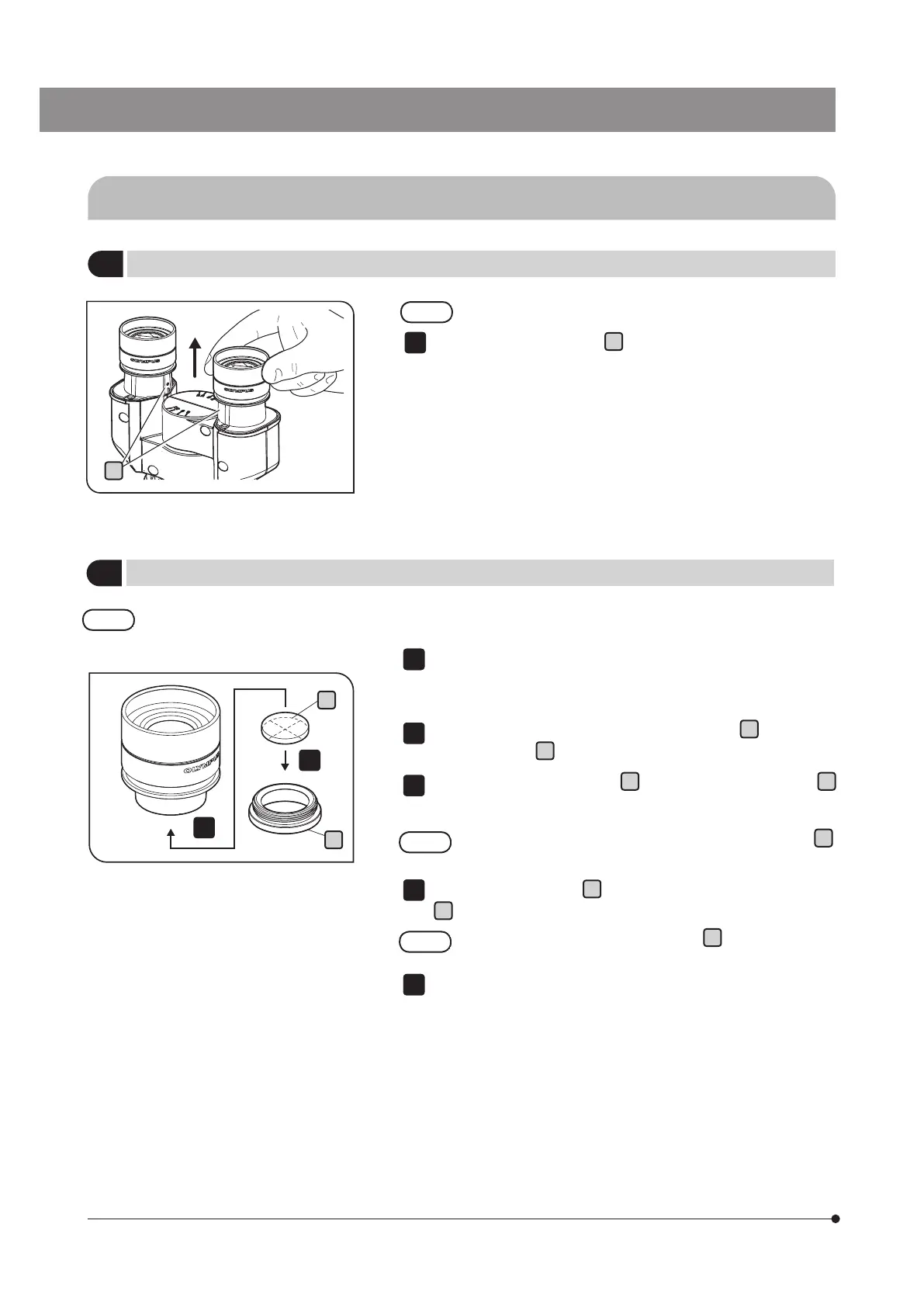

Removing the standard 10X eyepiece
The standard 10X eyepieces are clamped with screws.
Loosen the clamping screws
a
of the 10X eyepieces using the small
flathead screwdriver and remove the eyepieces.
1
a
2
Attaching the eyepiece micrometer
The size of the eyepiece micrometer which can be attached to eyepieces of this product is 24 mm in diameter and
1.5 mm in thickness.
b
3
4
To attach the eyepiece micrometer, loosen the clamping screw of the
right side eyepiece using a small flathead screwdriver and remove
the eyepiece.
Hold the eyepiece frame, loosen the reticle holder
a
and remove
the reticle holder
a
.
Insert the eyepiece micrometer
b
in the removed reticle holder
a
with the display surface of the micrometer facing down.
Be careful not to leave dirt on the eyepiece micrometer
b
,
since it will be noticeable during observation.
Screw in the reticle holder
a
which includes the eyepiece micrometer
b
to the bottom of the eyepiece gently.
Be sure to screw in the reticle holder
a
completely until
it stops.
Attach the eyepieces to the tube, and tighten the clamping screws.
