Omron C200HX Series Replacement Guide

6
3. Selecting the model

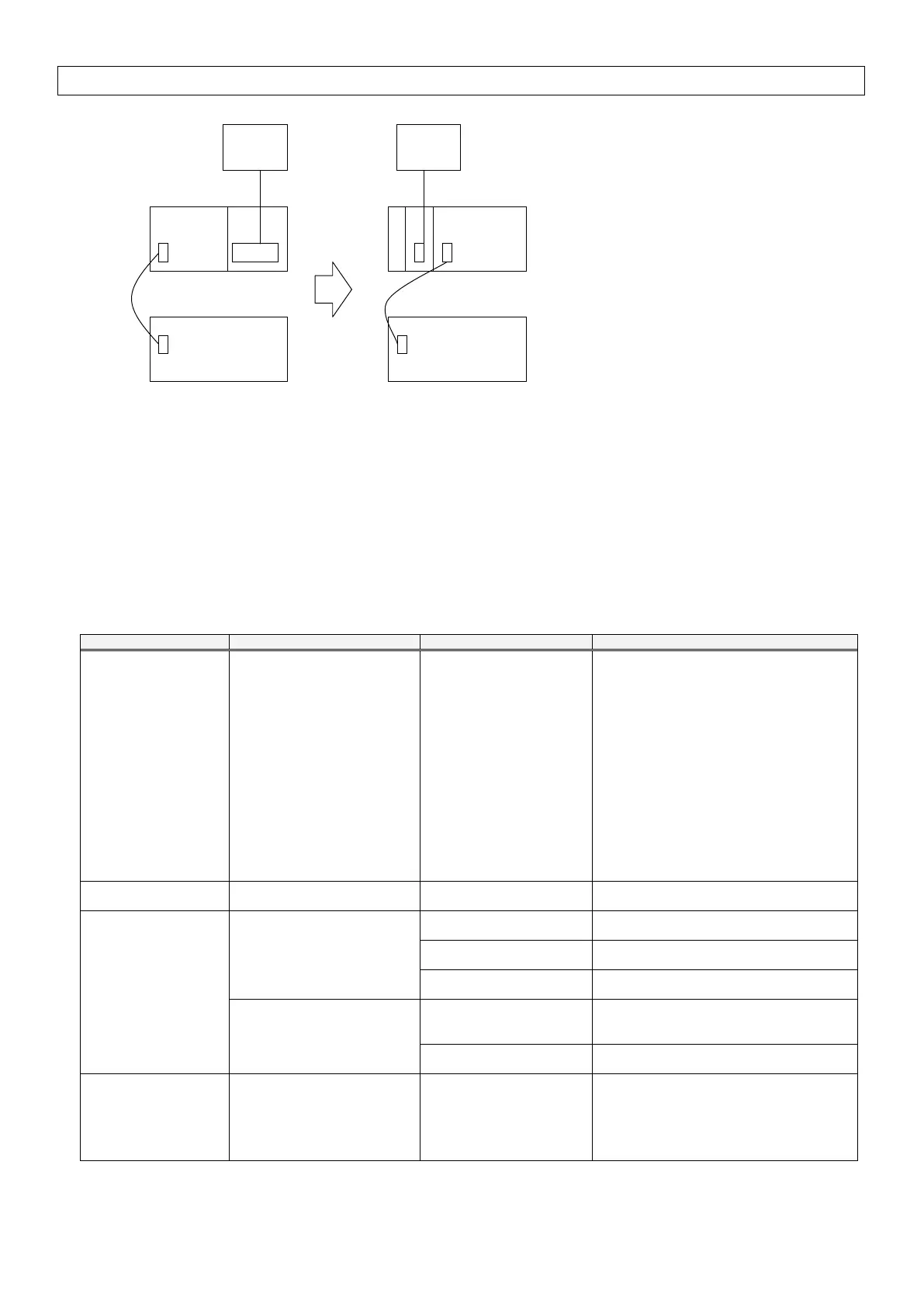

Outline of the system configuration
C200HX/HG/HE
PC
Expansion Backplane
CJ2
PC
I/O Interface Unit
SYSMAC Support Software
CX-Programmer
CX-Programmer
The table below lists the C200H-series Units and each corresponding CJ-series Unit. Select the CJ-series Unit
which is compatible with the C200H-series Unit or which has similar specifications to the C200H-series Unit.
Refer to the following manuals for details of the Units:
CJ2: CJ2H-CPU6□-EIP/CJ2H-CPU6□/CJ2M-CPU□□ SYSMAC CJ Series CJ2 CPU Unit Hardware USER'S
MANUAL (Cat. No. W472)
C200HX/HG/HE: C200HX/C200HG/C200HE-CPU□□E/-ZE INSTALLATION GUIDE (Cat. No. W302)
< CPU Rack >
Unit name
C200H-series Unit
CJ-series Unit
Description
CPU Unit (*)
C200HE-CPU11(-Z)
C200HE-CPU32(-Z)
C200HE-CPU42(-Z)
C200HG-CPU33(-Z)
C200HG-CPU43(-Z)
C200HG-CPU53(-Z)
C200HG-CPU63(-Z)
C200HX-CPU34(-Z)
C200HX-CPU44(-Z)
C200HX-CPU54(-Z)
C200HX-CPU64(-Z)
C200HX-CPU65-Z
C200HX-CPU85-Z
[CJ2H]
CJ2H-CPU64(-EIP)
CJ2H-CPU65(-EIP)
CJ2H-CPU66(-EIP)
CJ2H-CPU67(-EIP)
CJ2H-CPU68(-EIP)
[CJ2M]
CJ2M-CPU11/CPU31
CJ2M-CPU12/CPU32
CJ2M-CPU13/CPU33
CJ2M-CPU14/CPU34
CJ2M-CPU15/CPU35
UM 50K steps
UM 100K steps
UM 150K steps
UM 250K steps
UM 400K steps
*The EIP models have one built-in
EtherNet/IP port.
UM 5K steps
UM 10K steps
UM 20K steps
UM 30K steps
UM 60K steps
*The CPU3□ models have one built-in
EtherNet/IP port
Memory Cassette
C200HW-ME□□K
C200HS-MP16K
HMC-EF□□□
Power Supply Unit
C200HW-PA□□□
CJ1W-PA202
(AC Power Supply Unit)
To use RUN output, prepare an Output Unit
separately.
CJ1W-PA205C
(AC Power Supply Unit)
With replacement notification function.
CJ1W-PA205R
(AC Power Supply Unit)
With RUN output.
C200HW-PD□□□
CJ1W-PD022
(DC Power Supply Unit,
non-insulated type)
To use RUN output, prepare an Output Unit
separately.
CJ1W-PD025
(DC Power Supply Unit)
To use RUN output, prepare an Output Unit
separately.
CPU Backplane
C200HW-BC031
C200HW-BC051
C200HW-BC081-V1
C200HW-BC101-V1
Unnecessary
[DIN Track]
PFP-50N
PFP-100N
PFP-100N2
CJ-series Units are installed on the DIN
Track. The CPU Backplane is not required.
(*) The built-in serial port of the CJ2-series CPU Unit has the same functionality as that of C200HX/HG/HE-series CPU Unit. Refer to the
related manuals for details because specifications differ between the two series. Use the communications board/unit if required for the
application where the built-in port is used.
