FH-L550 Series
2

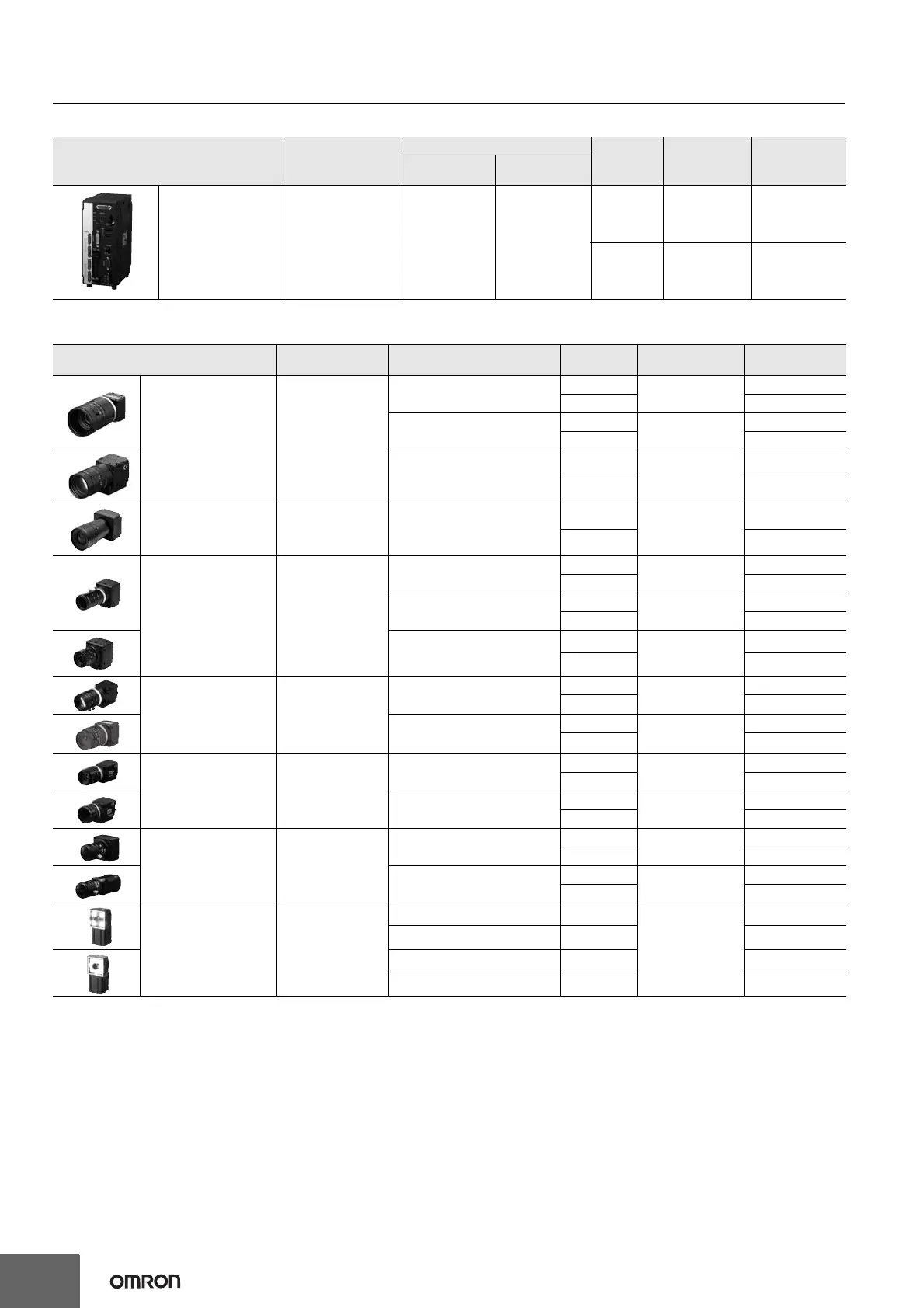

Ordering Information
FH Series Sensor Controllers
Cameras
*1 The image acquisition time does not include the image conversion processing time of the sensor controller.
The camera image input time varies depending on the sensor controller model, number of cameras, and camera settings. Check before you use the camera.
*2 Up to four cameras of this model can be connected to one controller.
*3 Frame rate in high speed mode when the camera is connected using two camera cables. For other conditions, refer to the table on the next page.
Item CPU
AI function
No. of
cameras
Output Model
AI Scratch
Detect Filter
AI FineMatching
Box-type controllers
Intel
®
Atom
®
processor 2 cores
Not available Not available
2NPN/PNPFH-L550
4NPN/PNPFH-L550-10
Item Lens mount Descriptions
Color /
Monochrome
Image Acquisition
Time *1
Model
High-speed Digital
CMOS Cameras
(Lens required)
C mount
12 million pixels *2
Color
24.9 ms *3
FH-SCX12
Monochrome FH-SMX12
5 million pixels
Color
10.3 ms *3
FH-SCX05
Monochrome FH-SMX05
0.4 million pixels
Color
1.9ms
FH-SCX
Monochrome FH-SMX
High-speed Digital
CMOS Cameras
(Lens required)
M42 mount 12 million pixels *2
Color
25.7 ms *3
FH-SC12
Monochrome FH-SM12
High-speed Digital
CMOS Cameras
(Lens required)
C mount
4 million pixels
Color
8.5 ms *3
FH-SC04
Monochrome FH-SM04
2 million pixels
Color
4.6 ms *3
FH-SC02
Monochrome FH-SM02
0.3 million pixels
Color
3.3 ms
FH-SC
Monochrome FH-SM
Digital CMOS Cameras
(Lens required)
C mount
5 million pixels
Color
71.7ms
FH-SC05R
Monochrome FH-SM05R
5 million pixels
Color
38.2 ms
FZ-SC5M3
Monochrome FZ-S5M3
Digital CCD Cameras
(Lens required)
C mount
2 million pixels
Color
33.3 ms
FZ-SC2M
Monochrome FZ-S2M
0.3 million pixels
Color
12.5 ms
FZ-SC
Monochrome FZ-S
Small Digital
CCD Cameras
(Lens required)
Lenses for small
camera required
300,000-pixel flat type
Color
12.5 ms
FZ-SFC
Monochrome FZ-SF
300,000-pixel pen type
Color
12.5 ms
FZ-SPC
Monochrome FZ-SP
Intelligent
Compact Digital
CMOS Camera
B
uilt-in lens
Nar
row view Color
16.7 ms
FZ-SQ010F
Standard view Color FZ-SQ050F
Wide View (long-distance) Color FZ-SQ100F
Wide View (short-distance) Color FZ-SQ100N
