8.2.
How to Check for Errors
Checking the EtherCA
T Status
8.2.1.
Y
ou can chec
k the EtherCA
T status from
Diagnosis Mode
of
Power PMAC IDE
.
Right
-
click on
Master0 (Deactivated)
under
EtherCA
T

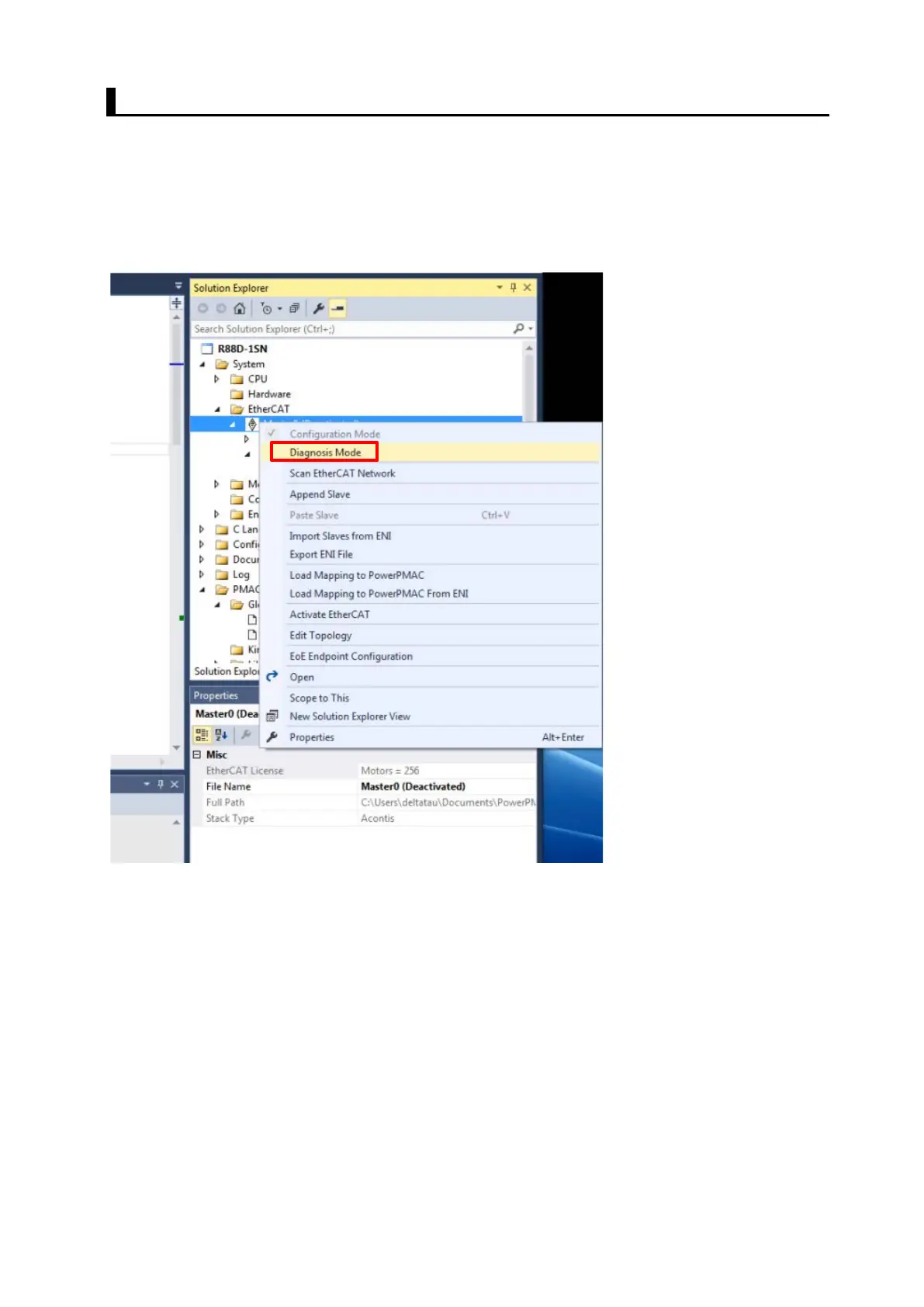

in the Solution E
xplorer
, then selec
t
Diagnosis Mode
to open the Diagnosis Mode page
.
