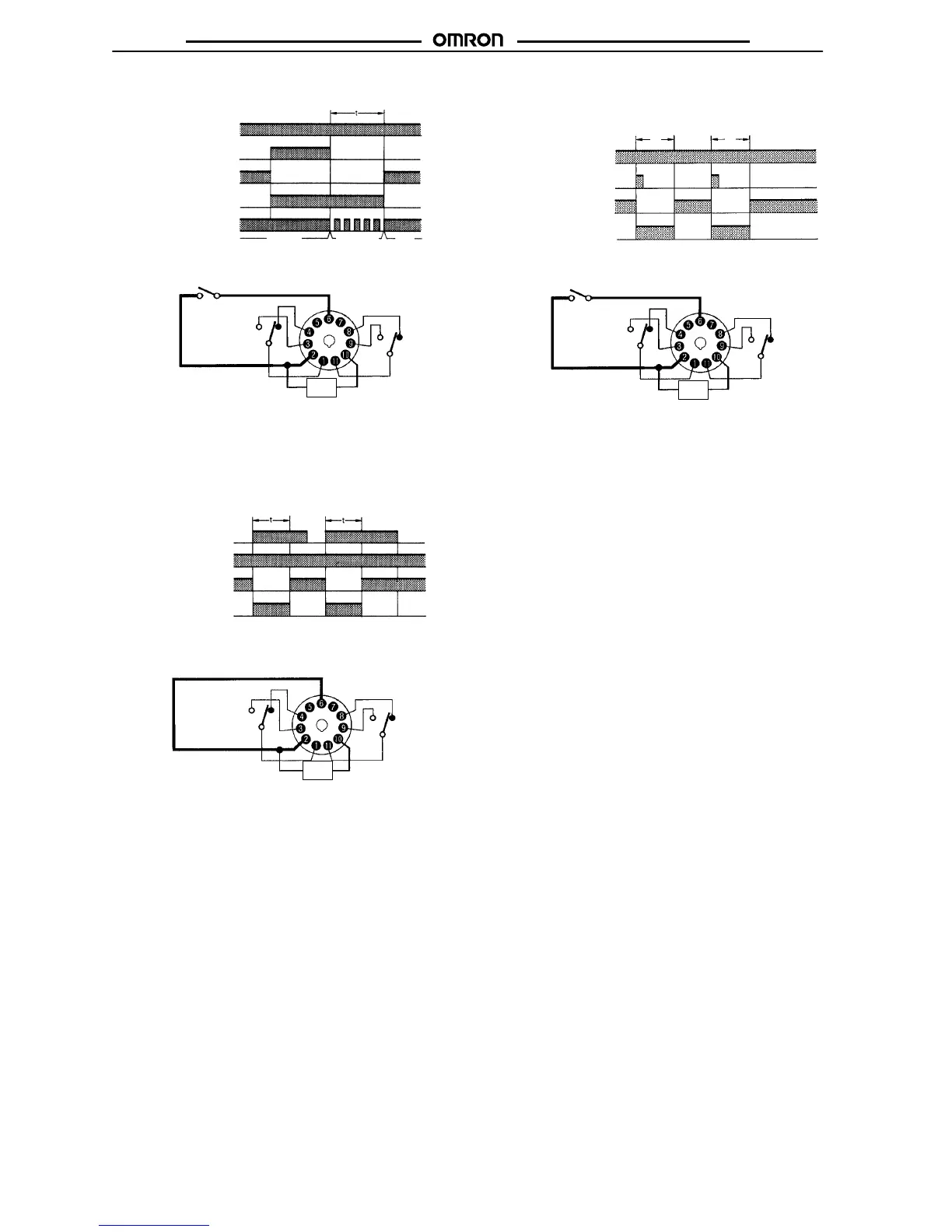

H3CR-A
H3CR-A
22
2.
Signal Start/Instantaneous Operation/T
ime-limit Reset
Lit
Start signal (NO to NC to NO)
Power (2 and 10)
Start (2 and 6)
Control output: NC (8 and 11)
NC (1 and 4)
Control output: NO (9 and 11)
NO (1 and 3)
Power indicator
Flashing Lit
(Power continuously supplied)
Power
supply
E Mode: Interval
1. Power-ON Start/Instantaneous Operation/T
ime-limit Reset
This
function is useful for the operation of a machine for a specified
period
after power is ON.
Power (2 and 10)
Start (2 and 6)
Control output: NC (8 and 11)
NC (1 and 4)
Control output: NO (9 and 11)
NO (1 and 3)
Power
supply
Externally short-circuited
2.
Signal Start/Instantaneous Operation/T
ime-limit Reset
This
function is useful for the repetitive control such as the filling of
liquid
for a specified period after each Signal start input.
Start signal
(Power continuously supplied)
Power
supply
Power (2 and 10)
Start (2 and 6)
Control output: NC (8 and 11)
NC (1 and 4)
Control output: NO (9 and 11)
NO (1 and 3)
t t
