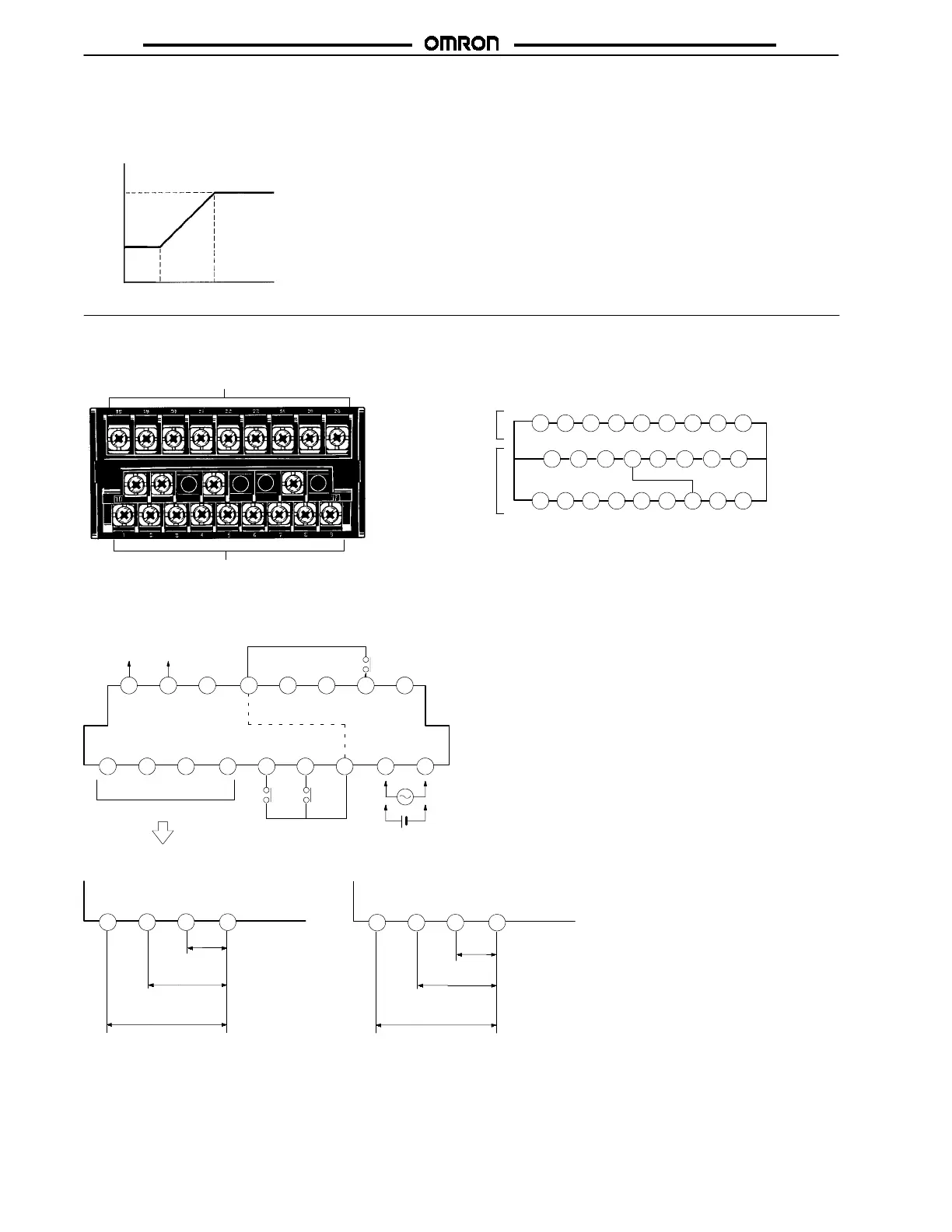

Linear Output Range
%,â-
A linear output range can be set as required. A value
corresponding to the maximum output value and that
corresponding to the minimum output value can be set.
Display
20 mA
4mA
Upper
limit
Output
Lower
limit
For the 4- to 20-mA
output type
Remote/Local Selection
+
ø
%
Select remote programming when performing all settings through
the host devices and select local programming when performing
settings through key operation.
3
TERMINAL ARRANGEMENT
Output unit
Input unit
18 19 20 21 22 23 24 25 26
10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8 9
Terminal Numbers
Note: Terminals 7 to 13 are connected internally.
Output
unit
Input
unit
3
INPUT UNIT
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17
HOLD RESET
COM
12 to 24 VDC
100 to 240 VAC
COM ZERO
Signal input terminal
12 VDC
+80mA--
When inputting the external control signals
through the open collector:
Transistor Inputs:
ON: Residual voltage must be 3 V max.
OFF: Leakage current must be 1.5 mA max.
The switching capacity must be 20 mA or greater.
When the external signal input is short-circuited,
a voltage of approximately 5 V will be applied to
between the terminals 5 to 7 and the COM
terminal, and a current of approximately 18 mA
(nominal value) will flow.
VD: DC Voltage Input AD: DC Current Input
1 2 3 4
±
1.9999 V
±
199.99 mV
±
19.999 V
1to5V
±
199.99 V
ANALOG
COM.
1 2 3 4
ANALOG
COM.
±
1.9999 mA
±
19.999 mA
4to20mA
±
199.99 mA
