Appendix 4 Using NT-AL001 Converters

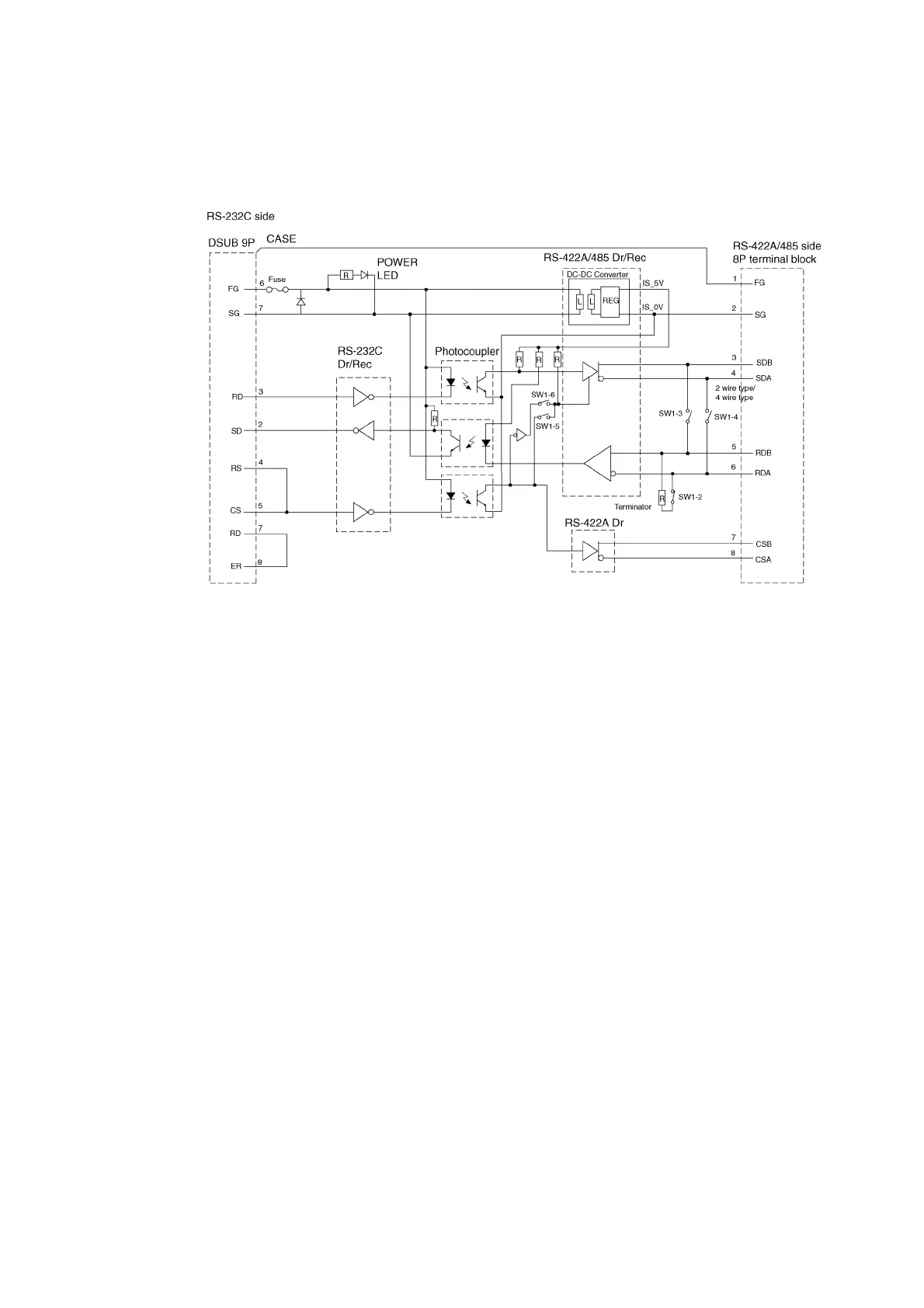

A-4-6 Block Diagram
A diagram showing the internal blocks of the converter unit is shown below. Refer to this
diagram when making cables yourself, or when connecting devices with special interfaces.
A-30
