12-5 Periodic Maintenance
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
12
Troubleshooting and Maintenance
Battery Unit Mounting Method

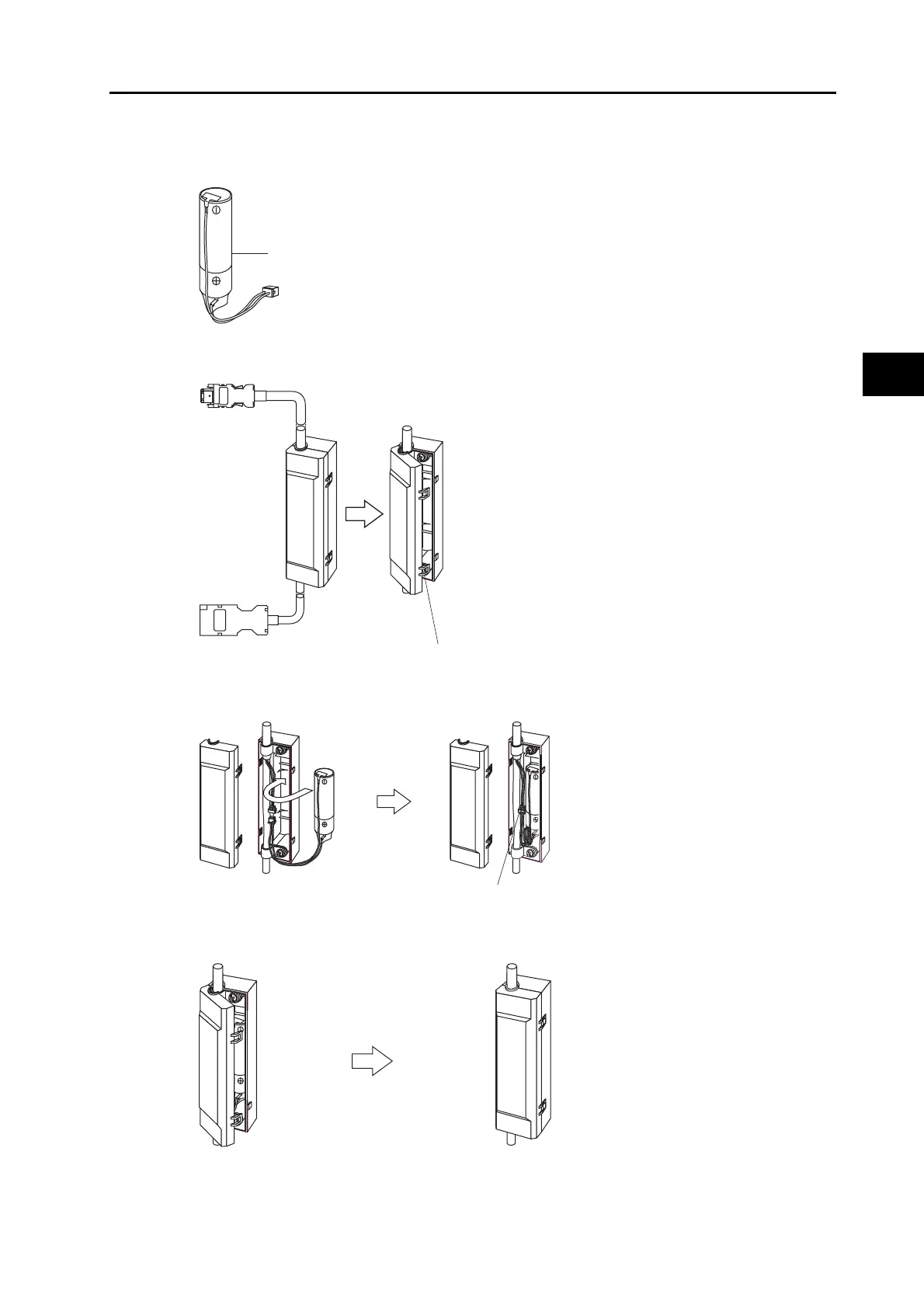

1. Prepare the replacement Battery Unit (R88A-BAT01G).
2. Remove the Battery Unit box cover.
3. Put the Battery Unit into the battery box.
4. Close the cover to the battery box.
R88A-BAT01G
Raise the tabs and remove the cover.
Plug in the connector.Insert the Battery Unit.
Close the battery box cover
by making sure the connector
wires are not pinched.
