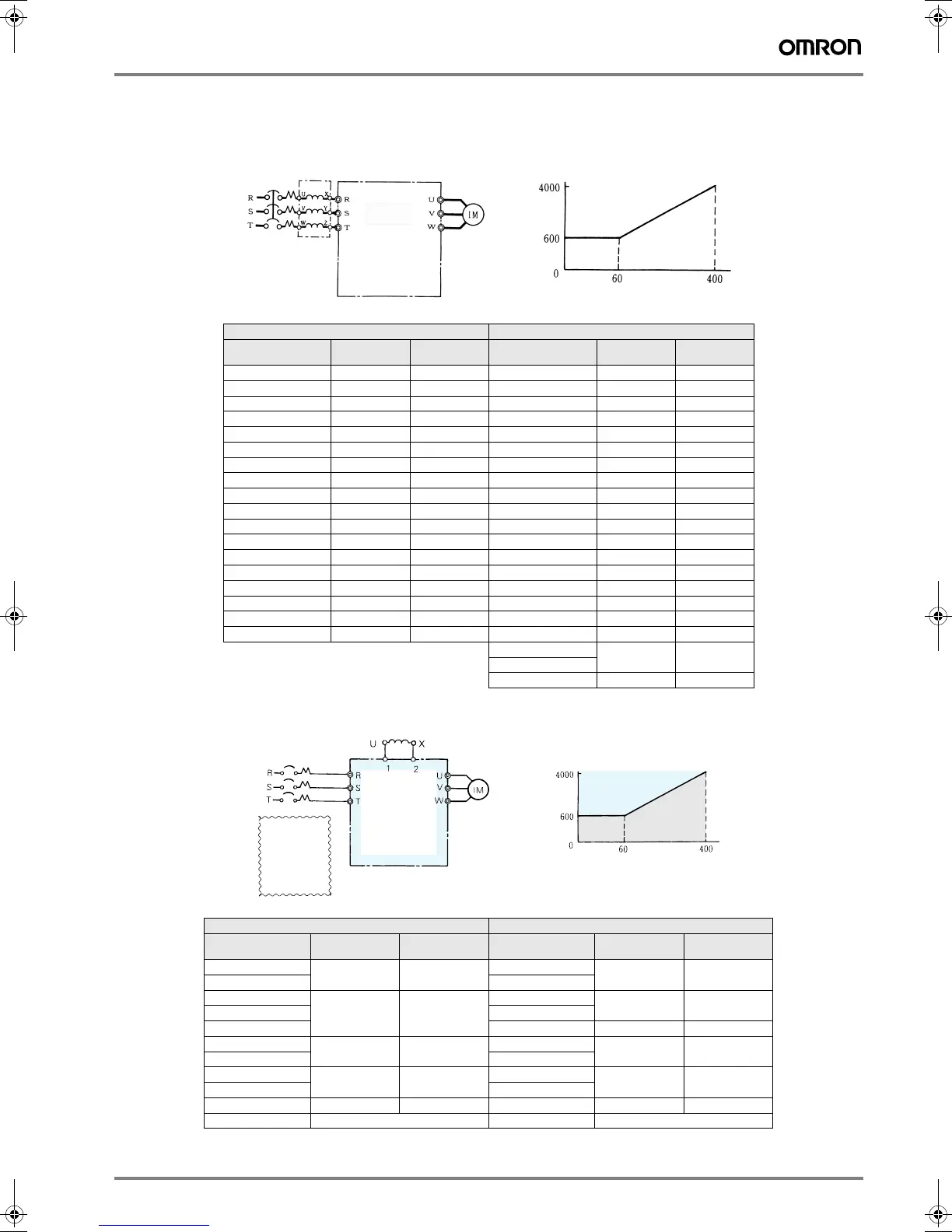

Omron VARISPEED F7 Datasheet

Varispeed F7 281
AC reactor
DC reactor
200 V class 400 V class
Max. applicable
motor output kW
Current value
A
Inductance
mH
Max. applicable
motor output kW
Current value
A
Inductance
mH
0.4 2.5 4.2 0.4 1.3 18.0
0.75 5 2.1 0.75 2.5 8.4
1.5 10 1.1 1.5 5 4.2
2.2 15 0.71 2.2 7.5 3.6
3.7 20 0.53 3.7 10 2.2
5.5 30 0.35 5.5 15 1.42
7.5 40 0.265 7.5 20 1.06
11 60 0.18 11 30 0.7
15 80 0.13 15 40 0.53
18.5 90 0.12 18.5 50 0.42
22 120 0.09 22 60 0.36
30 160 0.07 30 80 0.26
37 200 0.05 37 90 0.24
45 240 0.044 45 120 0.18
55 280 0.038 55 150 0.15
75 360 0.026 75 200 0.11
90 500 0.02 90/110 250 0.09
110 500 0.02 132/160 330 0.06
185 490 0.04
220
300 660 0.03
Connection example
MCCB
AC reactor
Application example
Inverter capacity (kVA)
Motor
Power supply
capacity (kVA)
AC Reactor required for
power supply harmonics
AC reactor not
required
Varispeed F7
200 V class 400 V class
Max. applicable
motor output kW
Current value
A
Inductance
mH
Max. applicable
motor output kW
Current value
A
Inductance
mH
0.4
5.4 8
0.4
3.2 28
0.75 0.75
1.5
18 3
1.5
5.7 11
2.2 2.2
3.7 3.7 12 6.3
5.5
36 1
5.5
23 3.6
7.5 7.5
11
72 0.5
11
33 1.9
15 15
18.5 90 0.4 18.5 47 1.3
22 to 110 Built-in 22 to 300 Built-in
Varispeed F7
Take off the
common bar
between G1
and G2, and
wire as shown
in the diagram.
⊕
⊕
DC reactor
Motor
MCCB
Power
supply
capacity
(kVA)
Inverter capacity (kVA)
Without reactor
With reactor for
power supply
coordination
Y203-EN2-02-Katalog.book Seite 281 Mittwoch, 24. Mai 2006 2:22 14
