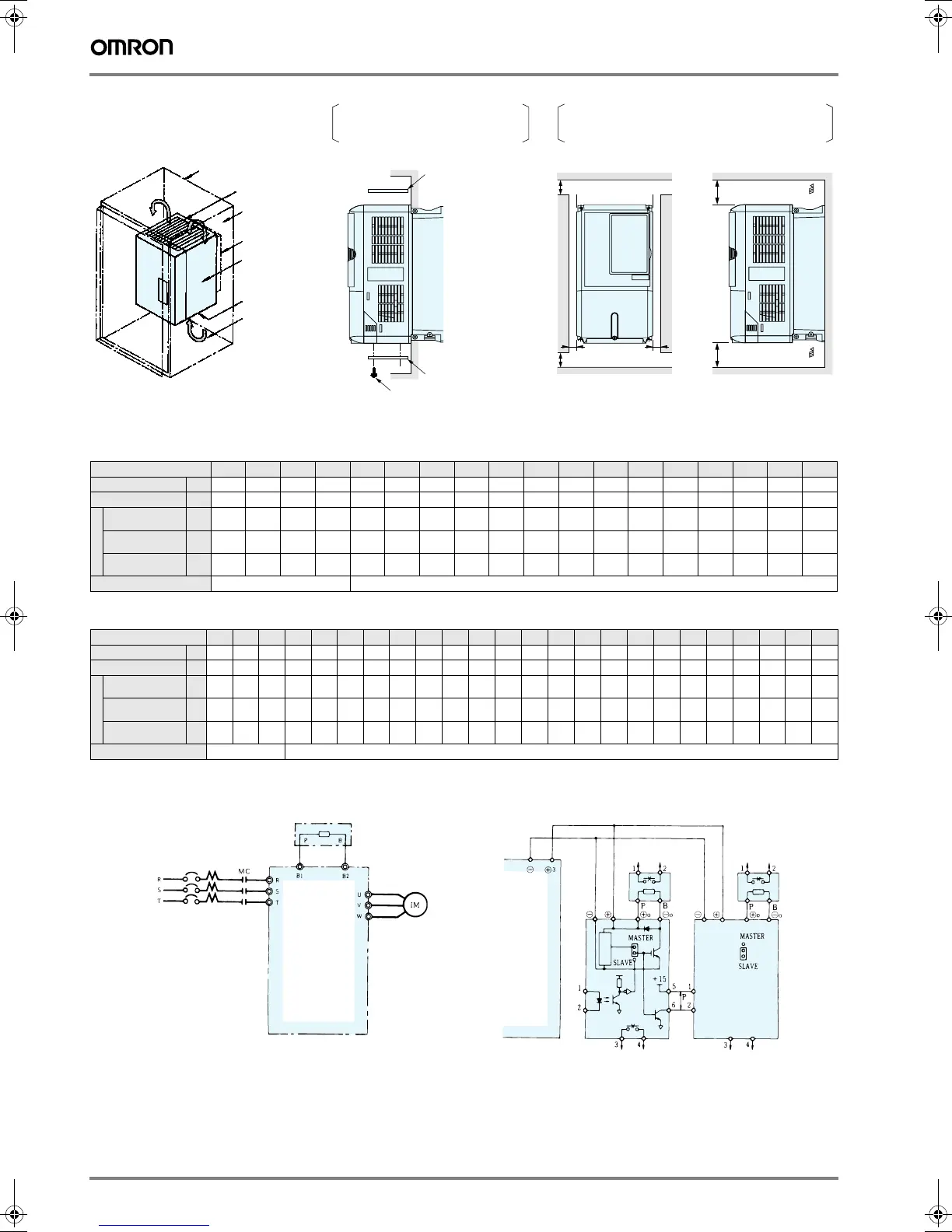

280 Frequency inverters
Inverter heat loss
200 V class
400 V class
Connections for braking units Connections for braking resistors
Model CIMR-F7Z 20P4 20P7 21P5 22P2 23P7 25P5 27P5 2011 2015 2018 2022 2030 2037 2045 2055 2075 2090 2110
Inverter capacity kVA 1.2 1.6 2.7 3.7 5.7 8.8 12 17 22 27 32 44 55 69 82 110 130 160
Rated current A 3.2 4.1 7.0 9.6 15 23 31 45 58 71 85 115 145 180 215 283 346 415
Heat loss W
Fin
W 20 27 50 70 112 164 219 374 429 501 586 865 1015 1266 1588 2019 2437 2733
Inside unit
W 39 42 50 59 74 84 113 170 183 211 274 352 411 505 619 838 997 1242
Total heat loss
W 59 69 100 129 186 248 332 544 612 712 860 1217 1426 1771 2207 2857 3434 3975
Fin coding Self cooled Fan cooled
Model CIMR-F7Z
40P4 40P7 41P5 42P2 43P7 44P0 45P5 47P5
4011 4015 4018 4022 4030 4037 4045 4055 4075 4090 4110 4132 4160 4185 4220 4300
Inverter capacity
kVA
1.4 1.6 2.8 4.0 5.8 6.0 9.5 13 18 24 30 34 46 57 69 85 110 140 160 200 230 280 390 510
Rated current
A
1.8 2.1 3.7 5.3 7.6 8.0 12.5 17 24 31 39 45 60 75 91 112 150 180 216 260 304 370 506 675
Heat loss W
Fin
W
14 17 36 59 80 91 127 193 252 326 426 466 678 784 901 1203 1399 1614 2097 2388 2791 3237 3740 5838
Inside unit
W
39 41 48 56 68 70 82 114 158 172 208 259 317 360 415 495 575 671 853 1002 1147 1372 1537 2320
Total heat loss
W
53 58 84 115 148 161 209 307 410 498 634 725 995 1144 1316 1698 1974 2285 2950 3390 3938 4609 5277 8158
Fin coding Self cooled Fan cooled
Internal heatsink
55 ˚C
45 ˚C
Upper cover
Upper part air
temperature
-10 to 55 ˚C
Open chassis
type inverter
Inverter inlet
temperature
-10 to 45 ˚C
Peripheral
temperature 40 ˚C
Lower cover
Heatsink
Remove the upper and lower covers for
the models of 15 kW or less in 200 V
and 400 V classes.
When using open chassis type inverters of 200 V/400 V
22 kW or more, secure spaces for eyebolts and wiring
of the main circuit.
Upper cover
50 mm or more
50 mm or more
120 mm or more
120 mm or more
30 mm or more 30 mm
or more
Heatsink
Lower cover
Side spaces Top and bottom spaces
Cover MTG screw
Air
Air
Varispeed F7
Braking
resistor
· Set constant L8-01 to 1
(mounting type braking
resistor protection
enabled).
· Set sequence to shutt off
the power side at inverter
fault contact output.
3-phase
Power
Supply
MCCB
Motor
Varispeed F7
Level Detector
Braking
resistor
unit
Braking
resistor
unit *
3
Braking unit 2*
2
Braking unit 1
Braking resistor overload
relay trip contact
(thermal relay trip contact)
Cooling fin overheat contact
(thermoswitch contact)
Cooling fin overheat contact
(thermoswitch contact)
Braking resistor overload
relay trip contact
(thermal relay trip contact)
Y203-EN2-02-Katalog.book Seite 280 Mittwoch, 24. Mai 2006 2:22 14
