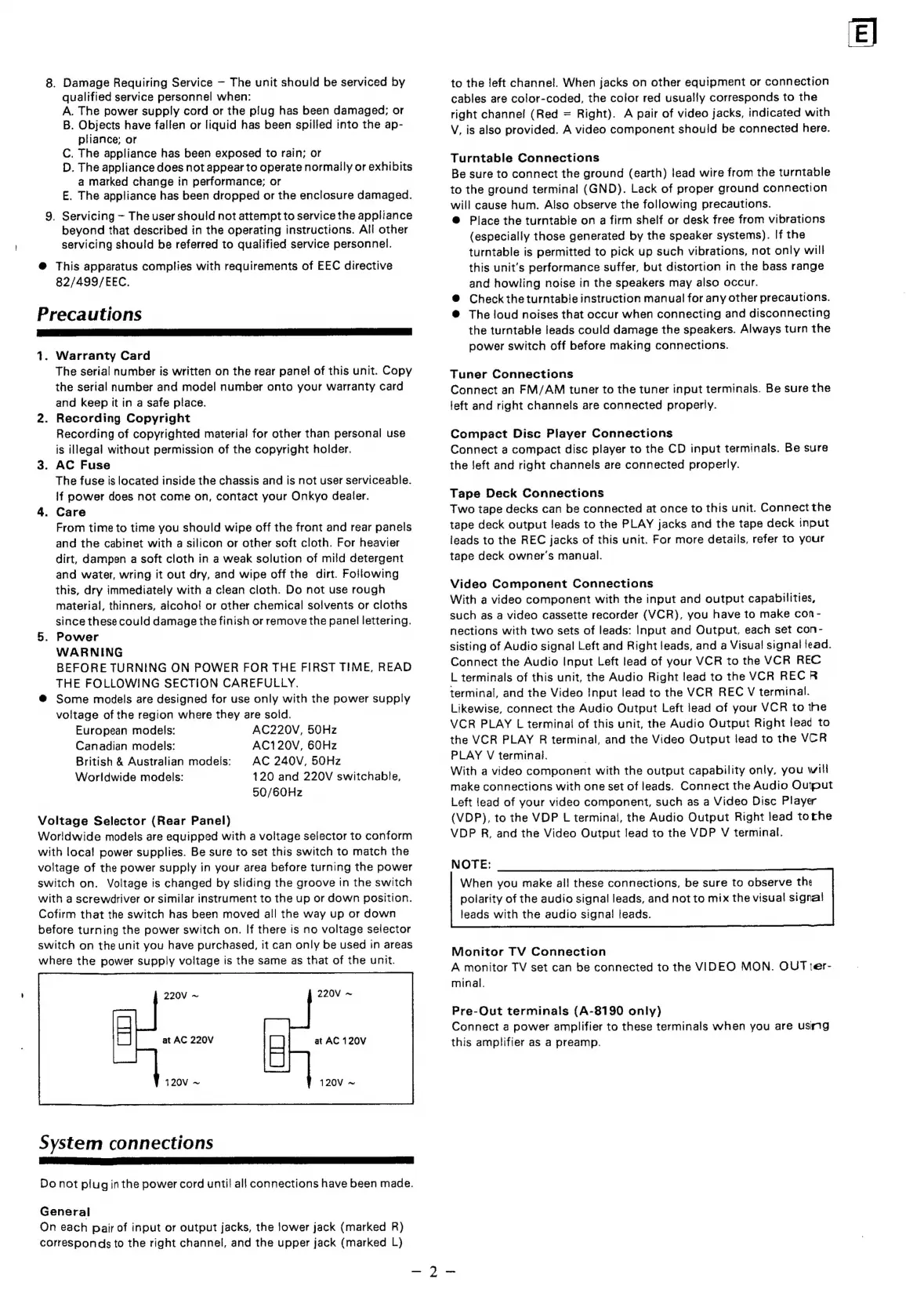

8. Damage Requiring Service - The unit should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen or liquid has been spilled into the ap-
pliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits
a marked change in performance; or
E. The appliance has been dropped or the enclosure damaged.
9. Servicing —- The user should not attempt to service the appliance
beyond that described in the operating instructions. All other
servicing should be referred to qualified service personnel.
@ This apparatus complies with requirements of EEC directive
82/499/EEC.
Precautions
er a ee een ee ee)
1. Warranty Card
The serial number is written on the rear pane! of this unit. Copy
the serial number and model number onto your warranty card
and keep it in a safe place.
2. Recording Copyright
Recording of copyrighted material for other than personal use
is illegal without permission of the copyright holder.
3. AC Fuse
The fuse is located inside the chassis and is not user serviceable.
lf power does not come on, contact your Onkyo dealer.
4. Care
From time to time you should wipe off the front and rear panels
and the cabinet with a silicon or other soft cloth. For heavier
dirt, dampen a soft cloth in a weak solution of mild detergent
and water, wring it out dry, and wipe off the dirt. Following
this, dry immediately with a clean cloth. Do not use rough
material, thinners, alcohol or other chemical solvents or cloths
since these could damage the finish or remove the panel lettering.
5. Power
WARNING
BEFORE TURNING ON POWER FOR THE FIRST TIME, READ
THE FOLLOWING SECTION CAREFULLY.
@® Some models are designed for use only with the power supply
voltage of the region where they are sold.
European models: AC220V, 50Hz
Canadian models: AC120V, 60Hz
British & Australian models: AC 240V, 50Hz
Worldwide models: 120 and 220V switchable,
50/60Hz
Voltage Selector (Rear Panel)
Worldwide models are equipped with a voltage selector to conform
with local power supplies. Be sure to set this switch to match the
voltage of the power supply in your area before turning the power
switch on. Voltage is changed by sliding the groove in the switch
with a screwdriver or similar instrument to the up or down position.
Cofirm that the switch has been moved all the way up or down
before turning the power switch on. If there is no voltage selector
switch on the unit you have purchased, it can only be used in areas
where the power supply voltage is the same as that of the unit.
at AC 220V
at AC 120V
120V ~ 120V ~
System connections
Do not plug in the power cord until all connections have been made.
General
On each pair of input or output jacks, the lower jack {marked R)
corresponds to the right channel, and the upper jack {marked L)
to the left channel. When jacks on other equipment or connection
cables are color-coded, the color red usually corresponds to the
right channel (Red = Right). A pair of video jacks, indicated with
V, is also provided. A video component should be connected here.
Turntable Connections
Be sure to connect the ground (earth) lead wire from the turntable
to the ground terminal (GND). Lack of proper ground connection
will cause hum. Also observe the following precautions.
® Place the turntable on a firm shelf or desk free from vibrations
(especially those generated by the speaker systems). If the
turntable is permitted to pick up such vibrations, not only will
this unit's performance suffer, but distortion in the bass range
and howling noise in the speakers may also occur.
@® Check the turntable instruction manual for any other precautions.
@ The loud noises that occur when connecting and disconnecting
the turntable leads could damage the speakers. Always turn the
power switch off before making connections.
Tuner Connections
Connect an FM/AM tuner to the tuner input terminals. Be sure the
left and right channels are connected properly.
Compact Disc Player Connections
Connect a compact disc player to the CD input terminals. Be sure
the feft and right channels are connected properly.
Tape Deck Connections
Two tape decks can be connected at once to this unit. Connect the
tape deck output leads to the PLAY jacks and the tape deck input
leads to the REC jacks of this unit. For more details, refer to your
tape deck owner's manual.
Video Component Connections
With a video component with the input and output capabilities,
such as a video cassette recorder (VCR), you have to make con -
nections with two sets of leads: Input and Output, each set con-
sisting of Audio signal Left and Right leads, and a Visual! signal lead.
Connect the Audio Input Left lead of your VCR to the VCR REC
L terminals of this unit, the Audio Right lead to the VCR RECR
terminal, and the Video Input lead to the VCR REC V terminal.
Likewise, connect the Audio Output Left lead of your VCR to the
VCR PLAY L terminal of this unit, the Audio Output Right jead to
the VCR PLAY R terminal, and the Video Output lead to the VCR
PLAY V terminal. |
With a video component with the output capability only, you will
make connections with one set of leads. Connect the Audio Output
Left lead of your video component, such as a Video Disc Player
(VDP), to the VDP L terminal, the Audio Output Right iead tothe
VDP R, and the Video Output lead to the VDP V terminal.
NOTE:
When you make all these connections, be sure to observe the
polarity of the audio signal leads, and not to mix the visual signal
leads with the audio signal leads.
Monitor TV Connection
A monitor TV set can be connected to the VIDEO MON. OUT ter-
minal.
Pre-Out terminals (A-8190 only)
Connect a power amplifier to these terminals when you are usirt1g
this amplifier as a preamp.
—-?-
