Onkyo BD-SP308 Service Manual

BD-SP308
SCHEMATIC DIAGRAMS-1

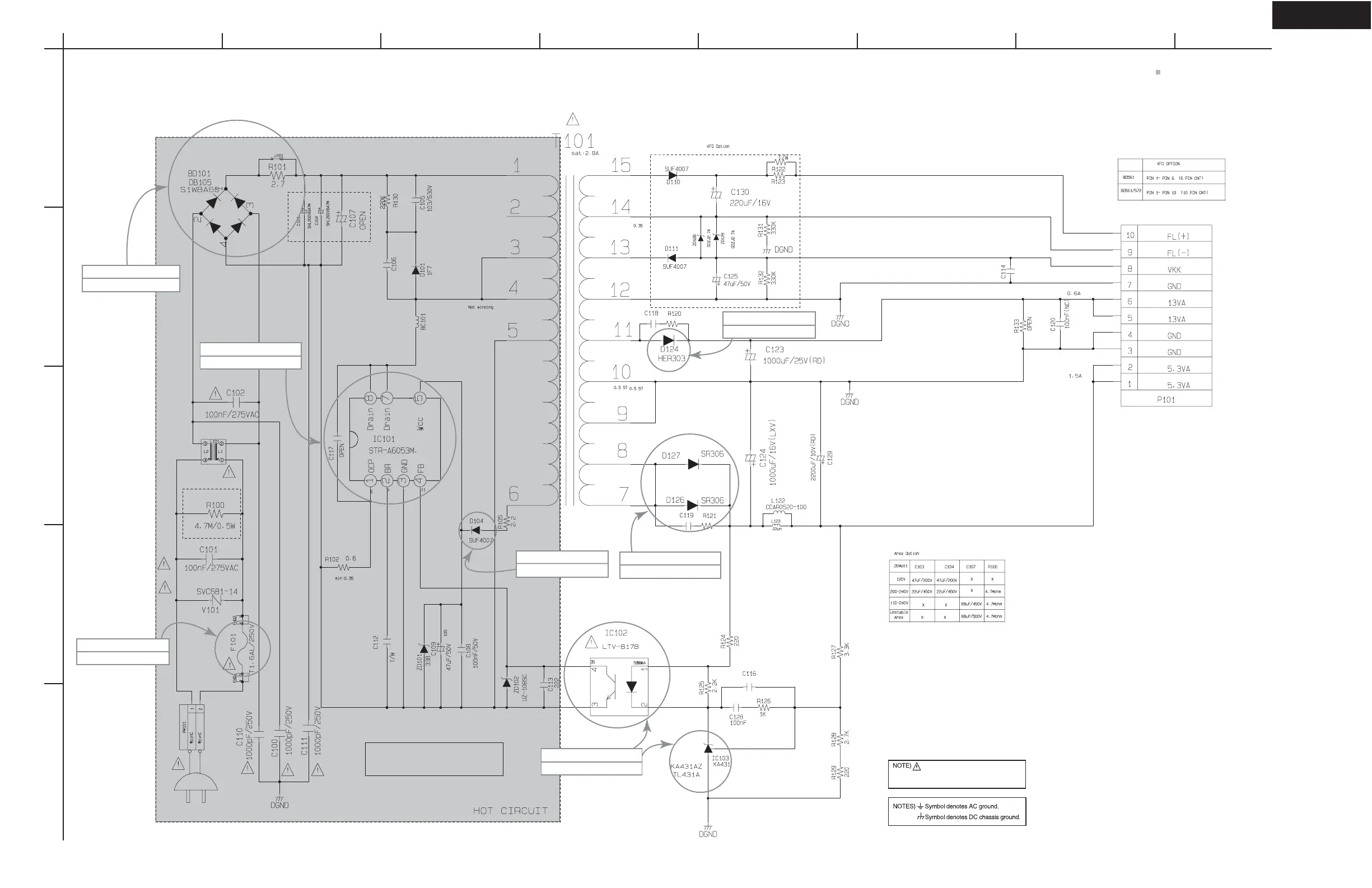

1. SMPS - POWER CIRCUIT
A
1
2
3
4
5
BCDEFGH
WHEN SERVICING THIS CHASSIS, UNDER NO
CIRCUMSTANCES SHOULD THE ORIGINAL DESIGN
BE MODIFIED OR ALTERED WITHOUT PERMISSION
FROM THE LG CORPORATION. ALL COMPONENTS
SHOULD BE REPLACED ONLY WITH TYPES
IDENTICAL TO THOSE IN THE ORIGINAL CIRCUIT.
SPECIAL COMPONENTS ARE SHADED ON THE
SCHEMATIC FOR EASY IDENTIFICATION. THIS
CIRCUIT DIAGRAM MAY OCCASIONALLY DIFFER
FROM THE ACTUAL CIRCUIT USED. THIS WAY,
IMPLEMENTATION OF THE LATEST SAFETY AND
PERFORMANCE IMPROVEMENT CHANGES INTO
THE SET IS NOT DELAYED UNTIL THE NEW SERVICE
LITERATURE IS PRINTED.
1. Shaded( ) parts are critical for safety. Replace only
with specified part number.
2. Voltages are DC-measured with a digital voltmeter
during Play mode.
IMPORTANT SAFETY NOTE :
Warning
Parts that are shaded are critical with
respect to risk of fire or electrical shock.
CAUTION:
Danger if fuse is incorrectly replaced.
Replace only with the type identical to fuse rating
and(or) model name described in main label.
13VA No Power
D124 is Defective
No Power
D101,R101 are Defective
Switching Error
IC102,IC103 are Defective
S/W Error
IC101 is Defective
5.3VA No Power
D126,D127 are Defective
No Power
F101 is Defective
No Power
D104 is Defective

Onkyo BD-SP308 Specifications

General

Dynamic range (1kHz)	86 dB
Frequency response CD	4 - 20000 Hz
Frequency response DVD	4 - 44000 Hz
Signal-to-Noise Ratio (SNR)	100 dB
Backlight color	Orange
Disc types supported	BD-R, BD-RE, BD-ROM, CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Optical disc diameter	120 mm
Number of optical discs	1 discs
Depth	209 mm
Width	435 mm
Height	53 mm
Weight	2000 g
Device type	DVD player
Form factor	Set-top
Ethernet LAN	Yes
HDMI version	1.3a
Package depth	298 mm
Package width	520 mm
Package height	129 mm
Package weight	3000 g
AC input voltage	200-240 V
AC input frequency	50 - 60 Hz
Supported video modes	1080i, 1080p, 576p, 720p
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio formats supported	MP3, WMA
Image formats supported	JPG, PNG
Video formats supported	DIVX
Analog signal format system	NTSC, PAL
Operating temperature (T-T)	5 - 35 °C
Power consumption (standby)	0.1 W
Power consumption (typical)	20 W
Operating relative humidity (H-H)	5 - 90 %
