Getting to Know the CD receiver—Continued
The page numbers in parentheses show where you can find the main explanation for each item.
a MD/TAPE IN/OUT (20, 21)
These analog audio inputs and outputs are for con-
necting a recorder with an analog input and output,
such as a MiniDisc recorder or cassette deck.
b DOCK IN (22)
This analog audio input is for connecting an Onkyo
RI Dock.
c SUBWOOFER PRE OUT (19)
This jack is for connecting a powered subwoofer.
d SPEAKERS (18)
These terminal posts are for connecting speakers.
e u REMOTE CONTROL (20–22)
This u (Remote Interactive) jack can be con-
nected to an u jack on another Onkyo component.
The CD receiver’s remote controller can then be
used to control that component. To use u, you
must make an analog audio connection (RCA)
between the CD receiver and the other component.
f FM ANTENNA (16, 17)
This jack is for connecting an FM antenna.
g AM ANTENNA (16, 17)
These push terminals are for connecting an AM
antenna.
h Power cord (22)
The power cord should be connected to a suitable
power source (Plug type varies from country to
country).
Caution:
The heat sink is a device designed to disperse heat from
within the CD receiver. Do not to place objects around
the CD receiver and ensure that there is adequate venti-
lation all around the CD receiver. If the ventilation is
inadequate, the CD receiver may overheat, leading to
malfunction.

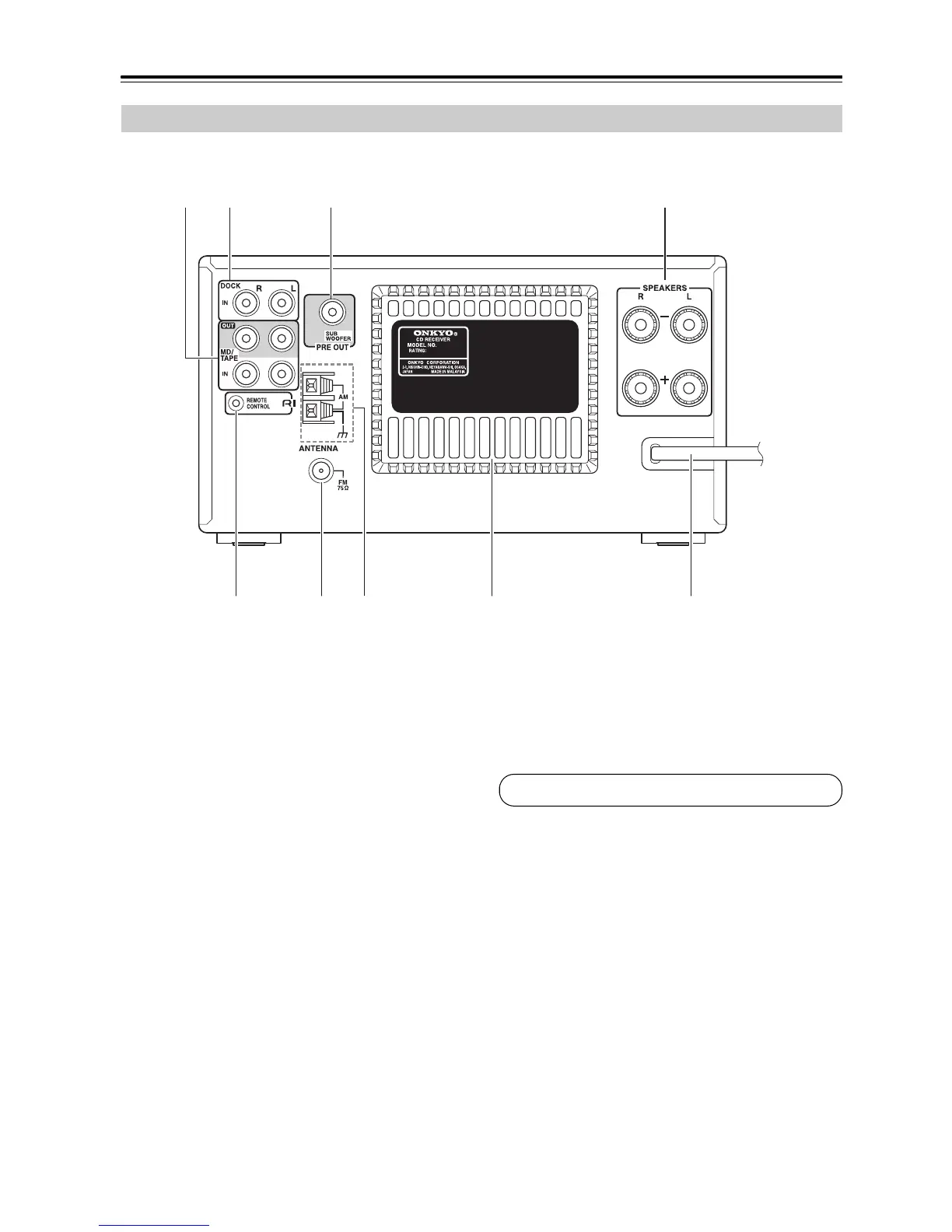

Rear Panel
12 3 4
5
6 7 8
Heat sink
See pages 16–22 for connection information.
