3
Input Signal Warning
The speakers can handle the specified input power when
used for normal music reproduction. If any of the following
signals are fed to them, even if the input power is within the
specified rating, excessive current may flow in the speaker
coils, causing burning or wire breakage:
1. Interstation noise from an untuned FM radio.
2. Sound from fast-forwarding a cassette tape.
3. High-pitched sounds generated by an oscillator, electronic
musical instrument, and so on.
4. Amplifier oscillation.
5. Special test tones from audio test CDs and so on.
6. Thumps and clicks caused by connecting or disconnecting
audio cables. (Always turn off your amplifier before
connecting or disconnecting cables.)
7. Microphone feedback.
The two speakers are identical, so it doesn’t matter which one
you use on the left or right.
0 Before connecting the speakers, disconnect your
amplifiers power cord from the wall outlet and set its
volume control to minimum.
0 The speaker’s rated impedance is 4 Ω. Make sure you
connect an amplifier that is compatible with a 4 Ω
impedance.
0 Use the supplied speaker cables to connect the speakers
to your amplifier as shown.
0 We will not accept responsibility for damage arising from
the connection of equipment manufactured by other
companies.
The type of speaker terminals used on the amplifier and their
position depends on the model. Refer to the amplifier’s
instruction manual for details on connecting speakers to the
amplifier.
0 Make sure the speaker’s positive (+)
terminals are connected to the amplifier’s
positive (+) terminals, and the speaker’s
negative (–) terminals are connected to
the amplifier’s negative (–) terminals.
0 Make sure that the positive (+) and
negative (–) wires are not touching each
other. If they are, a short circuit may
occur, damaging your amplifier.
Type: 2-way bass reflex
Impedance: 4 Ω
Maximum input power: 120 W
Output sound pressure level: 84 dB/W/m
Frequency response: 50 Hz to 100 kHz
Crossover frequency: 2.5 kHz
Dimensions (W × H × D): 170 × 283 × 260.5 mm
6-11/16" 11-1/8" 10-1/4"
(incl. grille and projection)
Weight: 4.3 kg (9.5 lbs.)
Speakers Woofer: 13 cm (5-1/8") N-OMF cone type
Tweeter: 3 cm (1-3/16") Ring type
Terminal: Screw-type speaker terminal
(Banana plug supported)
Grille: Detachable
Accessories: 1.8 m (6 ft.) speaker cable × 2
Cork spacer × 8
Other: Non magnetic shielding
*
Specifications and appearance are subject to change without notice.

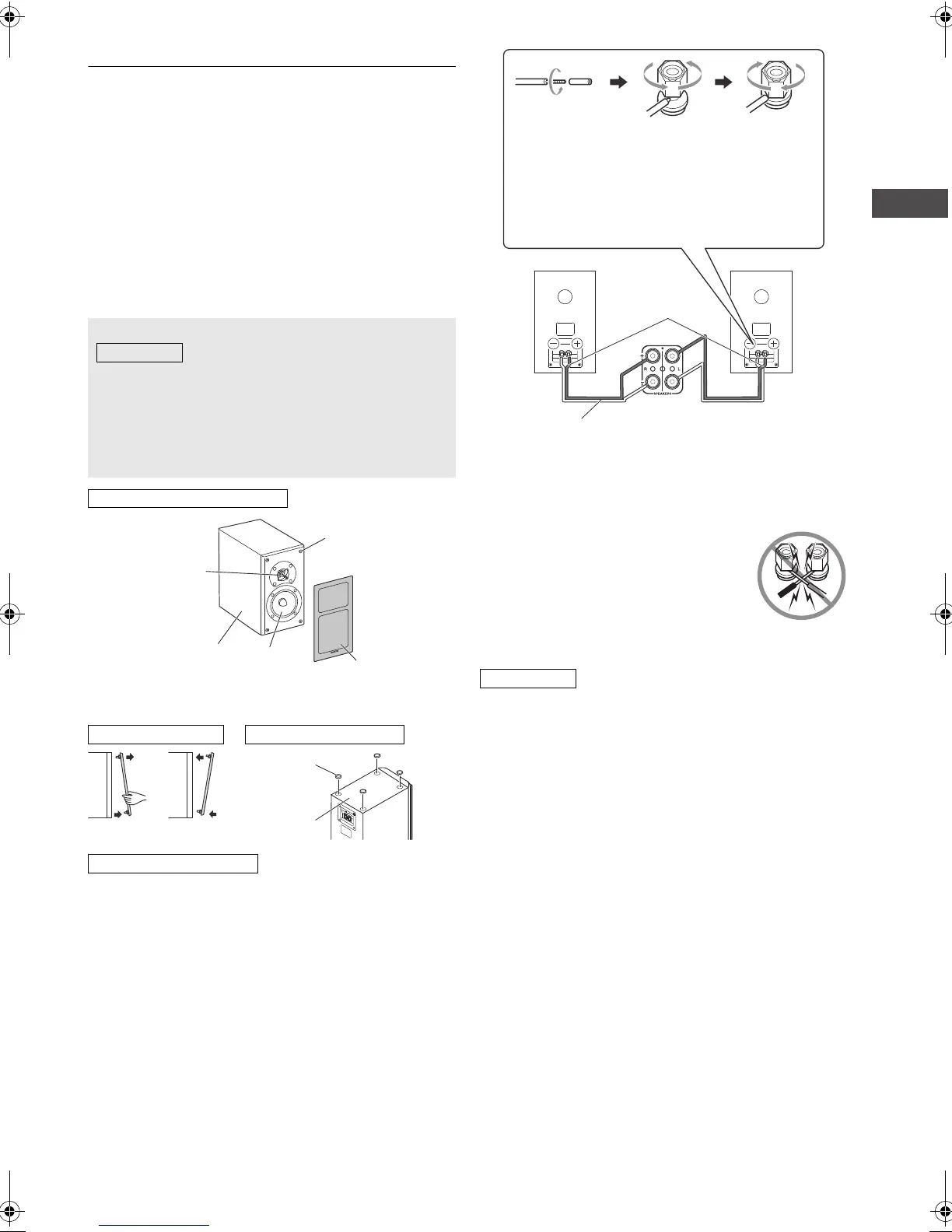

Before Using Your New Speakers
In catalogs and on packaging, the letter at the end of the
product name indicates the color. Specifications and
operation are the same regardless of the color.
The speakers contain powerful magnets. Do not put metal
items, such as screwdrivers, close to the speakers, as they
damage to the tweeter diaphragm.
Removing the Grills Using the Cork Spacers
Getting to Know the Speakers
Cabinet
Woofer
Grille
Grille attachment
catcher
Tweeter
Remove Replace
Cork spacer
Bottom
Right speaker Left speaker
Positive (+)
side is indicated
by a red line
1. Peel the
insulation off
the ends of the
speaker cable
and twist the
core wires.
2. Loosen the
terminal screw
and insert the
speaker cable
into the hole
(until the core
wires are
inserted fully).
3. Fasten the
terminal screw.
Speaker cable
En
SN29402447_D-175_EnDeFr_1608xx.fm 3 ページ ２０１６年９月８日 木曜日 午後３時１５分
