Getting Started—Continued
A SETUP button
Used to set the TV system (PAL/NTSC) and
the remote controller’s ID.
B MODE button
Sets the OSD mode to On or Off.
C MENU button
Used to select the previous menu on the
onscreen display and iPod.
D Play/Pause [ / ] button
Starts or pauses playback of the selected
song.
E Previous and Next [ ]/[ ] buttons
The Previous [ ] button selects the previ-
ous track. During playback it selects the
beginning of the current track. The Next
[] button selects the next track.
Press and hold the Previous [ ] button to
rewind. Press and hold the Next [ ] but-
ton to fast forward.
F SHUFFLE button
Sets the Shuffle function to Songs, Albums,
or Off.
G PLAYLIST/PAGE MODE [ ]/[ ] buttons
Used to select the page modes. During play-
back or when the OSD mode is set to Off,
they select playlists.
H ALBUM/PAGE [ ]/[ ] buttons
Used to page through the playlists (artists,
albums, songs, genres, composers) dis-
played on your TV. During playback or when
the OSD mode is set to Off, they select
albums.
I RESUME button
Used to resume playback. It has no function
when the OSD mode is set to Off.
J SELECT button
Used to select songs and menus on the
onscreen display and iPod.
K Up and Down arrow [ ]/[ ] buttons
Used to navigate songs and menus on the
onscreen display and iPod.
L REPEAT button
Sets the Repeat function to One, All, or Off.
M VOLUME [ ]/[ ] buttons
Adjust the volume on the Onkyo amp or AV
receiver. They don’t affect the iPod’s volume
setting.

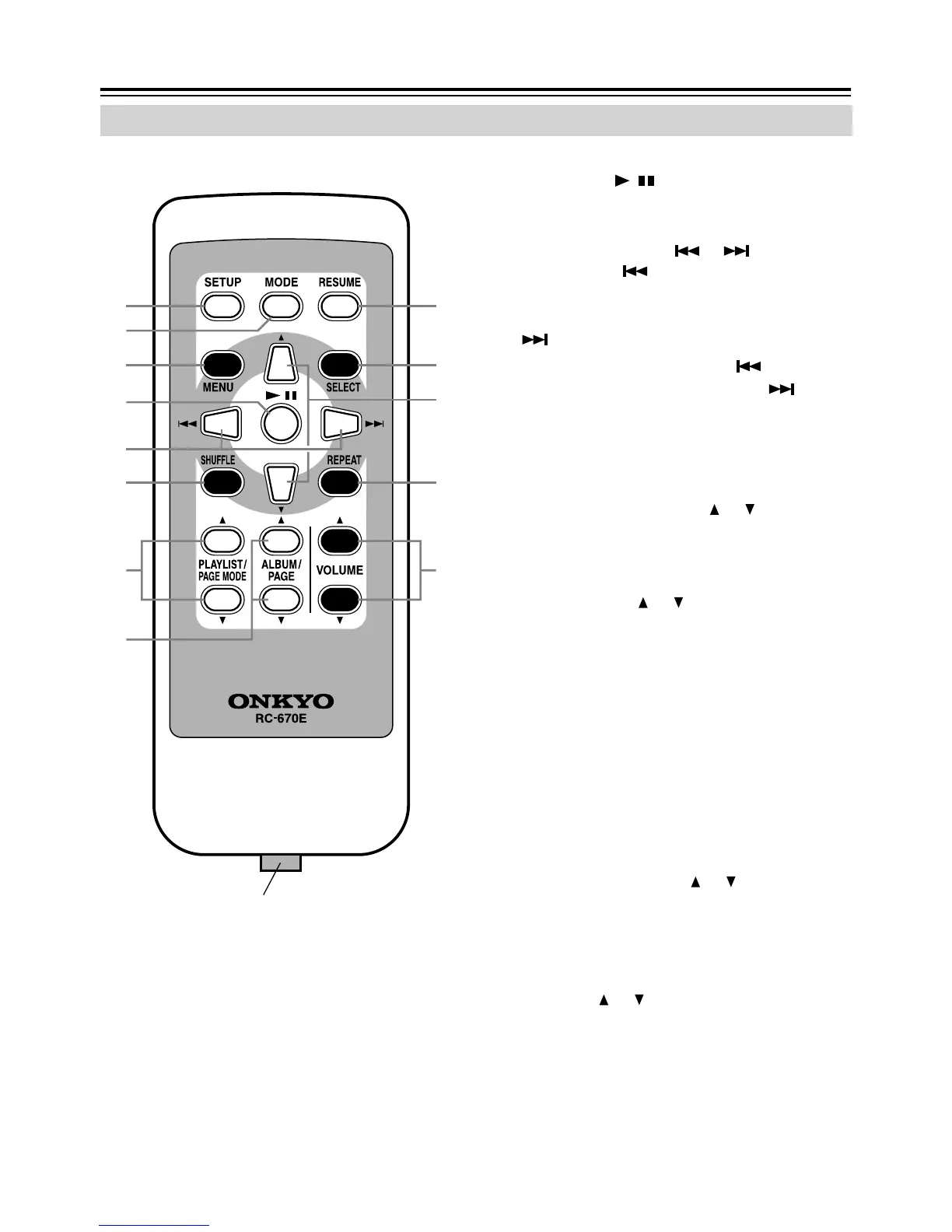

Remote Controller
1
3
9
J
6L
8
K
2
M
4
7
5
Remove the plastic film before using
the remote controller.

Onkyo DS-A2X Specifications

Power

power supply	AC adaptor (5 V DC)
power consumption	1.1 W (iPod not inserted)

Package Dimensions

carton dimensions	207 x 340 x 76 mm
carton weight	1.1 kg

Weight and Dimensions

dimensions	112 x 60 x 112 mm
weight	230 g
