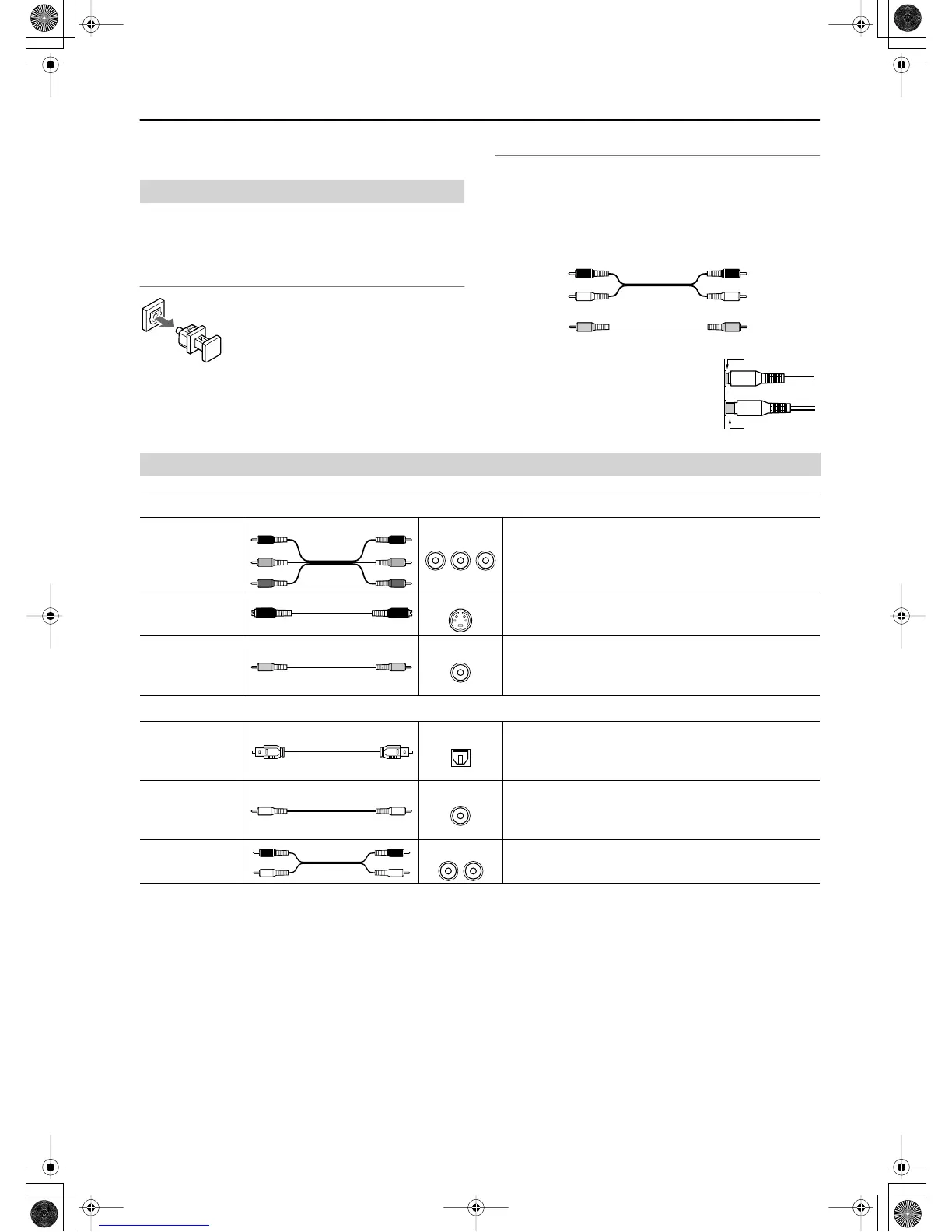

Connecting the DV-CP702
This chapter explains how to connect the DV-CP702 to your
other AV components.
• Read the manuals supplied with your AV components.
• Don’t connect the power cord until you’ve completed all
audio and video connections.
Optical Digital Inputs
The DV-CP702’s optical digital connector
has a dust cap for keeping out dust and dirt
when it’s not in use. Remove the cap before
inserting an optical digital plug. Push the
plug in all the way to make a good connec-
tion. Keep the dust cap in a safe place for
future use.
RCA/phono AV Connection Color Coding
RCA/phono AV connections are usually color coded: red,
white, and yellow. Use red plugs to connect right-channel
audio inputs and outputs (typically labeled “R”). Use white
plugs to connect left-channel audio inputs and outputs (typi-
cally labeled “L”). And use yellow plugs to connect compos-
ite video inputs and outputs.
• Push the plugs in all the way to make
a good connection.
•To prevent interference, keep audio
and video cables away from power
cords and speaker cables.
Before Making Any Connections
Analog audio
Right (red)
Left (white)
(Yellow)
Right (red)
Left (white)
(Yellow)
Composite video
Wrong!
Right!
AV Cables & Connectors
Video
Component
video
Component video separates the luminance (Y) and color
difference signals (P
R
, P
B
), providing the best picture
quality. (Some TV manufacturers label their component
video inputs slightly differently.)
S-Video
S-Video provides better picture quality than composite
video.
Composite
video
Composite video can be found on virtually all TVs,
VCRs, and other video equipment. Use only dedicated
composite video cables.
Audio
Optical digital
Optical digital audio connections with the optical digital
audio output and a suitable AV receiver, you can enjoy
DVD-Videos with surround sound.
Coaxial digital
Coaxial digital audio connections with the coaxial digi-
tal audio output and a suitable AV receiver, you can
enjoy DVD-Videos with surround sound.
Analog
RCA/phono analog audio connectors can be found on
virtually all AV components.
C R
C B
Y
C
R
C B
P R
P B
P/ /
//
R
P B
Y
YPB PR
S VIDEO
VIDEO
OPTICAL
COAXIAL
LR
AUDIO
