DV-SP502/502E

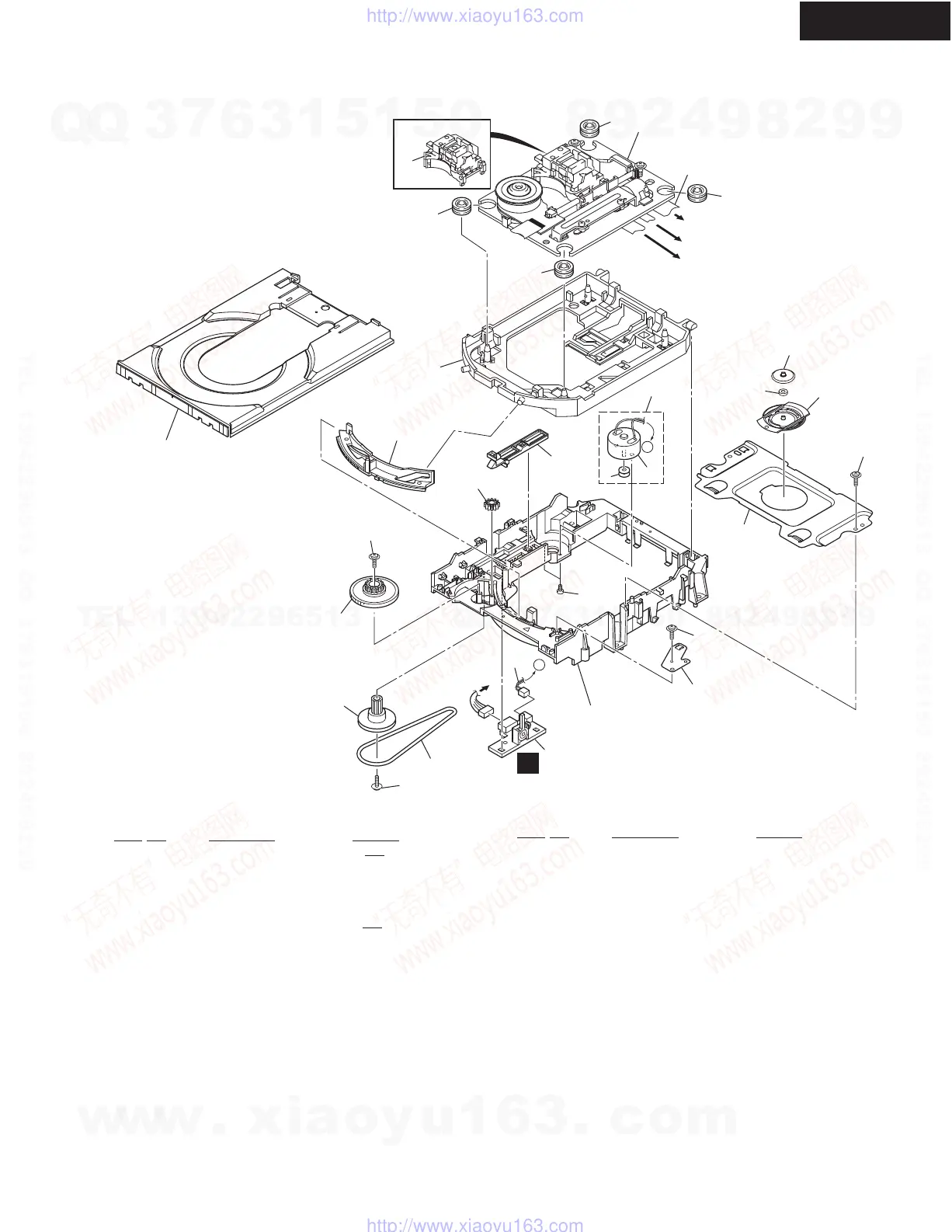

EXPLODED VIEW (DVD MECHANISM)
LOADER MECHANISM
A
A
To DVDM CN101 (Pickup)
To DVDM CN104 (Stepping Motor)
To DVDM CN102 (Spindle Motor)
To
DVDM CN103
2
25
3
5
4
12
23
13
17
21
16
22
15
14
22
22
22
20
19
9
1
7
10
11
6
8
8
8
8
18
24
A
Mark No. Description Part No.
NSP 1 LOAB Assy
2 Traverse Mecha. Assy-S DXX2536
3 Loading Motor Assy VXX2912
4 Motor Pulley PNW1634
NSP 5 Motor
6 Flexible Cable (24P) VDA1990
7 Connector Assy 2P VKP2325
8 Floating Rubber VEB1351
9 Belt VEB1358
10 Stabilizer VNE2253
11 Loading Base VNL1917
12 Float Base 04 VNL1968
13 Drive Cam VNL1919
14 Gear Pulley VNL1921
15 Loading Gear VNL1922
16 Drive Gear VNL1923
17 SW Lever VNL1925
18 Clamper Plate 04 VNE2342
19 Bridge 04 VNE2343
20 Clamper 04 VNL1969
21 Screw JGZ17P028FNI
22 Screw VBA1093
23 Tray VNL1920
24 Clamp Magnet VMG1029
25 03 SD Pickup Assy-S OXX8005
Mark
No. Description Part No.
PARTS LIST
