7
En

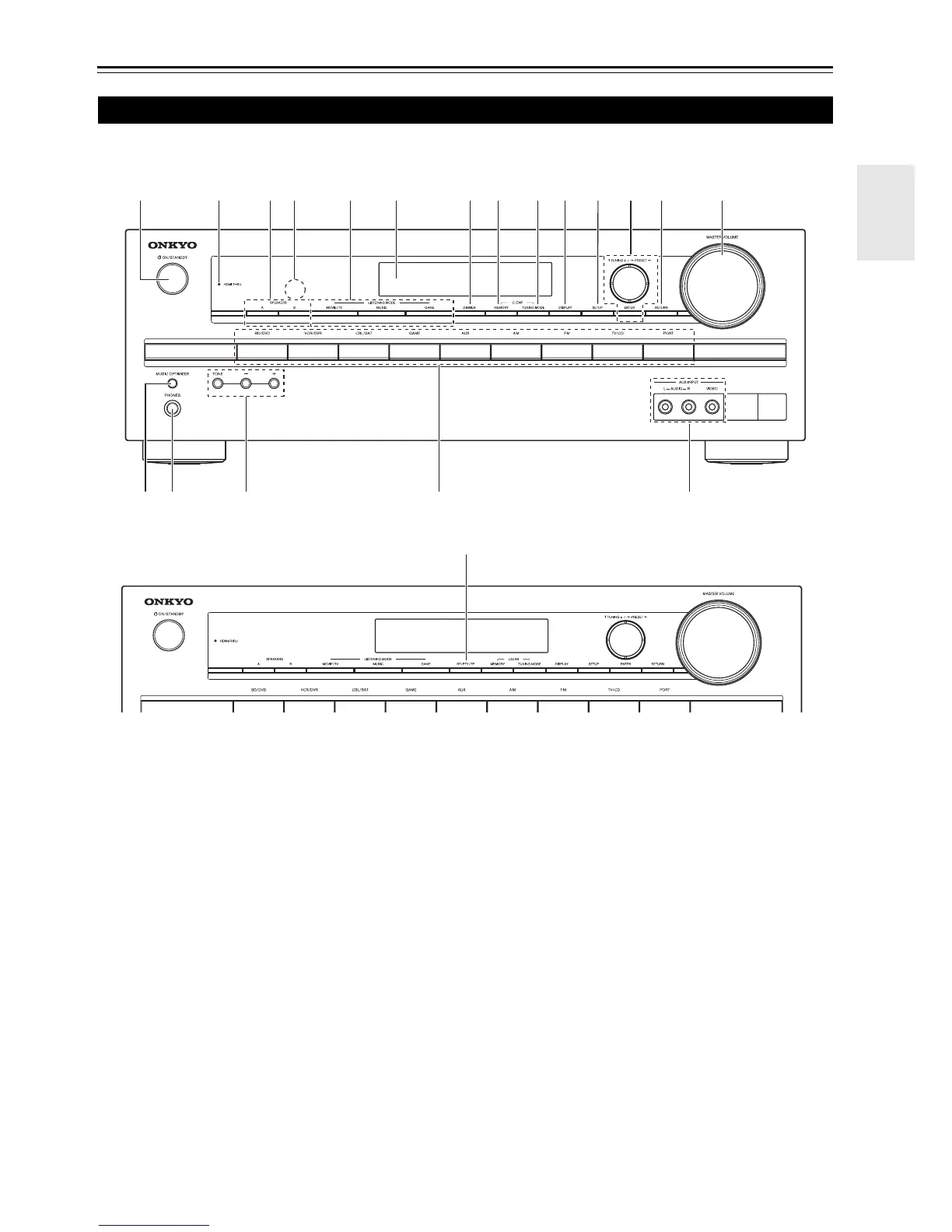

Front & Rear Panels
The page numbers in parentheses show where you can find the main explanation for each item.
a 8 ON/STANDBY button (17)
b HDMI THRU indicator (35)
c SPEAKERS A and B buttons (24)
d Remote control sensor (4)
e LISTENING MODE buttons (21)
f Display (8)
g DIMMER button (North American and Brazilian
models) (25)
h MEMORY button (19)
i TUNING MODE button (18)
j DISPLAY button (25)
k SETUP button (27)
l TUNING, PRESET (18 to 19), arrow and ENTER
buttons
m RETURN button
n MASTER VOLUME control (18)
o MUSIC OPTIMIZER button (25, 37)
p PHONES jack (26)
q TONE and Tone Level buttons (36)
r Input selector buttons (18)
s AUX INPUT AUDIO and VIDEO jacks (14, 26)
t RT/PTY/TP button (European and Asian models)
(20)
Front Panel
a
rs
bcd egfhijklmn
p
qo
(North American and Brazilian models)
t
(European and Asian models)
To Next Page
