HTP-990

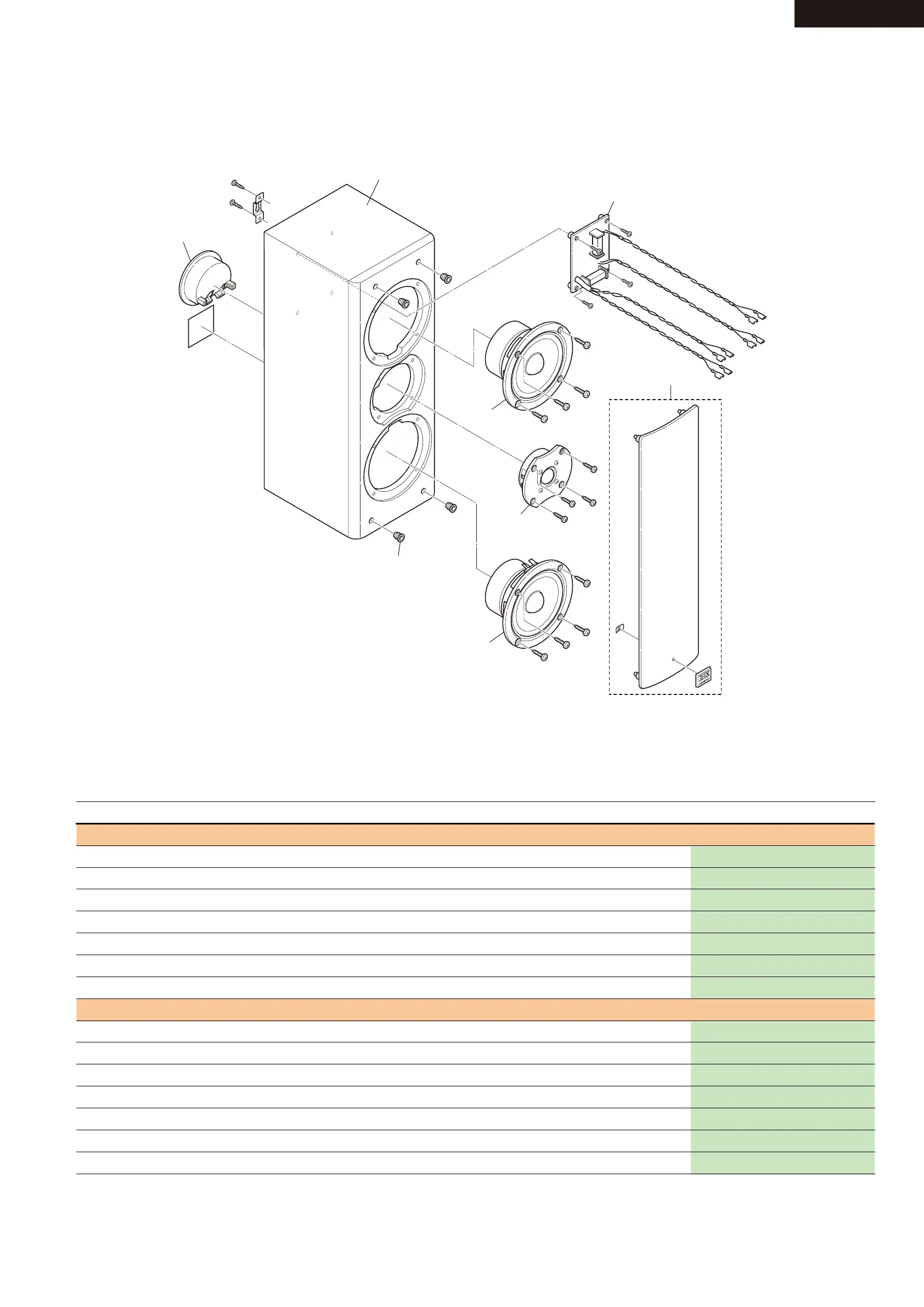

EXPLODED VIEWS - 3
SKF-980L / SKF-980R
SP04A/B
SP01A/B : SPK SYSTEM ASS’Y (ALL)
SP06
SP05
SP02
x 4 pcs.
SP06
SP07
SP03
Lch
TERMINAL :
White / Black
Rch
TERMINAL :
Red / Black
INPUT
(Terminal)
WOOFER
WOOFER
TWEETER
R E F. N O . P AR T N AM E D E S C R IP T IO N Q 'T Y P AR T N O . (SN )
S K F-980L(B )
SP01A SPK SYSTEM ASSY SKF-990FL(B)MDC WITH SPEC LABEL 1 000-SKF990FLBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKF-960(B) with Grille Cloth and Logo 1 D201-F96001B-50
SP04A TERMINAL H8107B BLK/WHITE 1 332-H8107B-42
SP05 CROSSOVER SKF/C-940 1 311-SKF940-00
SP06 Woofer (ONKYO) OAE(JITRA) 2 W1277C
SP07 Tweeter (ONKYO) OAE(JITRA) 1 TW3208B
S K F-980R (B )
SP01B SPK SYSTEM ASSY SKF-990FR(B)MDC WITH SPEC LABEL 1 000-SKF990FRBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKF-960(B) with Grille Cloth and Logo SKF-960(B) 1 D201-F96001B-50
SP04B TERMINAL H8107B BLK/RED 1 332-H8107B-02
SP05 CROSSOVER SKF/C-940 1 311-SKF940-00
SP06 Woofer (ONKYO) OAE(JITRA) 2 W1277C
SP07 Tweeter (ONKYO) OAE(JITRA) 1 TW3208B
