Connections
For safety considerations, turn off all other system com-
ponents before you connect or disconnect any compo-
nent and plug the power cable for the last.
When using the SKW-204 in conjunction with an AV
amplifier or receiver that features surround capability,
connect the SKW-204 LINE INPUT to SUBWOOFER
PREOUT jack using the supplied pin connector cable.
Subwoofer effects
Adding a subwoofer to your speaker system expands the
bandwidth of the bass range. However, if the sub-
woofer’s reproduction bandwidth or sound output level
is improperly adjusted, the overall performance may
decrease, as shown in the graphs below.

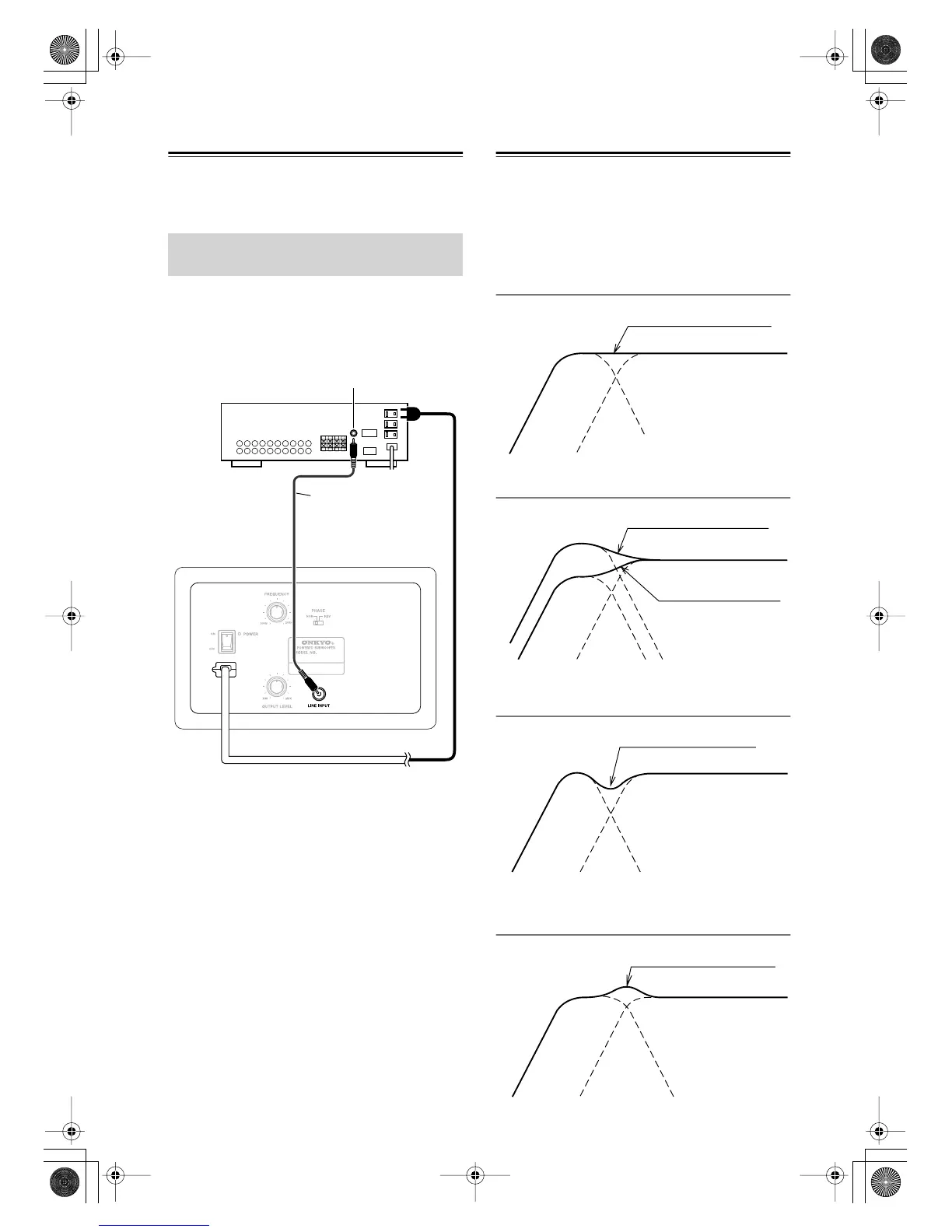

When the subwoofer’s reproduction bandwidth
is correct
When the subwoofer’s output level is incorrect
When the subwoofer’s reproduction bandwidth
is far from the speaker’s bandwidth
When the subwoofer’s reproduction bandwidth
is close to the speaker’s bandwidth
Using the SKW-204 with an AV
amplifier
SKW-204
SUBWOOFER
PREOUT
(Supplied)
Overall characteristics
Speaker characteristics
Subwoofer characteristics
Output level is too high
Output level is too low
Curve is sunken
Curve is raised
SKW204En Page 6 Monday, March 20, 2006 9:22 AM

Onkyo SKW-204 Specifications

General

Type	Home theatre speakers
Dimensions (WxDxH)	275 x 473 x 428 mm
Power requirements	AC 230-240v, 50 Hz
Subwoofer frequency range	25 - 200 Hz
Woofer diameter	250 mm
Audio output channels	1.0 channels
Product color	Black
Remotely operated	No

Weight and Dimensions

Weight	11800 g
