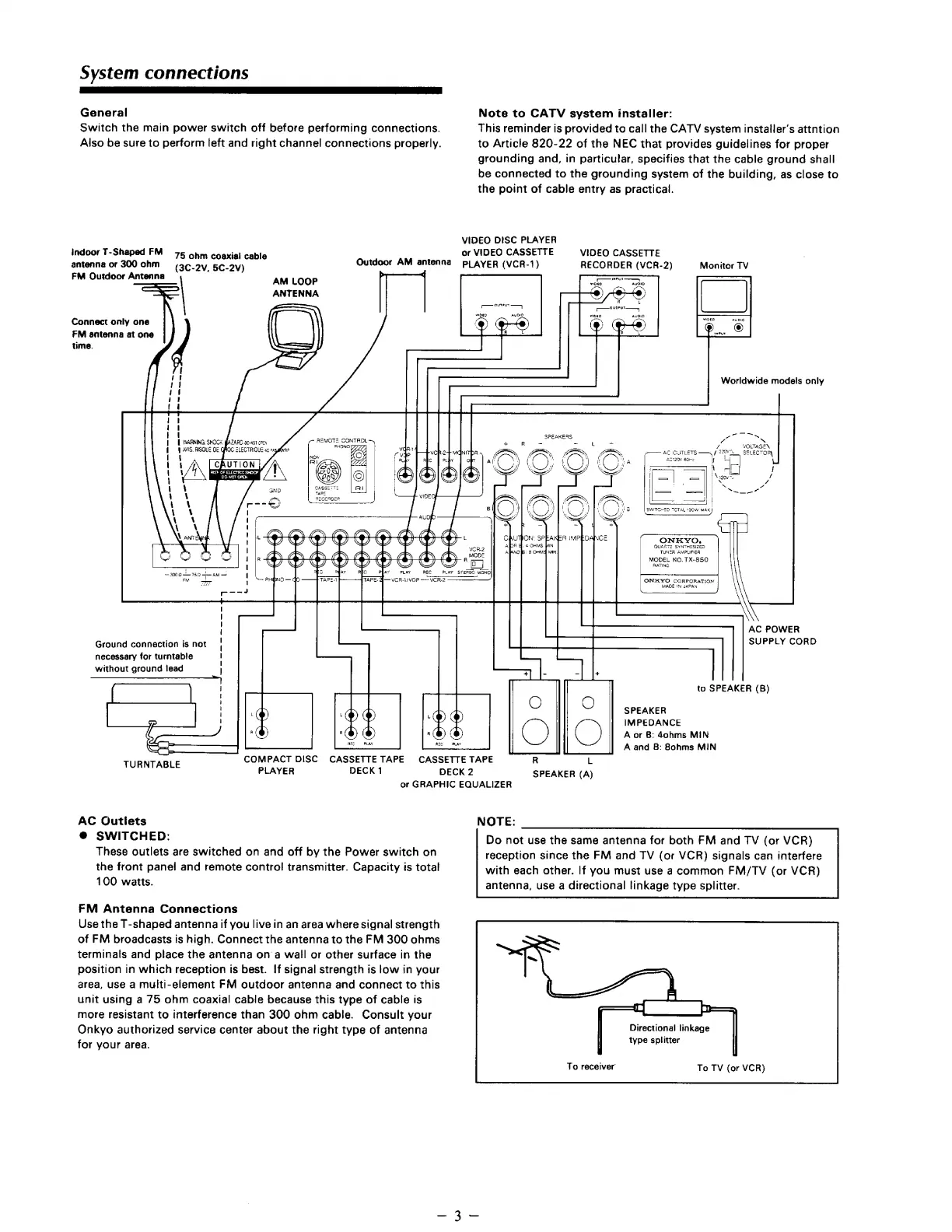

System connections
ee
General
Switch the main power switch off before performing connections.
Also be sure to perform left and right channel connections properly.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attntion
to Article 820-22 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building, as close to
the point of cable entry as practical.
VIDEO DISC PLAYER
Indoor
T-Shaped
FM
75
ohm
coaxial
cable
or VIDEO CASSETTE
VIDEO CASSETTE
antenna
or
300
ohm
(3C-2V,
5C-2V)
Outdoor
AM
antenna
PLAYER
(VCR-1)
RECORDER
(VCR-2)
Monitor
TV
FM
Outdoor
Antenna
AM
LOOP
.
4
—— ANTENNA
Connect
only
one
A
3S
FM antenna at one
time.
s
—<— wa ee em oe ee
AEMOTS CONTAOL
| WARNING: SHOCK JAZARD 00 nor o224
Worldwide models only
_ _~
ca
™~,
VOLTAGE
1 AVIS. RISQUE De Gf dnizpa EN fem, GO ~~ AC OUTLETS (222 SELECTOR,
FOO OG Cy (2) i}
RIS? OF ELECTRIC SHOE eS LBS eet Ses eee le? | — | Vo = /
Seed? P Need | =| = eee ,
J— ea||| “~-_-*
VIDEO
Pm
(ES
fs
|
|
AUDIO a te Set "ree ee
© ® ; YORD el ed “ Rimppoanes QUAATZ SYNTHESIZED
: : @) eat ABAOB: 3 OAM MIN] MODEL NO. TX-850
—3002-- 730+ am PLAY STEREC MONO
FM ope TAPE. TAPE: A—VCRi/v0P VERA
= a
I
! i
AC POWER
Ground connection is not | «Sd SUPPLY CORD
necessary for turntable
without ground lead | = |. | dy
a |
I
|
1
SPEAKER
|
|, | > ¢ o¢ MPeOANCE
C ©) (@) (6) (6) Aor B: 4ohms MIN
ae eS A and B: 8ohms MIN
COMPACT DISC CASSETTE TAPE CASSETTE TAPE R L
TURNTABLE
or GRAPHIC EQUALIZER
AC Qutlets NOTE:
© SWITCHED: Do not use the same antenna for both FM and TV (or VCR)
These outlets are switched on and off by the Power switch on
the front panel and remote control transmitter. Capacity is total
100 watts.
FM Antenna Connections
Use the T-shaped antenna if you live in an area where signal strength
of FM broadcasts is high. Connect the antenna to the FM 300 ohms
terminals and place the antenna on a wall or other surface in the
position in which reception is best. !f signal strength is low in your
area, use a multi-element FM outdoor antenna and connect to this
unit using a 75 ohm coaxial cable because this type of cable is
more resistant to interference than 300 ohm cable. Consult your
Onkyo authorized service center about the right type of antenna
for your area.
reception since the FM and TV (or VCR) signals can interfere
with each other. If you must use a common FM/TV (or VCR)
antenna, use a directional linkage type splitter.
Directional linkage
type splitter
To receiver
To TV (or VCR)
