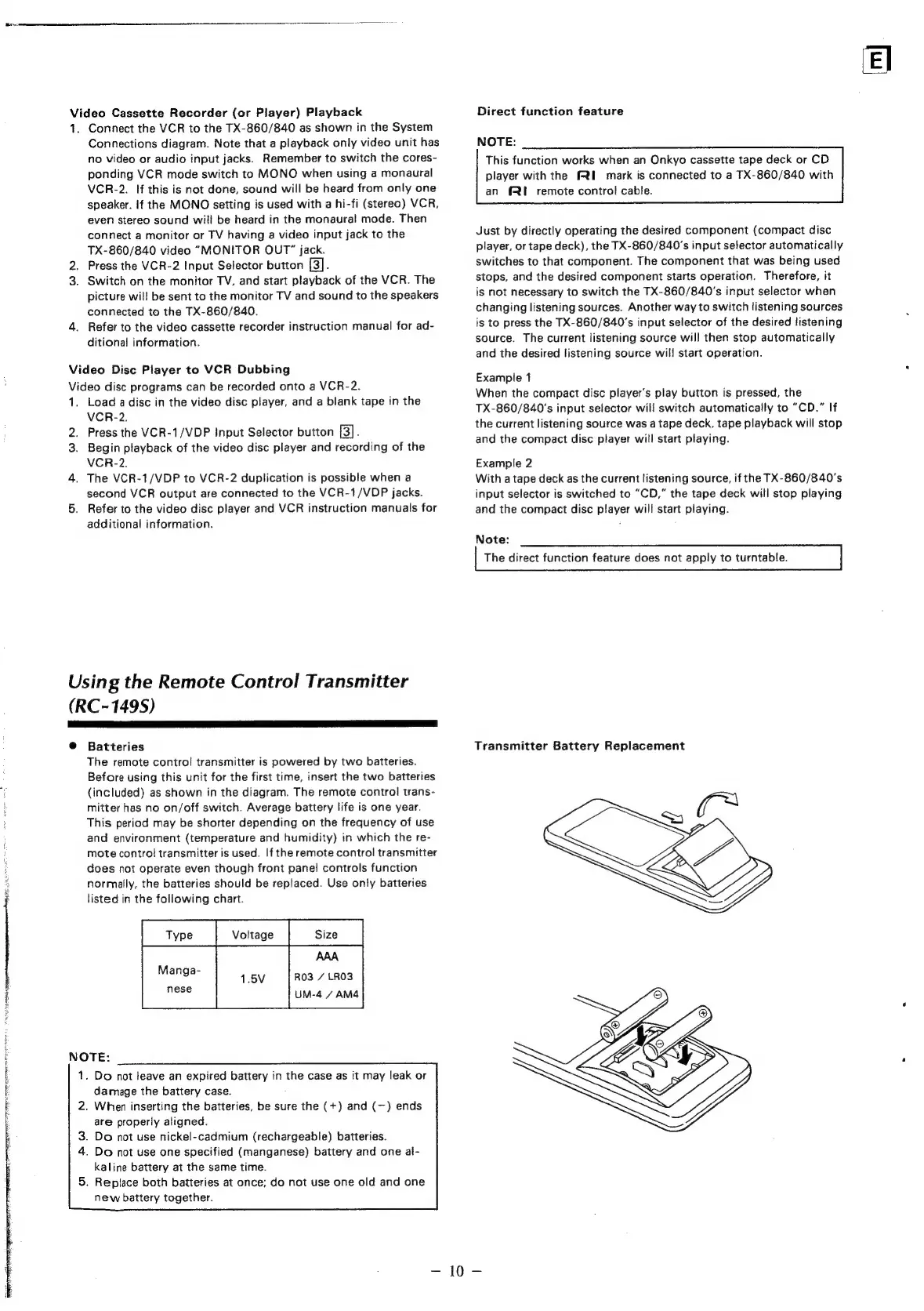

Video Cassette Recorder (or Player) Playback
1. Connect the VCR to the TX-860/840 as shown in the System
Connections diagram. Note that a playback only video unit has
no video or audio input jacks. Remember to switch the cores-
ponding VCR mode switch to MONO when using a monaural
VCR-2. If this is not done, sound will be heard from only one
speaker. If the MONO setting is used with a hi-fi (stereo) VCR,
even stereo sound will be heard in the monaural mode. Then
connect a monitor or TV having a video input jack to the
TX-860/840 video “MONITOR OUT" jack.
2. Press the VCR-2 Input Selector button [3].
3. Switch on the monitor TV, and start playback of the VCR. The
picture will be sent to the monitor TV and sound to the speakers
connected to the TX-860/840.
4. Refer to the video cassette recorder instruction manual for ad-
ditional information.
Video Disc Player to VCR Dubbing
Video disc programs can be recorded onto a VCR-2.
1. Load a disc in the video disc player, and a blank tape in the
VCR-2.
2. Press the VCR-1/VDP input Selector button [3].
3. Begin playback of the video disc player and recording of the
VCR-2.
4. The VCR-1/VDP to VCR-2 duplication is possible when a
second VCR output are connected to the VCR-1/VDP jacks.
5. Refer to the video disc player and VCR instruction manuals for
additional information.
Using the Remote Control Transmitter
(RC-149S)
aS LE
® Batteries
The remote control transmitter is powered by two batteries.
Before using this unit for the first time, insert the two batteries
(included) as shown in the diagram. The remote control trans-
mitter has no on/off switch. Average battery life is one year.
This period may be shorter depending on the frequency of use
and environment (temperature and humidity) in which the re-
mote control transmitter is used. If the remote contro! transmitter
does not operate even though front panel controls function
normally, the batteries should be replaced. Use only batteries
listed in the following chart.
RO3 / LRO3
UM-4 7 AM4
. Do not leave an expired battery in the case as it may leak or
damage the battery case. é
. When inserting the batteries, be sure the (+) and (—) ends
are properly aligned.
. Do not use nickel-cadmium (rechargeable) batteries.
. Do not use one specified (manganese) battery and one al-
kaline battery at the same time.
. Replace both batteries at once; do not use one old and one
new battery together.
Direct function feature
NOTE:
This function works when an Onkyo cassette tape deck or CD
player with the FRI mark is connected to a TX-860/840 with
an fRE remote contro! cable.
Just by directly operating the desired component (compact disc
player, or tape deck), the TX-860/840’s input selector automatically
switches to that component. The component that was being used
stops, and the desired component starts operation. Therefore, it
is not necessary to switch the TX-860/840’s input selector when
changing listening sources. Another way to switch listening sources
is to press the TX-860/840’s input selector of the desired listening
source. The current listening source will then stop automatically
and the desired listening source will start operation.
Example 1
When the compact disc player's play button is pressed, the
TX-860/840's input selector will switch automatically to “CD.” If
the current listening source was a tape deck, tape playback will stop
and the compact disc player will start playing.
Example 2
With a tape deck as the current listening source, if the TX-860/840's
input selector is switched to “CD,” the tape deck will stop playing
and the compact disc player will start playing.
Note:
The direct function feature does not apply to turntable.
Transmitter Battery Replacement
