Speaker Connections and "Speaker Setup" Settings

Connections

 (Note) Speaker Impedance

Connect speakers with an impedance of 4 Ω to 16 Ω. If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker

Impedance" to "4ohms" for "Speaker Setup" in the Initial Setup section ( p180). When setting "Speaker Impedance" from the Setup menu, press on the remote

controller, and set "2. Speaker" - "Conguration" - "Speaker Impedance" ( p158) to "4ohms".

 Connect the Speaker Cables

1/2˝

(12 mm)

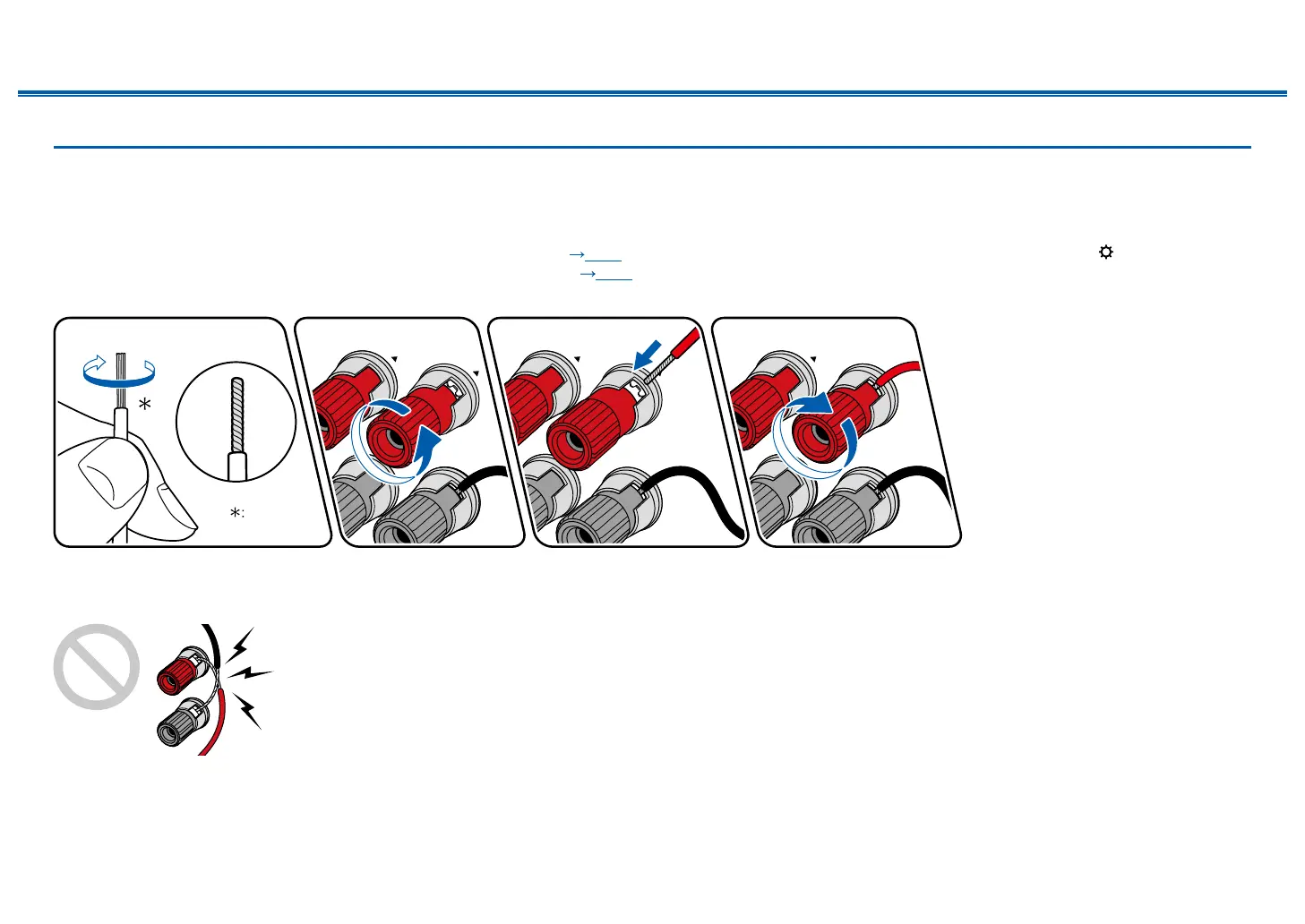

Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound

will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal

when connecting. If the exposed wires touch the rear panel, or the + side and – side wires touch each other, a malfunction may occur.
