Onkyo TX-SV434 Instruction Manual

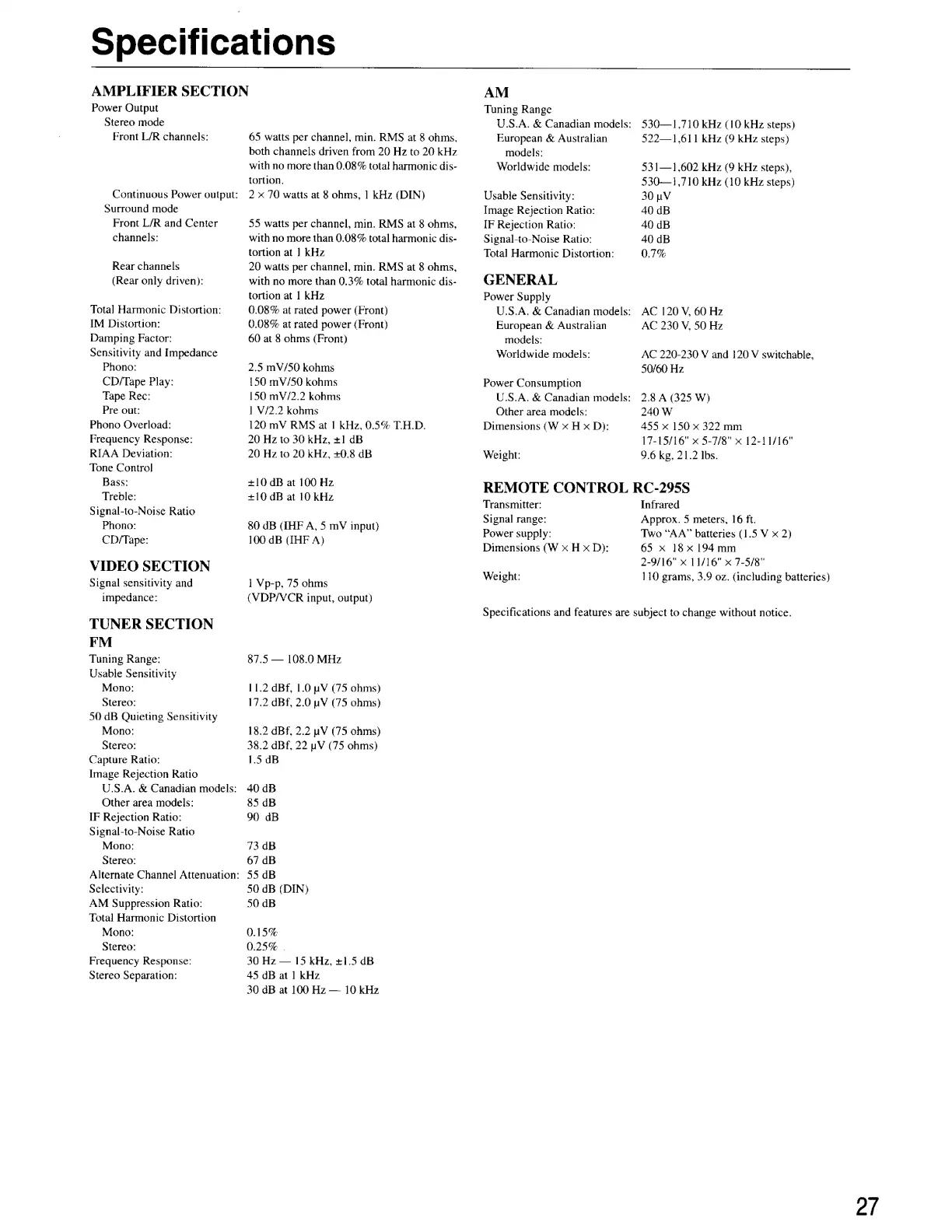

Specifications
AMPLIFIER SECTION
Power Output
Stereo mode
Front L/R channels:
Continuous Power output:
Surround mode
Front L/R and Center
channels:
Rear channels
(Rear only driven):
Total Harmonic Distortion:
IM Distortion:
Damping Factor:
Sensitivity and Impedance
Phono:
CD/Tape Play:
Tape Rec:
Pre out:
Phono Overload:
Frequency Response:
RIAA Deviation:
Tone Control
Bass:
Treble:
Signal-to-Noise Ratio
Phono:
CD/Tape:
VIDEO SECTION
Signal sensitivity and
impedance:
TUNER SECTION
FM
Tuning Range:
Usable Sensitivity
Mono:
Stereo:
50 dB Quieting Sensitivity
Mono:
Stereo:
Capture Ratio:
Image Rejection Ratio
U.S.A. & Canadian models:
Other area models:
IF Rejection Ratio:
Signal-to-Noise Ratio
Mono:
Stereo:
Alternate Channel Attenuation:
Selectivity:
AM Suppression Ratio:
Total Harmonic Distortion
Mono:
Stereo:
Frequency Response:
Stereo Separation:
65 watts per channel, min. RMS at 8 ohms,
both channels driven from 20 Hz to 20 kHz
with no more than 0.08% total harmonic dis-
tortion.
2x 70 watts at 8 ohms, | kHz (DIN)
55 watts per channel, min. RMS at 8 ohms,
with no more than 0.08% total harmonic dis-
tortion at | kHz
20 watts per channel, min. RMS at 8 ohms,
with no more than 0,3% total harmonic dis-
tortion at 1 kHz
0.08% at rated power (Front)
0.08% at rated power (Front)
60 at 8 ohms (Front)
2.5 mV/50 kohms
{50 mV/50 kohms
150 m¥V/2.2 kohms
| V/2.2 kohms
120 mV RMS at | kHz, 0.5% T.H.D.
20 Hz to 30 kHz, +1 dB
20 Hz to 20 kHz, +0.8 dB
+10 dB at 100 Hz
+10 dB at 10 kHz
80 dB (THF A, 5 mV input)
100 dB (IHF A)
] Vp-p, 75 ohms
(VDP/VCR input, output)
87.5 — 108.0 MHz
11.2 dBf, 1.0 pV (75 ohms)
17.2 dBf, 2.0 uV (75 ohms)
18.2 dBf, 2.2 wV (75 ohms)
38.2 dBf, 22 uV (75 ohms)
1.5 dB
40 dB
85 dB
90 dB
73 dB
67 dB
55 dB
50 dB (DIN)
50 dB
0.15%
0.25% .
30 Hz — 15 kHz, +1.5 dB
45 dB at 1 kHz
30 dB at 100 Hz — 10 kHz
AM
Tuning Range
U.S.A. & Canadian models:
European & Australian
models:
Worldwide models:
Usable Sensitivity:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to-Noise Ratio:
Total Harmonic Distortion:
GENERAL
Power Supply
U.S.A. & Canadian models:
European & Australian
models:
Worldwide models:
Power Consumption
U.S.A. & Canadian models:
Other area models:
Dimensions (W x H x D):
Weight:
5$30—1,710 kHz (10 kHz steps)
522— 1,611 kHz (9 kHz steps)
531—1,602 kHz (9 kHz steps),
530—1,710 kHz (10 kHz steps)
30 uv
40 dB
40 dB
40 dB
0.7%
AC 120 V, 60 Hz
AC 230 V, 50 Hz
AC 220-230 V and 120 V switchable,
50/60 Hz
2.8 A (325 W)
240 W
455 x 150 x 322 mm
17-15/16" x 5-7/8" = 12-11/16"
9.6 kg, 21.2 Ibs.
REMOTE CONTROL RC-2958
Transmitter:
Signal range:
Power supply:
Dimensions (W x H x D):
Weight:
Infrared
Approx. 5 meters, 16 ft.
Two “AA” batteries (1.5 V x 2)
65 x 18x 194mm
2-9/16" x 11/16" x 7-5/8"
110 grams, 3.9 oz. {including batteries)
Specifications and features are subject to change without notice.
2/

Onkyo TX-SV434 Specifications

Power Output

front L/R channels power output	65 watts per channel
continuous power output	2x 70 watts at 8 ohms
surround mode front L/R and center channels power output	55 watts per channel

Power Supply

U.S.A. & Canadian models power supply	AC 120 V, 60 Hz
European & Australian models power supply	AC 230 V, 50 Hz
worldwide models power supply	AC 220-230 V and 120 V switchable, 50/60 Hz

Weight and Dimensions

dimensions (W x H x D)	455 x 150 x 322 mm
weight	9.6 kg
remote control dimensions (W x H x D)	65 x 18 x 194 mm
