Orbit Clear Comfort 83501 User Manual

TROUBLESHOOTING
Problem: No heating/cooling system activation
Solution:
1. Verify Mode Switch is in proper Heat or Cool Mode.
2. Replace baeries if necessary. (see Replacing the Baeries section).
3. Check “Set” temperature. Set temperature should read above room
temperature in Heat Mode and below room temperature in Cool Mode.
4. Verify Heating/Cooling power switch isn’t off.
5. Verify that the circuit breaker isn’t tripped.
6. Verify that the furnace door is closed securely.
7. Check for loose or crossed wiring in the thermostat wiring terminal.
8. Verify that copper wires are not exposed and touching other wires.
Problem: No Fan runs continuously
Solution:
1. Let the thermostat sit (do not touch) for 30 minutes to allow
the temperature to stabilize.
2. Verify that the G wire in thermostat wiring terminal
is connected properly.
3. Verify Heating/Cooling power switch isn’t off.
4. Verify that the circuit breaker isn’t tripped.
5. Verify that the furnace door is closed securely.
6. Check for loose or crossed wiring in the thermostat wiring terminal.
7. Verify that copper wires are not exposed and touching other wires.
Problem: Incorrect room temperature
Solution:
1. Let the thermostat sit (do not touch) for 30 minutes to
allow the temperature to stabilize.
THERMOSTATCARE
To prevent damage to the clear thermostat lens, clean with mild soap and
water only, and use a so coon cloth. DO NOT use paper towels or other
abrasive cloths. DO NOT spray any liquid directly onto the thermostat.
THERMOSTATFIGMINIMUMOFFTIMEMU
Off
RESET
Arrow down
Arrow up
THERMOSTATFIGMINIMUMOFFTIMEMU
Off
RESET
Arrow down
Arrow up
THERMOSTATFIGMINIMUMOFFTIMEMU
Off
RESET
Arrow down
Arrow up
Off
Down Arrow

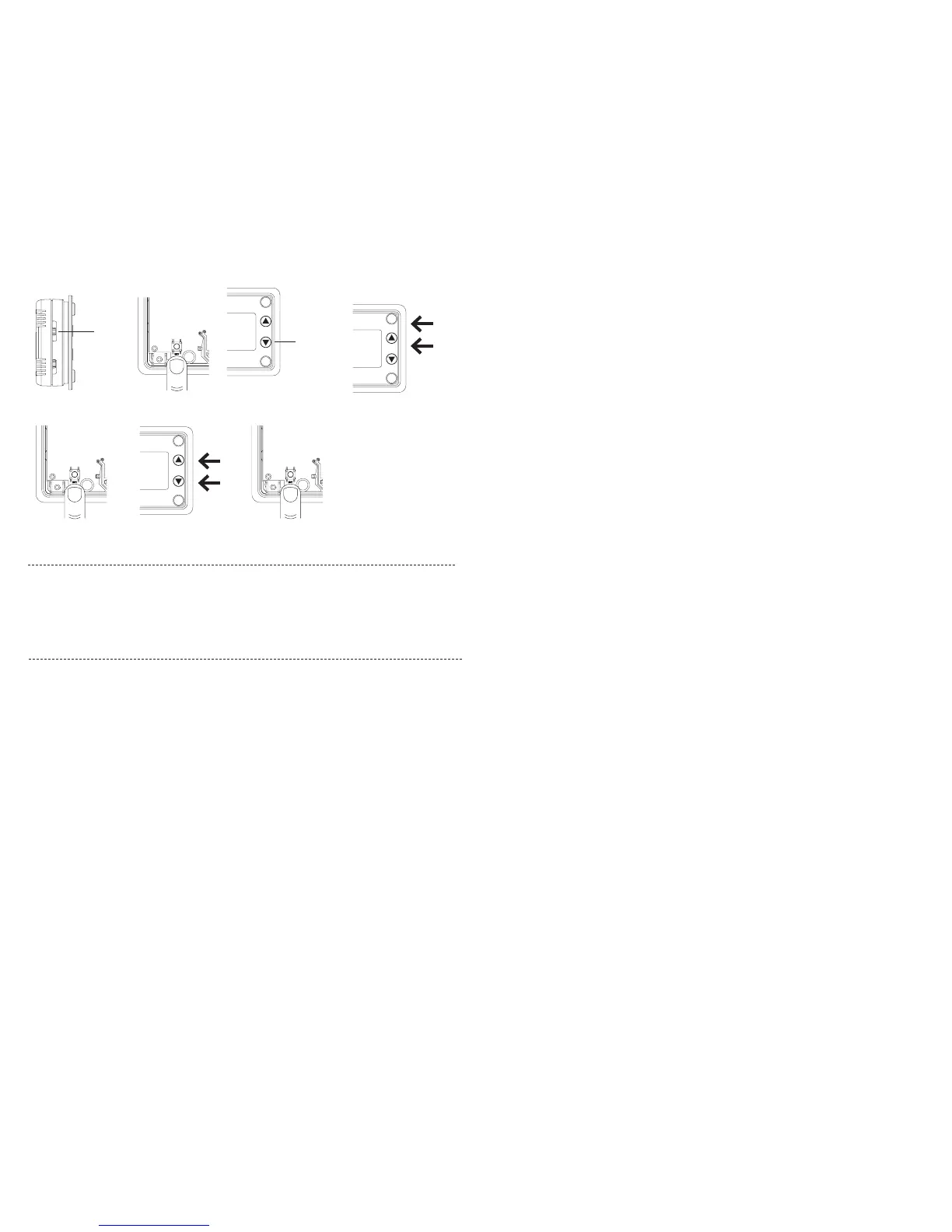

Step 3 Step 4 Step 5
Step 6
Step 1 Step 2
or
or
• Slide the Mode Switch to the Off position (Step 1). While holding the
Reset Buon (on the back of the thermostat body), press the Down
Arrow Buon until the Offset Indicator appears. Release the Reset
Buon (Step 2). (Do not hold the Reset Buon for more than five
seconds.) Press the Reset Buon again (Step 3). (The Offset seing
will not be lost.) Use the Up or Down Arrow Buons to select the heat
system being used (Step 4). If using a Heat Pump, select "HP." If using
a furnace, select "F." Once the heating system type has been selected,
press the Reset Buon again to select desired cycle period (Step 5).
If heat pump ("HP") has been selected, use the Up and Down Arrow
Buons to toggle between 60, 20, and 12. If furnace ("F") has been
selected, use the Up and Down Arrow Buons to toggle between 60,
20, 12, and 6 (Step 6). The thermostat will accept the seing by pressing
the Reset Buon, by sliding the Mode Switch to Heat or Cool, or aer
10 seconds of no activity.
2. Check placement of the thermostat. Make sure it’s not
in an unusually dray or heated area.
3. Verify that the wall hole for wires is insulated properly.
4. Check Temperature Offset (see “Temperature Offset” section).
Problem: Not reaching set temperature
Solution:
1. Verify that the Mode Switch is in proper Heat or Cool Mode.
2. Verify that Heating/Cooling systems are working properly. (See No
Heating/Cooling System Activation in Troubleshooting section above.)
3. Check for loose or crossed wiring in the thermostat wiring terminal.
4. Check Temperature Offset (see “Temperature Offset” section).
5. Check placement of thermostat; make sure it’s not in an unusually
dray or heated area.
6. Verify that the wall hole for wires is insulated properly.
Problem: Wrong temperature scale displayed
Solution: See “Fahrenheit or Celsius Adjustment” section.
Problem: Display is blank/Low Baery Indicator on
Solution:
1. Replace baeries (see “Replacing the Baeries” section).
2. Check for loose or crossed wiring in thermostat wiring terminal.
Problem: Heat/cool system doesn’t respond immediately
Solution:
1. To protect your compressor, the thermostat default is to wait five
minutes before responding. For more information, see “Minimum Off
Time” section.
2. If the problem persists aer waiting five minutes, check baeries.
Replace if necessary (see “Replacing the Baeries” section).
Problem: Set Temperature is 10°F above (in Cooling Mode) or 10°F below
(in Heating Mode) desired temperature
Solution: Replace baeries. (see “Replacing the Baeries” section).
Problem: System turns on too frequently
Solution: The Orbit™ Clear Comfort™ thermostat uses smart logic to turn
once every cycle period to maximize comfort and temperature stability.
To adjust the cycle period, see the “Minimum Cycle Period Adjustment”
section under “Additional Thermostat Seings.”
