Orion Xtreme Series User Manual

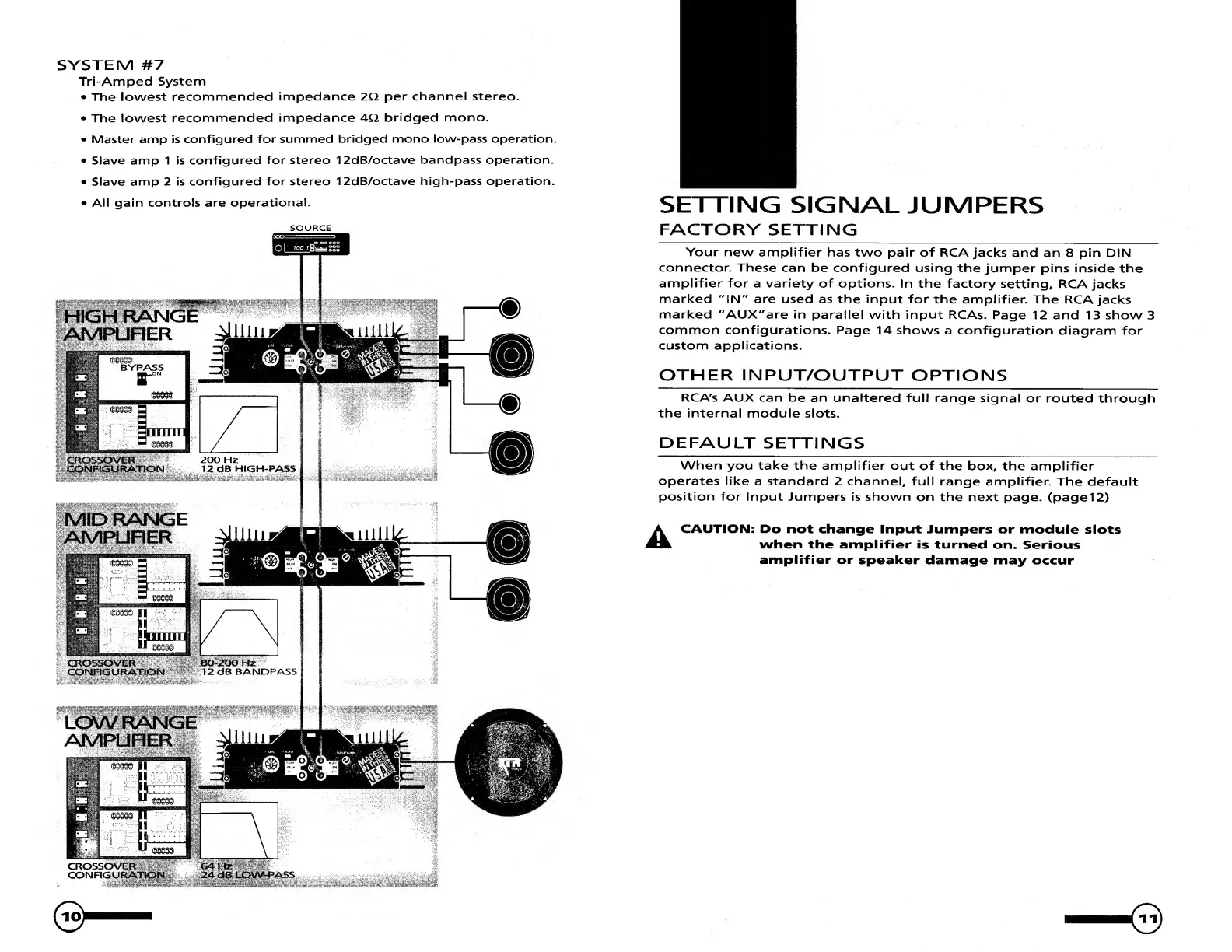

SYSTEM #7
Tri-Amped System
• The lowest recommended impedance 2Q per channel stereo.
• The lowest recommended impedance 4Q bridged mono.
• Master amp is configured for summed bridged mono low-pass operation.
• Slave amp 1 is configured for stereo 12dB/octave bandpass operation.
• Slave amp 2 is configured for stereo 12dB/octave high-pass operation.
• All gain controls are operational.
AMRJRER
200 Hz
12 dB HJGH-PASS
MIDR/
Ampui
Aiiiiiiii:
SETTING SIGNAL JUMPERS
FACTORY SETTING
Your new amplifier has two pair of RCA jacks and an 8 pin DIN
connector. These can be configured using the Jumper pins inside the
amplifier for a variety of options. In the factory setting, RCA jacks
marked "IN" are used as the input for the amplifier. The RCA jacks
marked "AUX"are in parallel with input RCAs. Page 12 and 13 show 3
common configurations. Page 14 shows a configuration diagram for
custom applications.
OTHER INPUT/OUTPUT OPTIONS
RCA's AUX can be an unaltered full range signal or routed through
the internal module slots.
DEFAULT SETTINGS
When you take the amplifier out of the box, the amplifier
operates like a standard 2 channel, full range amplifier. The default
position for Input Jumpers is shown on the next page. (page12)
A CAUTION: Do not change Input Jumpers or module slots
when the amplifier is turned on. Serious
amplifier or speaker damage may occur
