cgm.3 system: medium voltage SF
6
gas-insulated
cubicles up to 38 kV according to IEEE and CSA standards
1.1.2. ekor.sas - acoustic grounding prevention alarm unit
The ekor.sas grounding prevention alarm is an acoustic
indicator which works in association with the grounding
shaft handle and the ekor.vpis voltage presence indicator.
Both operate within the same range. The alarm is activated
when there is voltage in the cubicle’s medium voltage
feeder and the lever is inserted in the grounding switch
shaft. A sound then warns the operator that if he performs
the operation, a short-circuit in the network might occur.
This unit is standard on cgm.3 system feeder functional
units and supplied to order in the rest of the functional
units.

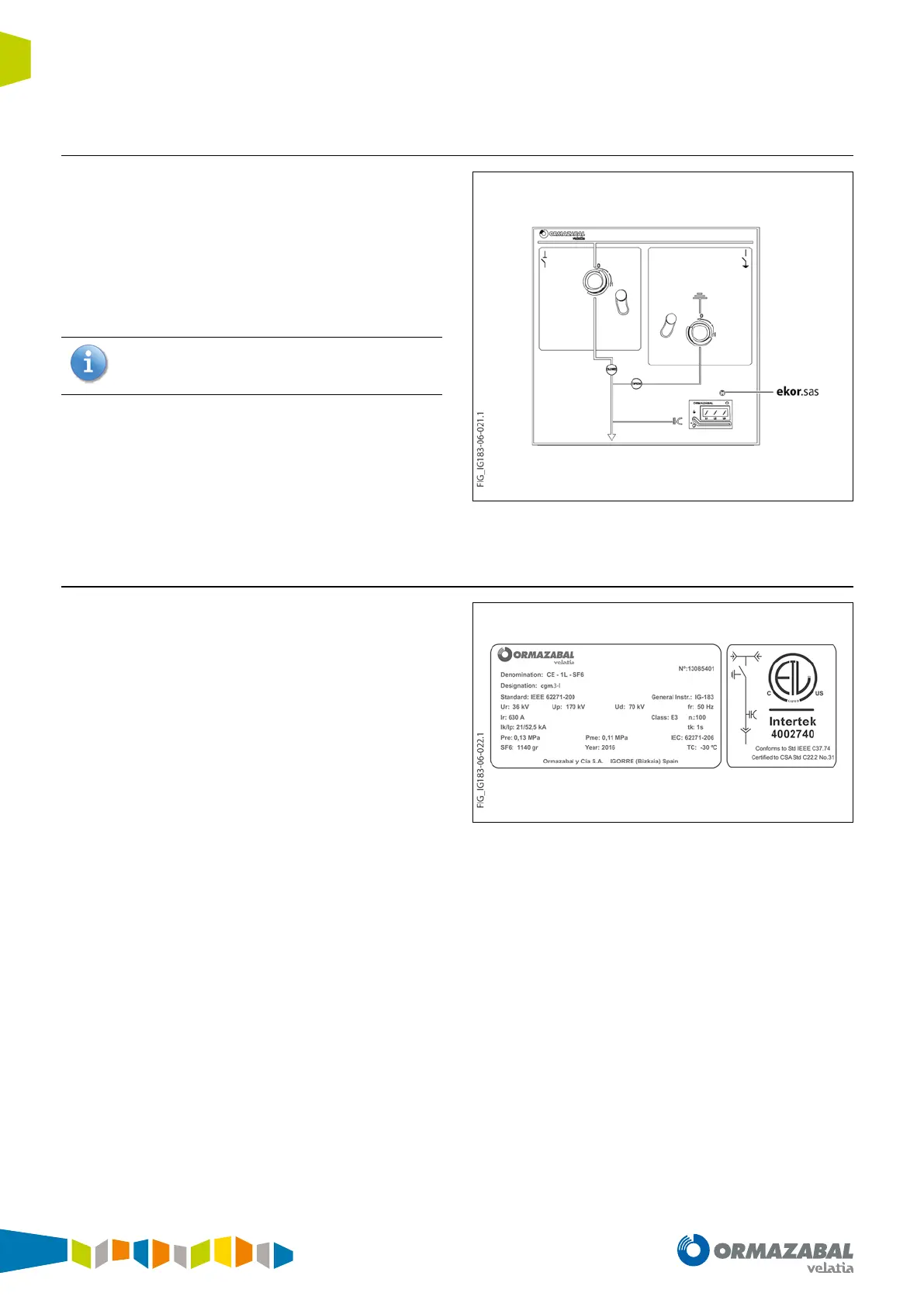

Figure 1.18. Location of ekor.sas unit
1.1.3. Nameplate
Every cubicle has a name plate indicating some of the
following values:
Figure 1.19. Example of nameplate
