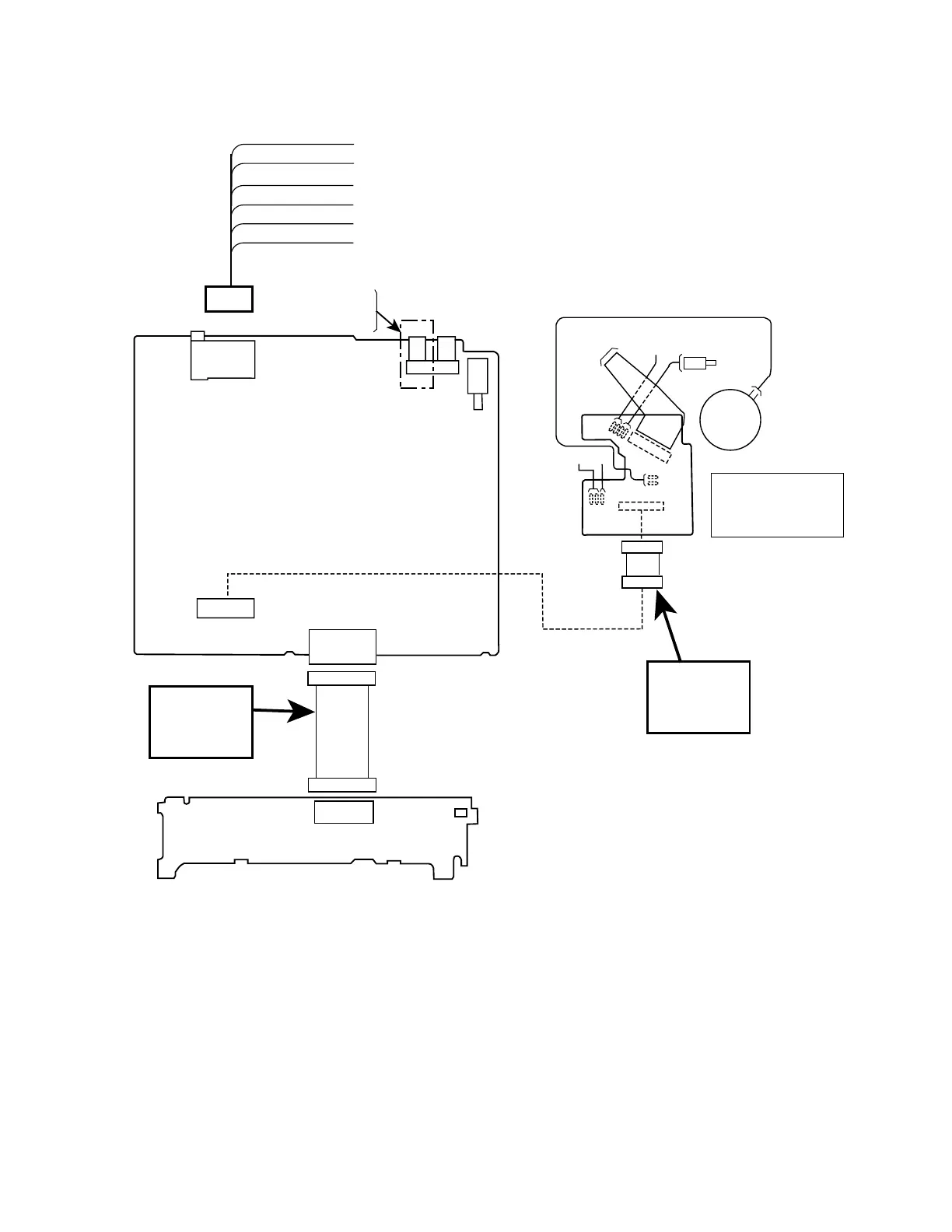

6 Wiring Connection Diagram
AT051
CN250
3 1
6 4
5
2
13 1
2
CN701
1
15
CN601
CN801
1
21
2
22
Extension
Connector
Jig Part No.
[YESFZS2074]
Extension
Connector
Jig Part No.
[YESFZS2076]
Preamp Out
(Front) (Rear)
Optical
Pic-Up
Ass'y
Main P.C.B
[7227-02-11]
CD Interface P.C.B
[3032-14-50]
(Bottom View)
Loading/Feed
Motor
Limit
SW
Display P.C.B
[7227-05-11]
(Bottom View)
1
2
15
14
CN901
22
21
2
1
SW2
SW1
Spindle
Motor
CN2
CN1
1
16
CQ-C1335U
CQ-C1335L
only
1
2
3
CN902
AUX
Power
Connector
Motor Antenna Relay Control
Power (ACC or IGN)
Battery(15A)
Ground
Rear Speakers
4
/
/
4
Front Speakers
