Panasonic CS-A7HKD Service Manual

18

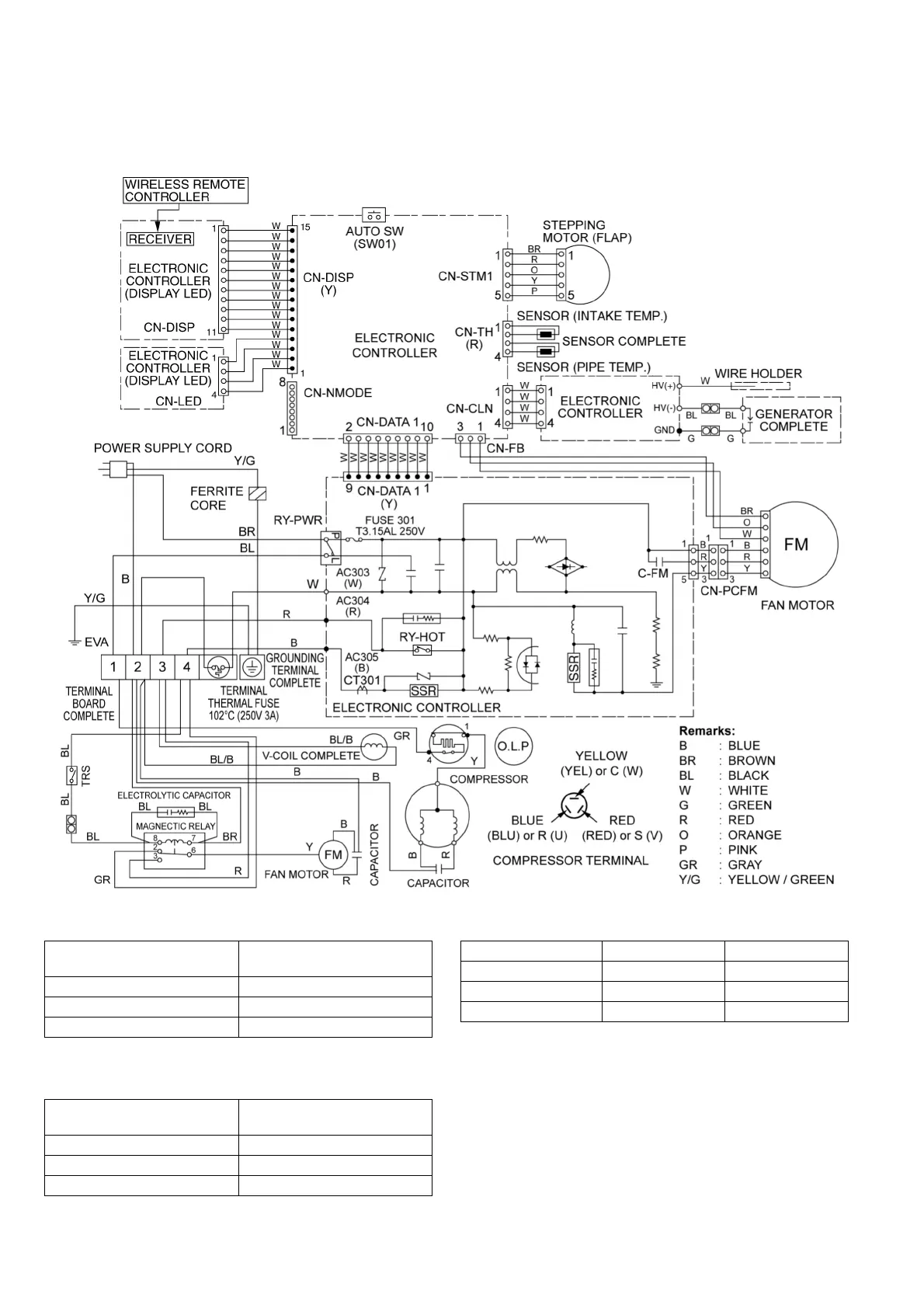

8 Wiring Connection Diagram
8.1. CS-A7HKD CU-A7HKD
CS-A9HKD CU-A9HKD
Resistance of Indoor Fan Motor Windings
Note: Resistance at 25°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
Note: Resistance at 25°C of ambient temperature.
Resistance of Compressor Windings
Note: Resistance at 20°C of ambient temperature.
MODEL CS-A7HK
CS-A9HK
CONNECTION CWA921373
BLUE-YELLOW 390.0 Ω
YELLOW-RED 394.0 Ω
MODEL CU-A7HK
CU-A9HK
CONNECTION CWA951526
BLUE-YELLOW 309 Ω
YELLOW-RED 210 Ω
MODEL CU-A7HK CU-A9HK
CONNECTION 2RS122D5BG02 2PS156D3BB02
C - R 5.193 Ω 3.501 Ω
C - S 5.557 Ω 3.405 Ω
