7-17

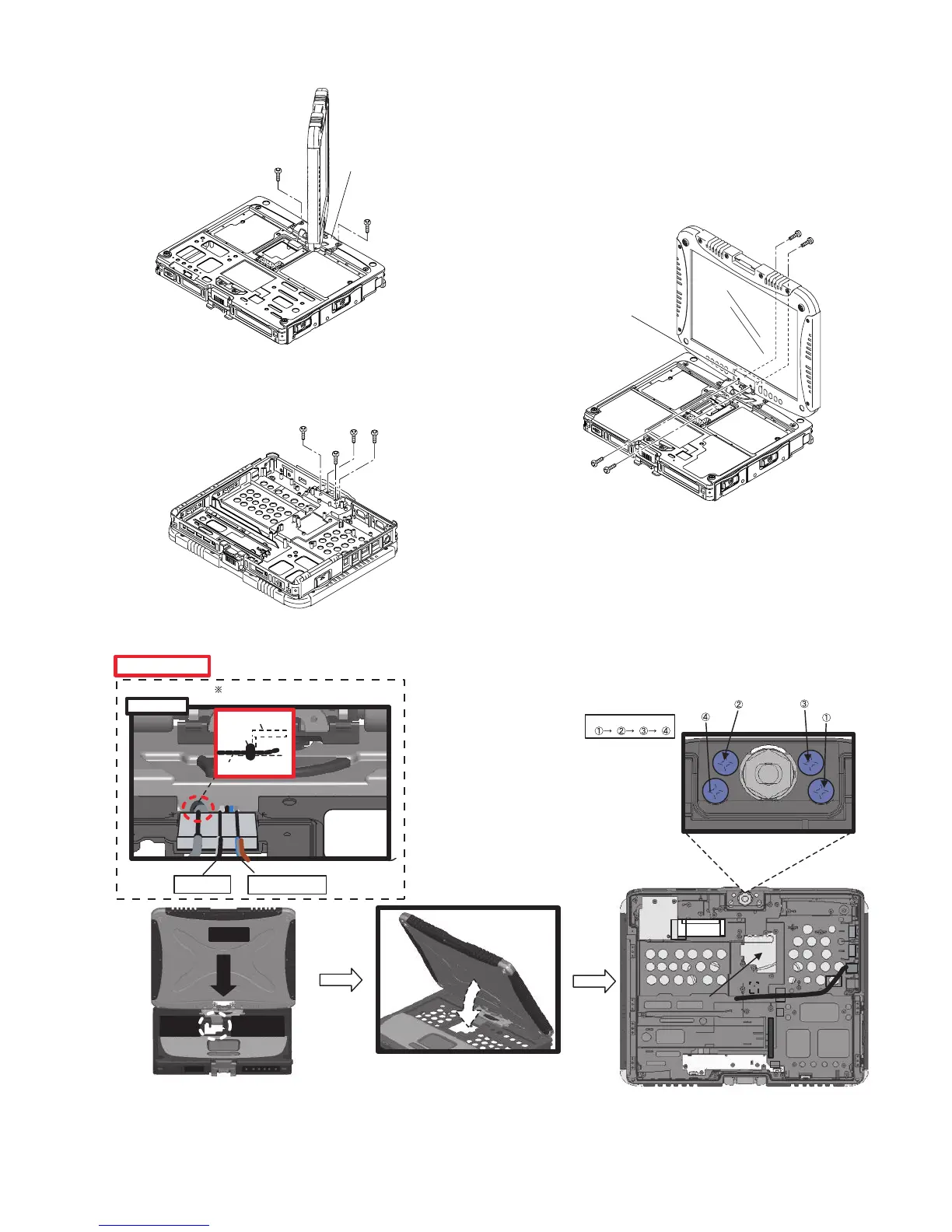

7.2.6. Setting the Display Unit
1. Fix the Display Unit using the 2 Screws <T>.
2. Close the Display Unit and turn the computer over, and
then fix the Display Unit using the 4 Screws <U>.
3. Turn the computer over and fix the LCD Hinge Cover
using the 2 Screws <S>.
4. Open the Display Unit and fix the LCD Hinge Cover using
the 2 Screws <S>.
Screws <S> : DFHE5025XA
Screws <T> : DRSB2+5FKL
Screws <U> : XYN4+J8FNL
! Assembly of Display Unit
<T>
<T>
Hinge Cover
<U>
<U>
<U>
<U>
<S>
<S>
LCD Hinge Cover
<S>
<S>
Screw<U>
Screw<U>
Screw<U>
Screw<U>
Pass all of the Cables into the KBD Hole.
white/black
blue/ glay/brown
Note
Avoid any stress on the Cable.
LCD UNIT
LCD Cable
Cable
Cushion
Hinge Cover
Close the LCD and
turn it over.
A
Detail of "A"
Top Case Assy
Take out the Cables.
< Order of fixing screw>
Safety Working
